Allen-Bradley
Guardmaster Safety Relay

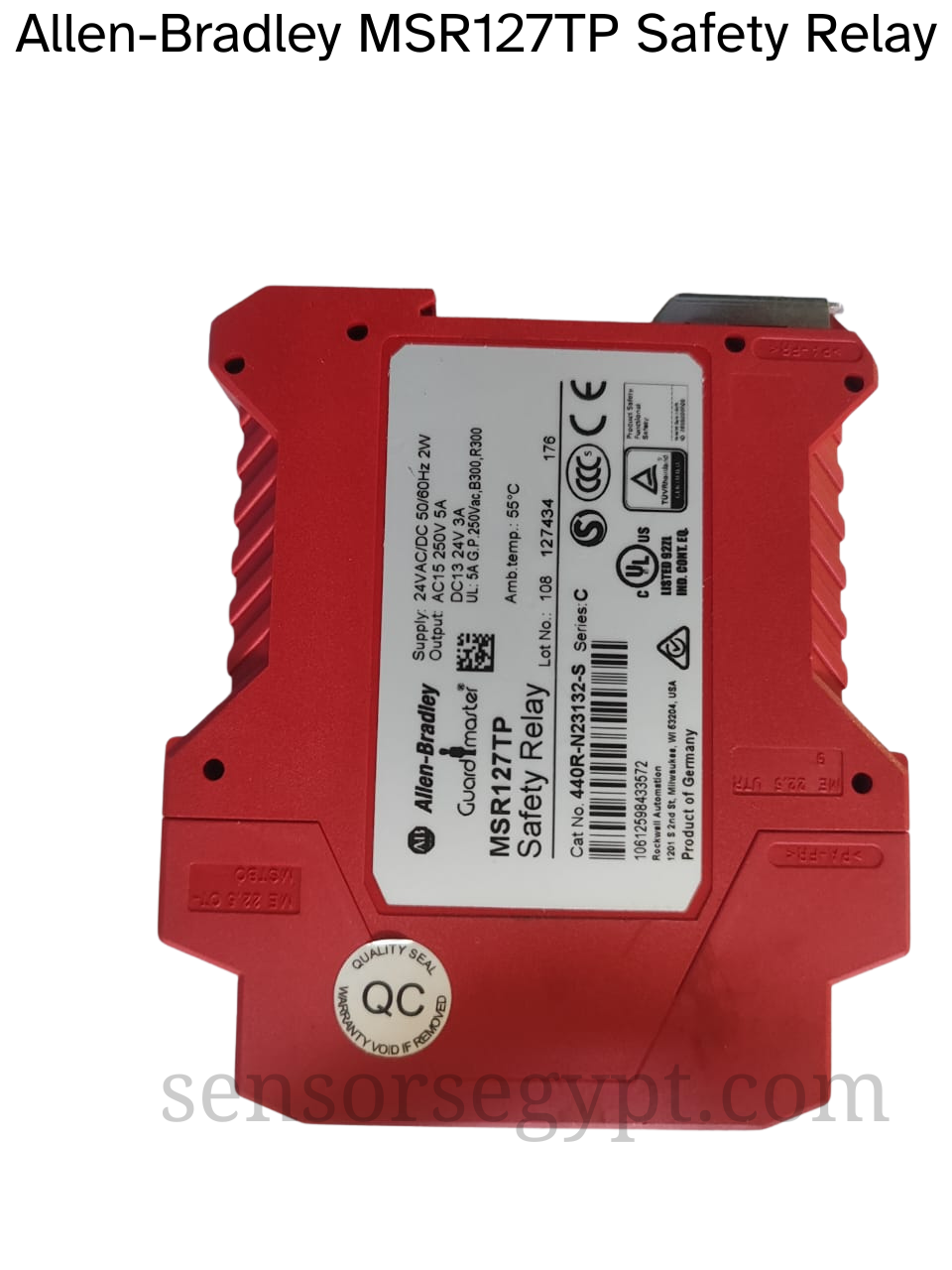

Model: MSR127TP Catalog Number: 440R-N23132-S
1. General Description
The MSR127TP is a versatile safety monitoring relay from the Allen-Bradley Guardmaster family. It is designed to monitor a variety of safety input devices, such as emergency-stop push buttons, safety gates, and light curtains. A key feature of this model is its inclusion of both immediate and time-delayed safety outputs. The delayed outputs are ideal for applications requiring a controlled stop, allowing machine motion to cease before safety guards can be opened.
This relay is suitable for applications up to Performance Level ‘e’ (PLe) according to ISO 13849-1 and Safety Integrity Level 3 (SIL 3) according to IEC 62061.
Key Features
- Dual Functionality: Provides both immediate and time-delayed safety outputs in a single unit.
- Versatile Inputs: Monitors dual-channel safety devices for shorts across contacts, shorts to power, and open circuits.
- Configurable Reset: Can be configured for either automatic/manual reset or monitored manual reset.
- Removable Terminals: Simplifies wiring and allows for easy replacement of the unit without disturbing the field wiring.
- LED Indicators: Provides clear status indication for power, input channels, and output status, aiding in diagnostics.
2. Technical Specifications
Power Supply
Inputs & Outputs
Contact Ratings (Outputs)
Environmental & Mechanical
