Slot-Type Photoelectric Sensor

Model: BX-L-N2N



1. General Description

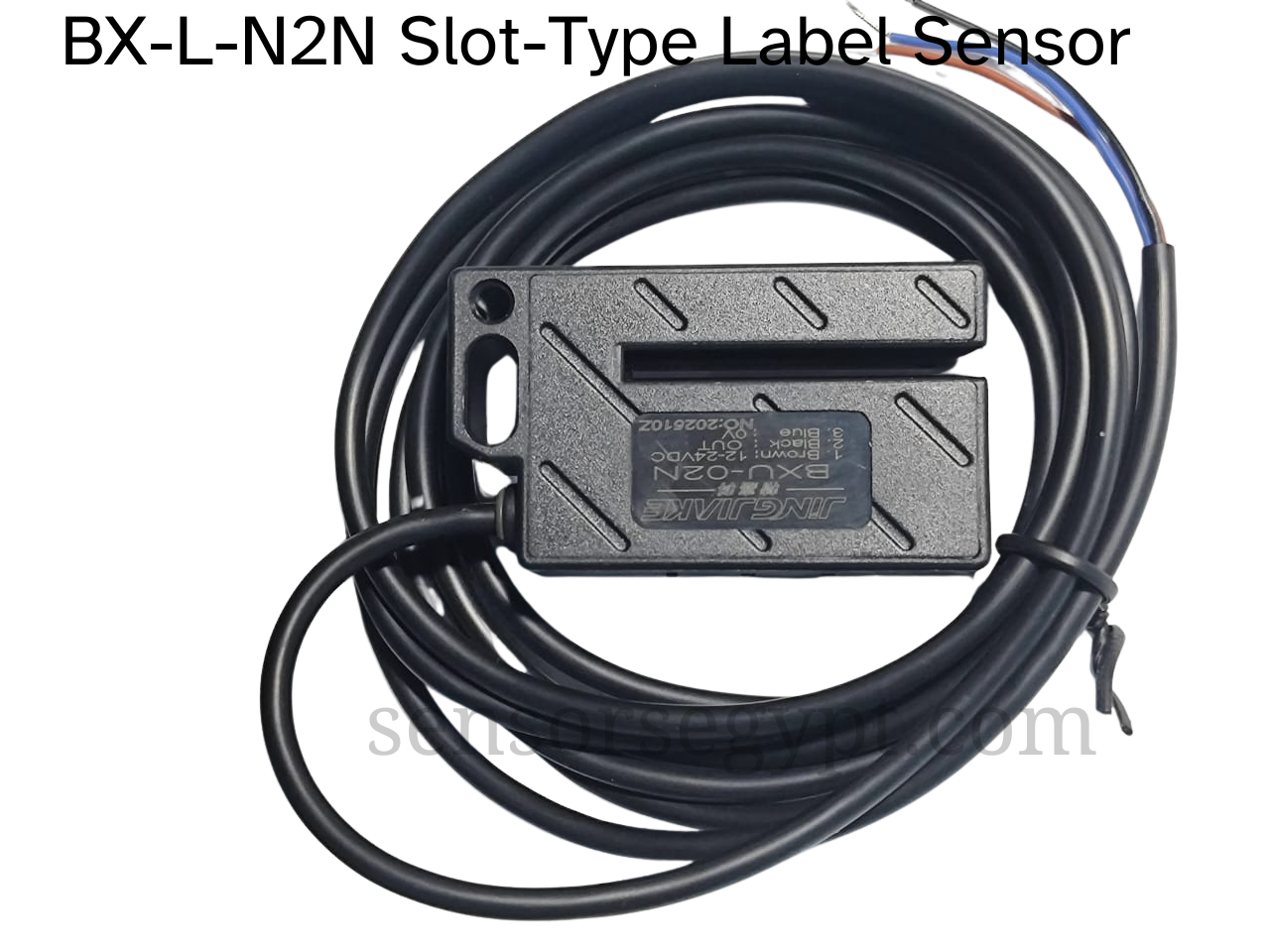

The BX-L-N2N is a compact, U-shaped (slot-type) photoelectric sensor. It integrates an infrared emitter and a receiver into a single housing, designed to reliably detect opaque objects that pass through the slot.

This model is a 3-wire sensor with a standard NPN Normally Open (NO) output, making it easy to integrate with most PLCs and control systems. Its design is ideal for applications like edge detection, object presence, hole detection, and gear tooth counting. It is also commonly used as a label sensor to detect gaps between labels on a roll.



Key Features 🎯



• Slot-Type Design: Emitter and receiver are pre-aligned for reliable, simple installation.
• Standard NPN Output: Provides a 3-wire, NPN Normally Open (sinking) output.
• Standard Voltage: Operates on a common 12 to 24 VDC supply.
• LED Indicator: Includes an integrated LED for a clear visual indication of the output status.
• Reliable Detection: Unaffected by the target’s color or surface gloss.

---



2. Technical Specifications



Parameter	Value
Model	BX-L-N2N
Sensing Type	Through-beam (Slotted)
Supply Voltage	12 … 24 VDC
Output Type	NPN (Sinking)
Output Function	Normally Open (NO)
Output Current	$\leq$ 100 mA (Typical)
Connection	Pre-cabled, 3-wire
Protection	Short-circuit, Reverse Polarity (Typical)
Date of Mfg.	02-2023 (as per label)

---



3. Wiring



The label provides the wire color functions for a standard 3-wire NPN output. The load (e.g., PLC input, relay) is connected between the output wire (Black) and the positive (+) supply.

• Brown: V+ (12 – 24V DC)
• Blue: 0V (GND)
• Black: NPN Output (Signal)
