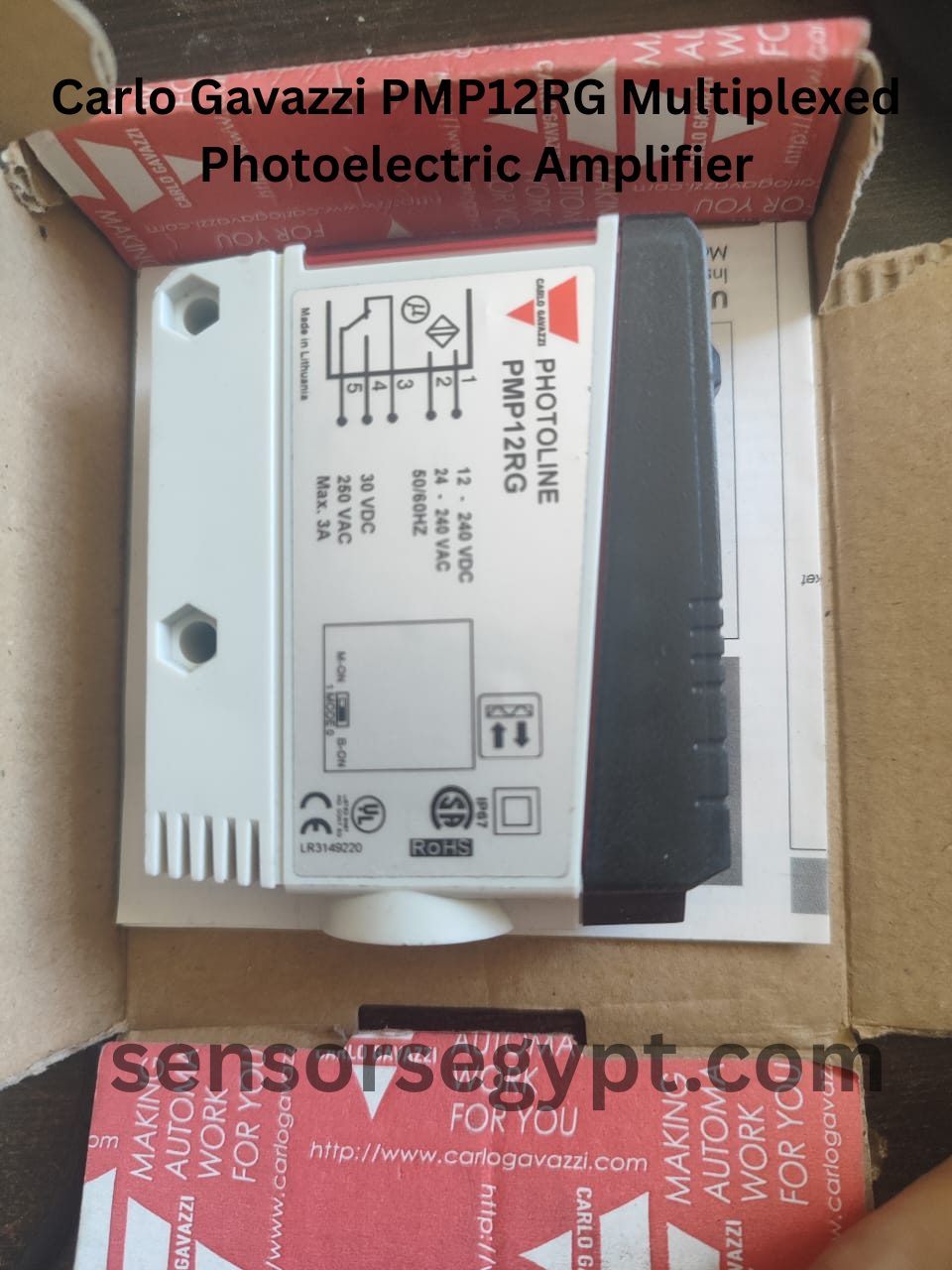

General Information

• Brand: Carlo Gavazzi
• Product Type: Multiplexed Photoelectric Amplifier
• Model: PMP12RG

Operating Specifications

• Compatible Fluids: Not Applicable (This device is an electronic amplifier for optical sensors, it does not come into contact with fluids).

Electrical Data

• Supply Voltage: 12 – 240 VDC / 24 – 240 VAC, 50/60Hz
• Output Type: SPDT Relay (Single Pole Double Throw)
  • Max. Contact Rating: 250 VAC @ 3A / 30 VDC @ 3A
• Wiring: This device uses numbered screw terminals, not a color-coded cable. The terminal functions are:
  • Terminal 1: Supply (+) or (L)
  • Terminal 2: Supply (-) or (N)
  • Terminal 3: Relay Output – Normally Closed (NC)
  • Terminal 4: Relay Output – Common (COM)
  • Terminal 5: Relay Output – Normally Open (NO)

Features & Connection

• Display: No digital display. Features LED indicators for power and output status.
• Additional Features:
  • Selectable Light-ON / Dark-ON mode via a switch.
  • IP67 protection rating.
  • Mountable on DIN rail (with optional adapter) or via two mounting holes.
