Technical Data Sheet: Festo VUVG-L10-P53C-T-M7-1P3

1. General Specifications

• Manufacturer: Festo SE & Co. KG

• Valve Function: 5/3-way, mid-position, Normally Closed (NC)

• Actuation Type: Electrical

• Valve Size: 10 mm

• Design Structure: Piston gate valve (Piston slide)

• Reset Method: Mechanical spring

2. Performance & Operation

• Standard Nominal Flow Rate: 300 to 320 l/min

• Operating Pressure: 3 bar to 8 bar (0.3 MPa to 0.8 MPa)

• Pilot Pressure: 3 bar to 8 bar (0.3 MPa to 0.8 MPa)

• Switching Times (On/Off/Reversal): 11 ms / 30 ms / 14 ms

• Operating Medium: Compressed air according to ISO 8573-1:2010 [7:4:4]

• Ambient/Media Temperature: -5°C to +60°C (restricted to 50°C in some holding current configurations)

3. Electrical Characteristics

• Operating Voltage: 24V DC

• Power Consumption: 1.0 W (high-current phase), 0.3 W (low-current phase)

• Duty Cycle: 100%

• Degree of Protection: IP40 or IP65 (with appropriate plug socket)

• Electrical Connection: Via electrical sub-base

4. Pneumatic Connections

• Pneumatic Ports (1, 2, 3, 4, 5): M7 threaded female connections

• Nominal Width: 3.5 mm

• Pilot Air Supply: Internal

• Exhaust Air Function: With flow control (throttleable) option

---

Materials & Construction

• Housing: Wrought aluminum alloy

• Seals: HNBR, NBR

• Product Weight: 55 g

• Corrosion Resistance Class (CRC): 2 (Moderate corrosion stress)

Usage Notes

• Manual Override: Supports detenting, non-detenting, and covered operations.

• Mounting: Can be mounted via through-hole or on a manifold rail.

Data Sheet

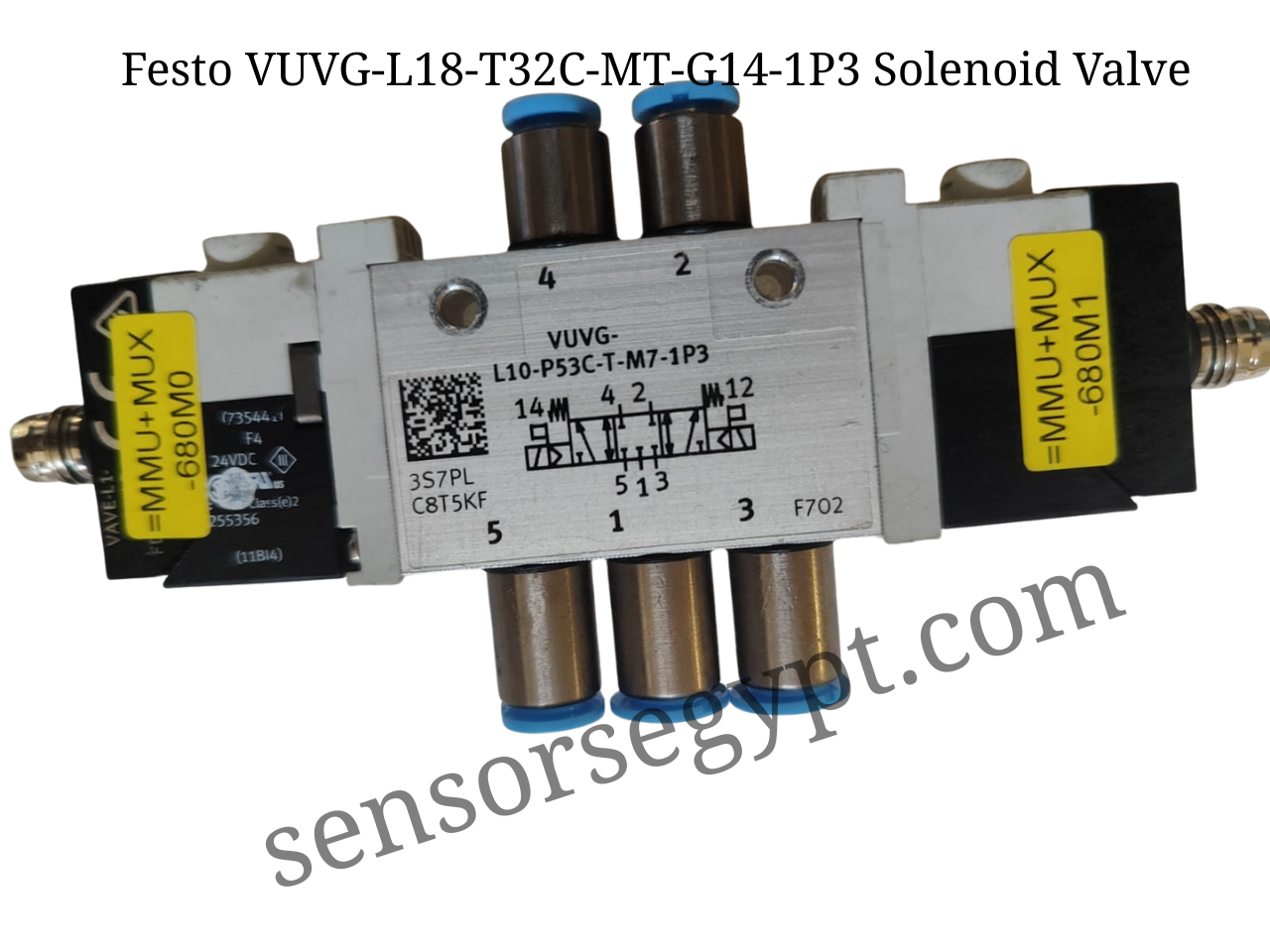

Festo VUVG-L18-T32C-MT-G14-1P3 Solenoid Valve
