General Information



• Brand: Hengstler

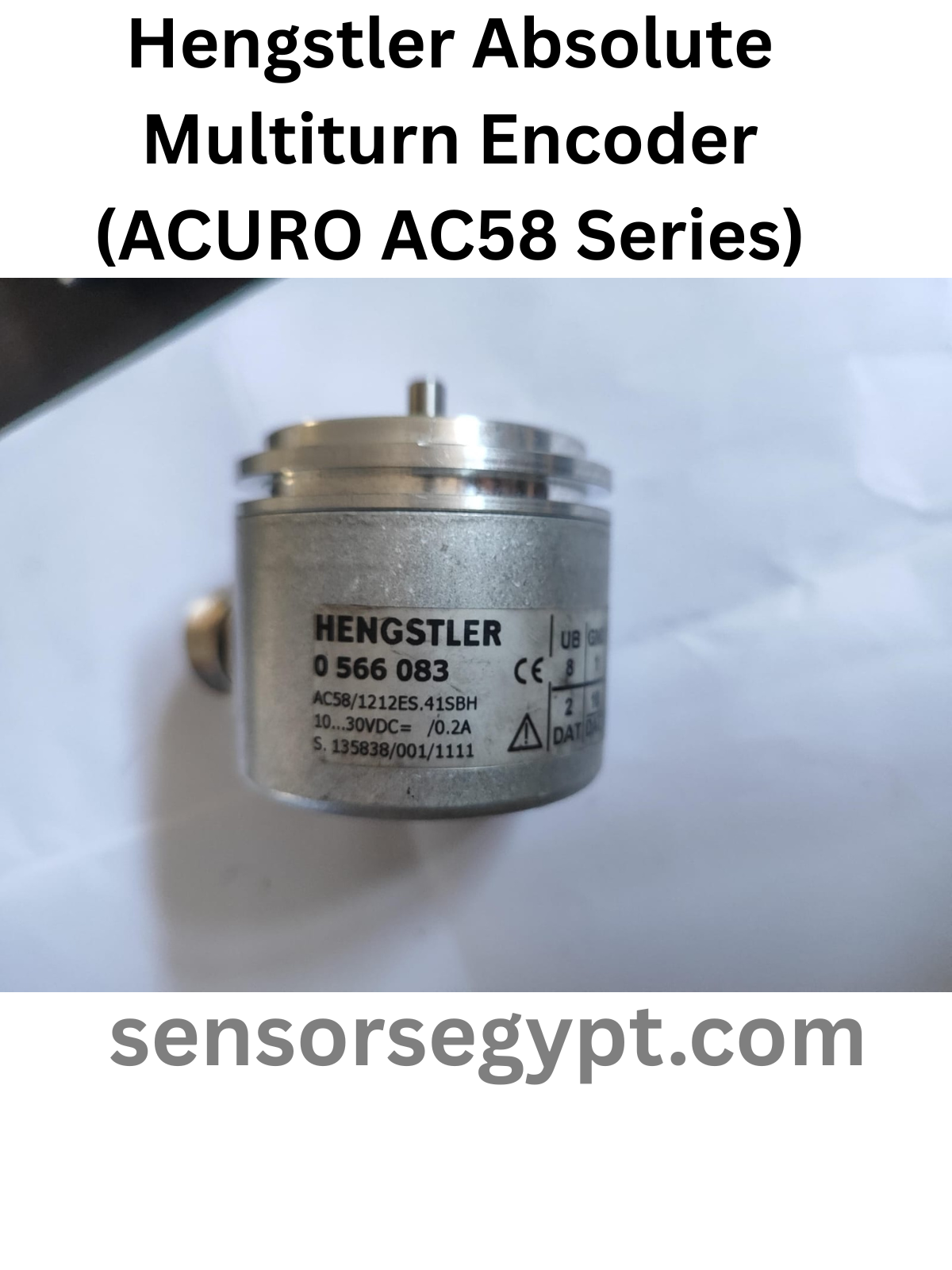

• Product Type: Absolute Multiturn Encoder (ACURO AC58 Series)
• Part Number: 0 566 083
• Model Name: AC58/1212ES.41SBH

---



Performance Data



• Communication Interface: SSI (Synchronous Serial Interface)
• Resolution: 24 bit (Total)
  • Singleturn: 12 bit (4,096 steps per revolution)
  • Multiturn: 12 bit (4,096 revolutions can be counted)
• Output Code: Gray

---



Mechanical Data



• Shaft Type: Solid shaft
• Shaft Dimensions: 6 mm diameter x 10 mm length

---



Electrical Data



• Supply Voltage (UB​): 10V to 30V DC
• Max. Current Consumption: 0.2 A (200 mA)
• Connection Type: M23, 12-pin male connector, radial.

---



Identification



• Serial Number: S. 135838/001/1111
