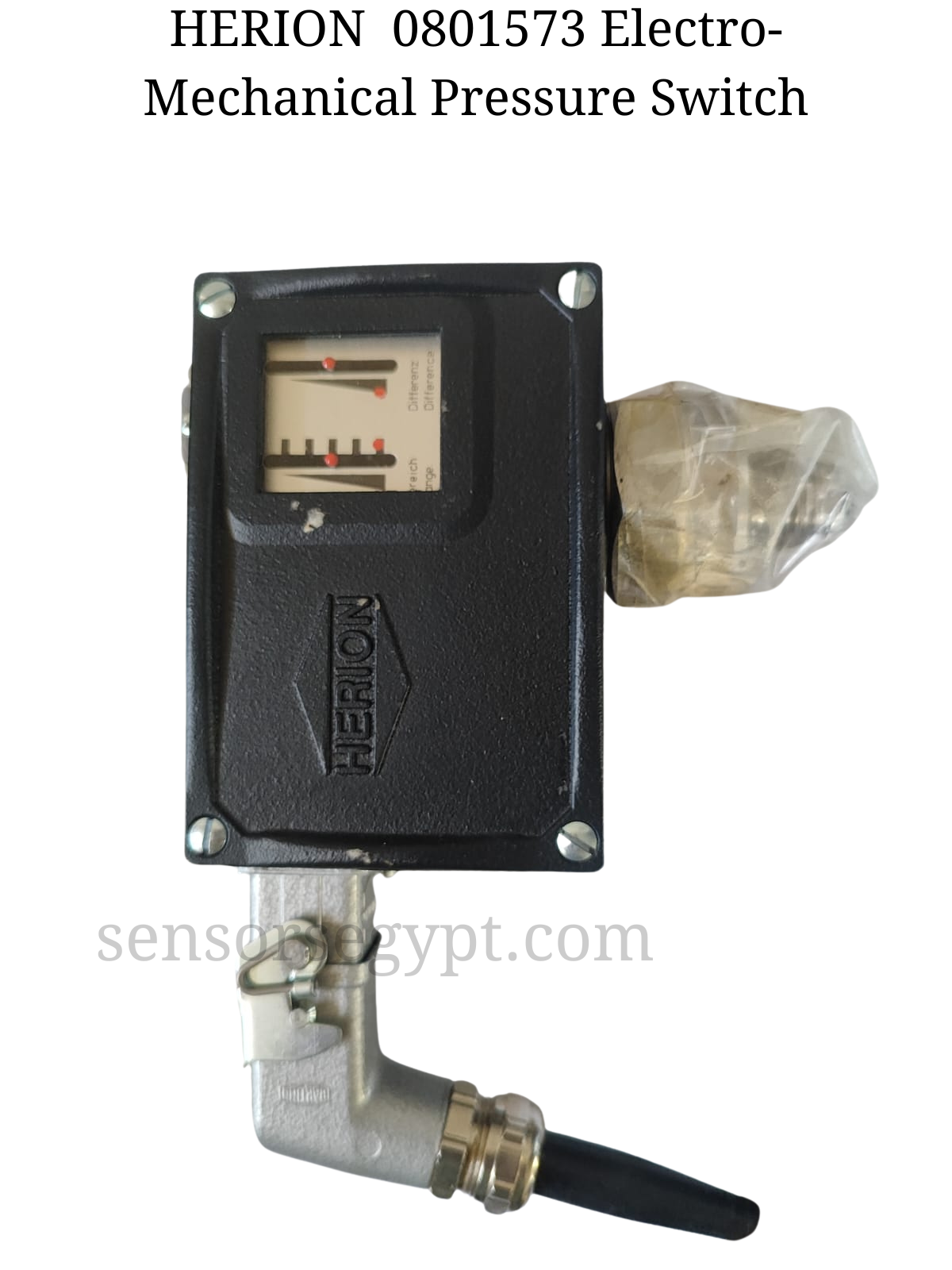

HERION Electro-Mechanical Pressure Switch
Catalog Number (Bestell-Nr.): 0801573
Manufacturer: HERION (Made in Germany)
1. General Description
The Herion 0801573 is a robust, electromechanical pressure switch designed for pneumatic and hydraulic applications. It converts a pneumatic pressure signal into an electrical switching signal.
This device features a user-adjustable pressure switching point between 0.3 and 6 bar. When the system pressure reaches the set value, the internal micro-switch actuates, either closing or opening an electrical circuit (depending on wiring). Its heavy-duty metal housing makes it suitable for harsh industrial environments.
Key Features 🎯
-
Adjustable Range: Flexible setpoint adjustment from 0.3 to 6 bar.
-
High Current Capacity: Capable of switching loads up to 10 Amps.
-
Low Voltage Application: Specifically rated for control voltages up to 48 Volts.
-
Robust Construction: Metal die-cast housing ensures durability and protection against impact.
-
Reliable Operation: Proven electromechanical design for long service life.
2. Technical Specifications
Performance & Operating Data
| Parameter | Value |
| Pressure Range (Bereich) | 0.3 … 6 bar |
| Medium | Compressed Air, Neutral Gases, Lubricated or Non-lubricated |
| Adjustment | Mechanical screw (typically under the cover or on top) |
Electrical Data
| Parameter | Value |
| Max. Voltage (U max) | 48 V (AC/DC) |
| Max. Current (I max) | 10 A |
| Switch Type | Mechanical Micro-switch |
| Electrical Connection | Terminal block inside housing |
Mechanical & Environmental Data
| Parameter | Value |
| Housing Material | Die-cast Metal (Aluminum/Zinc alloy) |
| Protection Class | IP65 (Typical for this series when installed) |
| Mounting | Flange or Threaded (Series dependent) |
| Date of Manufacture | 01/93 (January 1993) – Vintage / New Old Stock |
3. Wiring & Operation
This switch typically utilizes a Changeover Contact (SPDT).
-
Common (COM): Power Input.
-
Normally Closed (NC): Circuit is closed when pressure is below the setpoint.
-
Normally Open (NO): Circuit closes when pressure reaches the setpoint.
Note on Voltage: Unlike many modern switches rated for 250V, this specific model is clearly marked for Max 48V. Do not use on 110V or 220V mains voltage.
