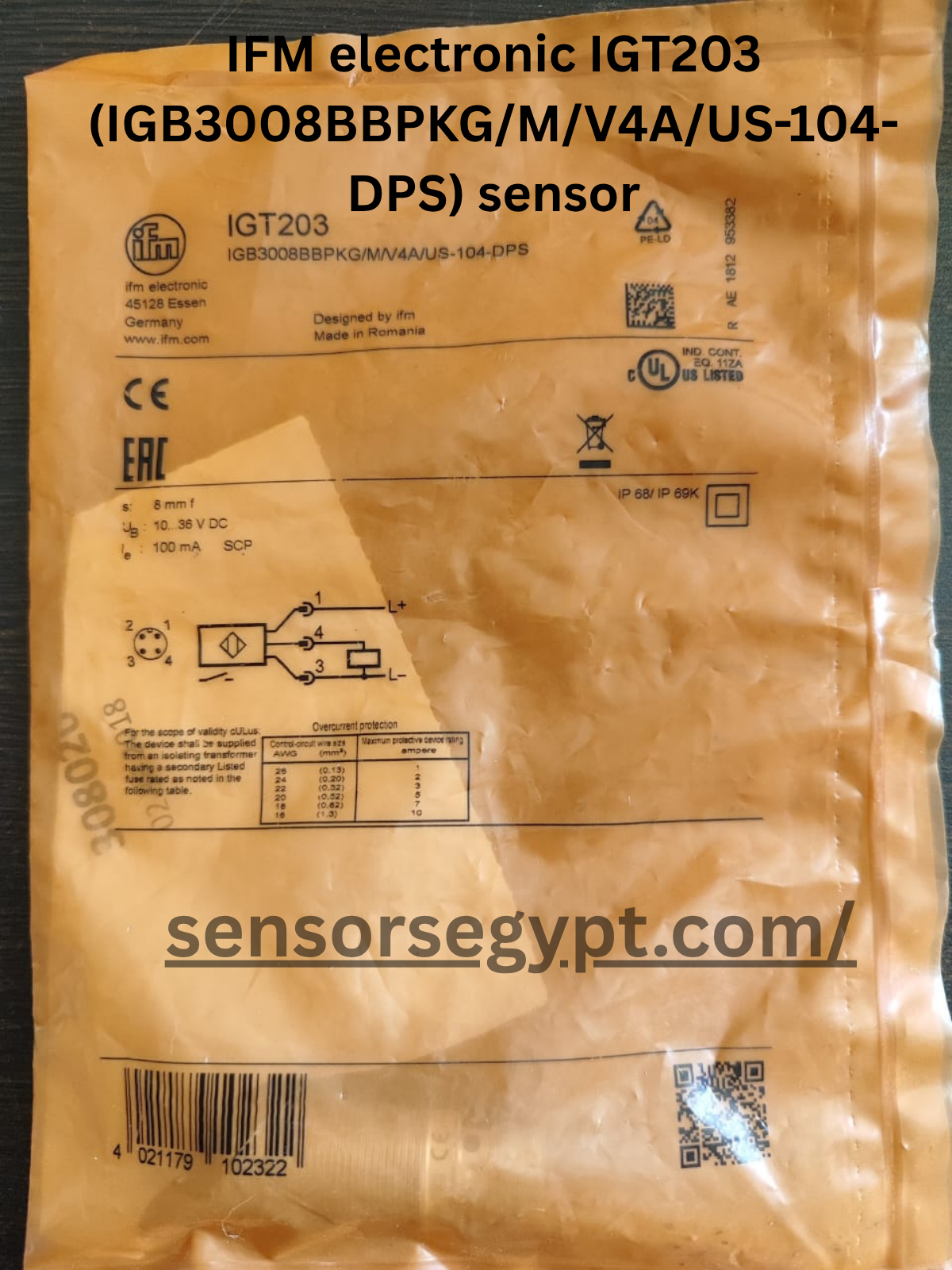

Key Specifications



• Brand: IFM electronic
• Model Number: IGT203
• Full Order Code: IGB3008BBPKG/M/V4A/US-104-DPS
• Sensing Distance (s): 8 mm (flush mountable).
  • Mounting Note: “Flush” means the sensor can be embedded level with the surrounding metal surface.

---



Electrical Data



• Operating Voltage (Ub​): 10 to 36 V DC
• Maximum Load Current (Ie​): 100 mA
• Electrical Protection: Short Circuit Protection (SCP)
• Output Type: PNP, 3-wire, Normally Open (NO).
• Wiring (M12 Connector):
  • Pin 1: +L (Positive Supply)
  • Pin 3: -L (Negative / Ground)
  • Pin 4: Signal Output

---



Mechanical & Environmental Data (Harsh Duty)



• Operating Temperature: Extended range up to 100 °C (212 °F) (Confirmed from official datasheet). This makes it suitable for high-temperature applications.
• IP Rating: IP68 / IP69K. This is an extremely high rating, indicating the sensor is fully submersible and can withstand high-pressure, high-temperature washdowns.
• Housing Material: V4A Stainless Steel (316L), providing excellent resistance to corrosion from chemicals and cleaning agents.
• Body Size: M18
• Protection Class: Class II (Double Insulated).

---



Manufacturing & Certifications



• Designed by: IFM (Germany)
• Made in: Romania
• Certifications: CE, EAC, and cULus Listed.
