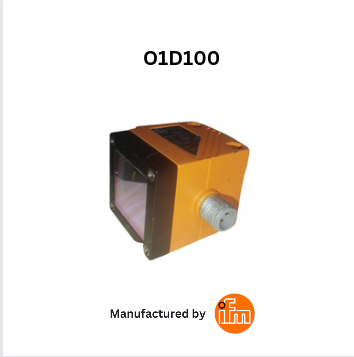

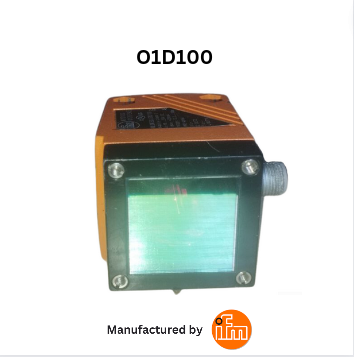

Product characteristics
| Laser protection class | 2 |
|---|---|
| Housing | rectangular |
Electrical data
| Operating voltage [V] | 18…30 DC; (cULus – Class 2 source required) |
|---|---|
| Current consumption [mA] | < 150 |
| Protection class | III |
| Reverse polarity protection | yes |
| Typ. lifetime [h] | 50000 |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2; Number of analog outputs: 1 |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Electrical design | PNP |
| Number of digital outputs | 2 |
| Output function | normally open / closed; (configurable) |
| Max. current load per output [mA] | 200 |
| Number of analog outputs | 1 |
| Analog current output [mA] | 4…20; (IEC 61131-2) |
| Max. load [Ω] | 250 |
| Analog voltage output [V] | 0…10; (IEC 61131-2) |
| Min. load resistance [Ω] | 5000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
Monitoring range
| Max. light spot width [mm] | 15 |
|---|---|
| Max. light spot height [mm] | 15 |
| Light spot dimensions refer to | 10 m |
| Background suppression [m] | 0…19 |
Measuring/setting range
| Measuring range [m] | 0.2…10; (white paper 200 x 200 mm 90 % remission) |
|---|---|
| Sampling rate [Hz] | 1…50 |
Interfaces
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| Transmission type | COM2 (38,4 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| SDCI standard | IEC 61131-9 | ||||
| Profiles | Smart Sensor: Sensor Identification; Binary Data Channel; Process Value; Sensor Diagnosis | ||||
| SIO mode | yes | ||||
| Required master port class | A | ||||
| Process data analog | 2 | ||||
| Process data binary | 3 | ||||
| Min. process cycle time [ms] | 6 | ||||
| Supported DeviceIDs |
|
Operating conditions
| Ambient temperature [°C] | -10…60 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC |
|
||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Laser protection class | 2 | ||||||||||||||||||||
| Notes on laser protection |
|
||||||||||||||||||||
| MTTF [years] | 182 |
Mechanical data
| Weight [g] | 243.5 |
|---|---|
| Housing | rectangular |
| Dimensions [mm] | 59 x 42 x 52 |
| Material | housing: diecast zinc; front lens: glass; LED window: PC |
| Lens alignment | Side sensing |
Displays / operating elements
| Display |
|
|---|
Accessories
| Accessories (optional) |
|
|---|
Remarks
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Connector: 1 x M12; coding: A |
|---|
