TECHNICAL DATASHEET

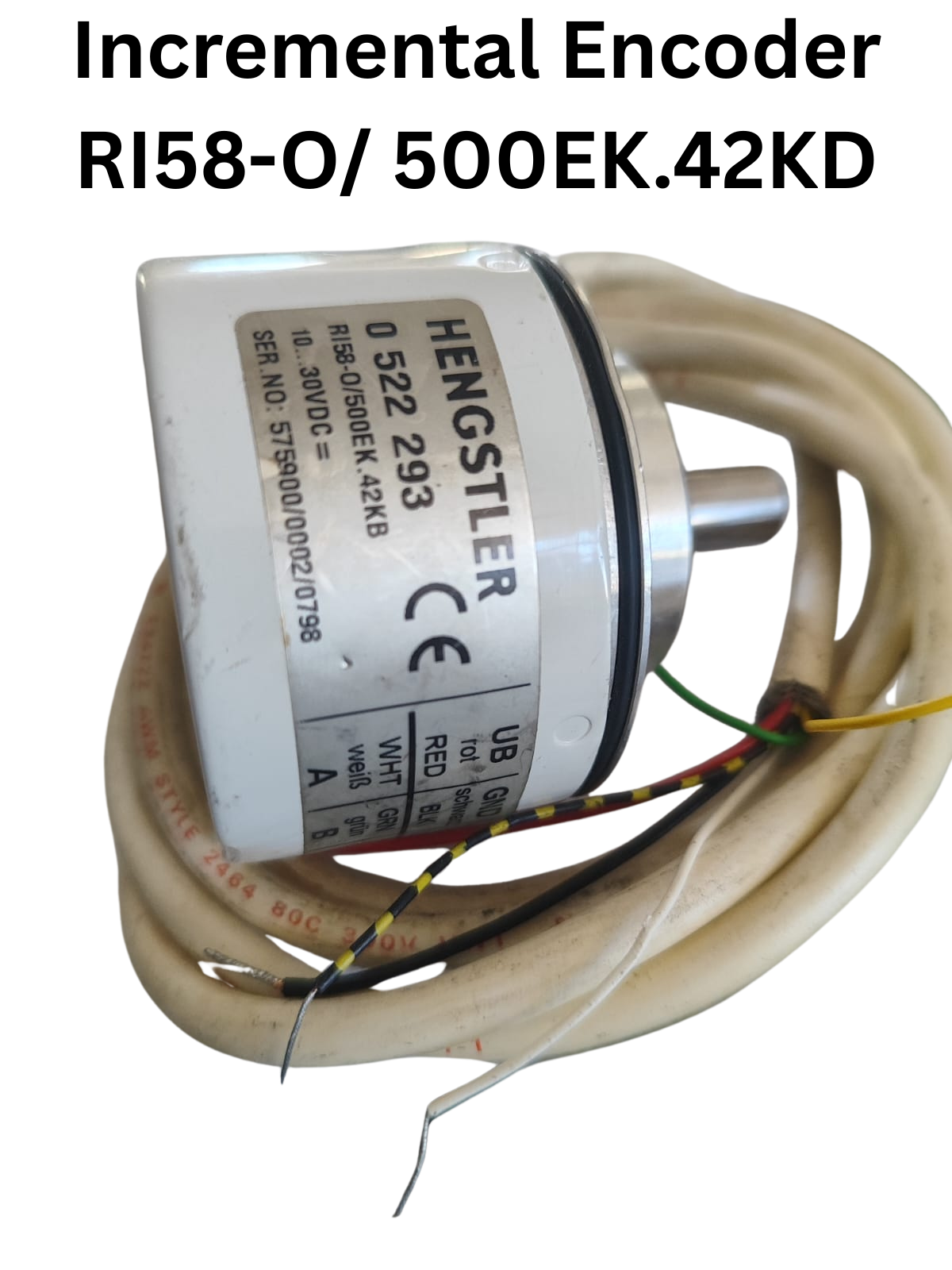

Incremental Encoder RI 58-O / RI 58-T / RI58-C
Specifications subject to change without notice
General design As per DIN EN 61010-1, protection class III, contamination level 2, overvoltage class II
Supply voltage 1, 2 RS422 + Sense (T): DC 5 V ±10 %
RS422 + Alarm (R): ± 10% DC 5 V or DC 10 – 30 V
Push-pull (K), Push-pull complementary (I): DC 10-30 V
Current w/o load typ. 40 mA (DC 5 V), 60 mA (DC 10 V), 30 mA (DC 24 V)
Max. pulse frequency RS422: 300 kHz
Push-pull: 200 kHz
Standard output versions RS422 + Alarm (R): A, B, N, ͞A, ͞B, ͞N, ͞A͞la͞r͞m
RS422 + Sense (T): A, B, N, ͞A, ͞B, ͞N, Sense
Push-pull (K): A, B, N, A͞la͞r͞m
Push-pull complementary (I): A, B, N, ͞A, ͞B, ͞N,
͞A͞la͞r͞m
Pulse width error ± max. 25° electrical
Number of pulses 1 … 10,000
Alarm output NPN-O.C., max. 5 mA
Pulse shape Square wave
Pulse duty factor 1:1
1 Pole protection with supply voltage DC 10 – 30 V
2 Wide range power supply DC 3 – 38 V available on request
TECHNICAL DATA
mechanical (continued)
TECHNICAL DATA
electrical
Vibration resistance
(DIN EN 60068-2-6)
100 m/s² (10 – 2000 Hz)
Shock resistance
(DIN EN 60068-2-27)
1000 m/s² (6 ms)
Operating temperature RI58-O: -10 °C … +70 °C
RI58-T: -40 °C … +100 °C
RI58-C: -40 °C … +70 °C
Storage temperature 1
-25 °C … +85 °C
Material shaft Stainless Steel
Material housing Aluminum
Weight approx. 360 g
Connection PVC cable, axial or radial
TPE cable, axial or radial
M23 connector (Conin), axial or radial
M16 (Binder), axial or radial
M12 connector, axial or radial
MS, axial or radial
KPT connector radial
