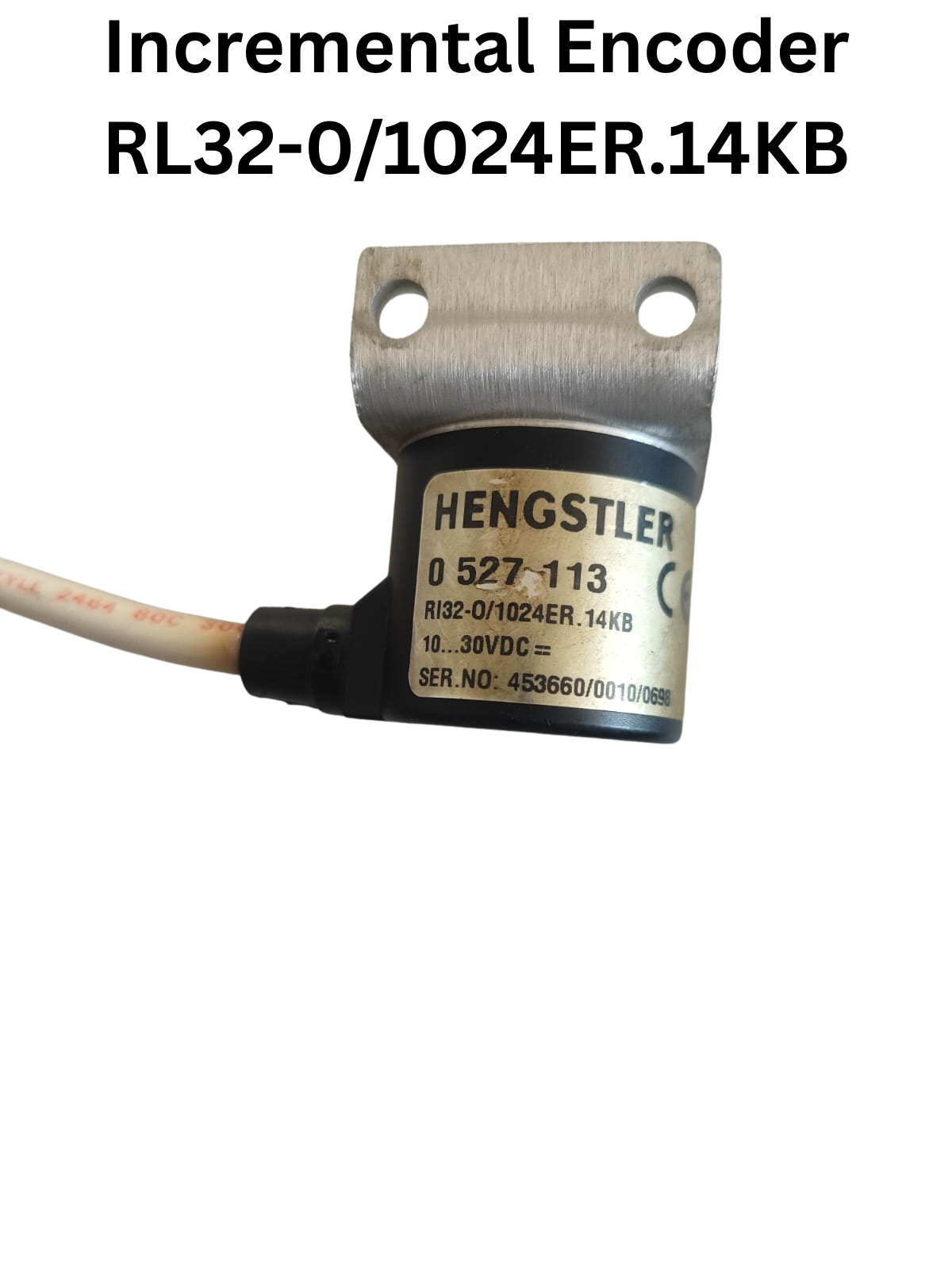

The RI32-0/1000ER.14KB is an Incremental Rotary Encoder for laboratory devices, fitness, crimping, tampon printing and small grinding machines. Replacement for type RIS and RI 31.
- Round flange
- Economy encoder for small devices
- Long life due to ball bearings
- Low torque
- IP40 Protection rating
- -10 to +60°C Operating temperature
- 5mm Shaft diameter
- Push-pull short circuit proof output
- Cable radial type of connection
Applications
Industrial
Technical Specifications
Find similar products
Encoder Technology
Optical
Encoder Resolution
Orientation
Horizontal
Encoder Output
Push Pull
Product Range
RI 32-O
Rotational Life Cycles
–
Shaft Type
D Type Flatted End
Shaft Diameter
5mm
Supply Voltage Max
Operating Temperature Max
60°C
Termination
Wire Leaded
Find similar products
Encoder Type
Incremental
No. of Detents
0 Detents
Push Switch
Without Push Switch
Encoder Mounting
Flange Mount
Rotational Speed Max
6000rpm
No. of Channels
3Channels
Shaft Length
12.5mm
Supply Voltage Min
Operating Temperature Min
-10°C
IP Rating
IP40, IP50
