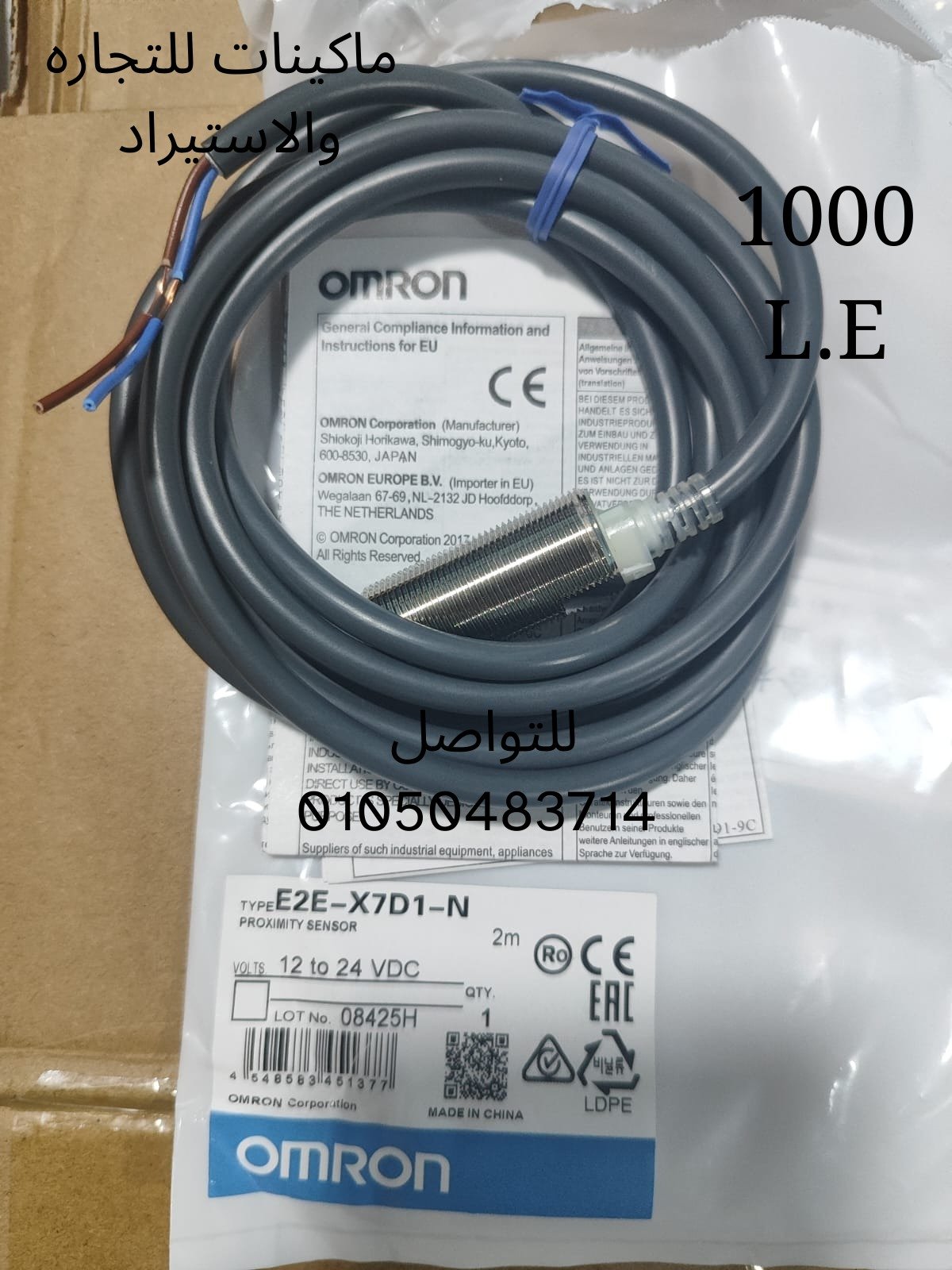

Omron E2E Inductive Proximity Sensor

Model: E2E-X7D1-N Type: Inductive Proximity Sensor (Cylindrical)

---

General Description

The Omron E2E-X7D1-N is a robust, cylindrical inductive proximity sensor designed for non-contact detection of ferrous metals. It features a standard threaded metal housing, making it durable and suitable for harsh industrial environments. This model is a 2-wire DC sensor with a normally open (NO) output configuration.

Key Features: 🎯

• Standard Size: M18 threaded nickel-plated brass housing.

• Sensing Distance: 7 mm nominal sensing range.

• Shielded: Designed for flush mounting in metal.

• 2-Wire DC: Simplifies wiring (reduces cable cost).

• Operation: Normally Open (NO) output.

• Status Indicator: LED indicator for operation status.

---

Technical Specifications

Sensing Data:

• Sensing Distance: 7 mm ± 10%

• Set Distance: 0 to 5.6 mm

• Standard Target: Ferrous metal (Iron, 18 x 18 x 1 mm)

• Response Frequency: 0.5 kHz

Electrical Data:

• Supply Voltage: 12 to 24 VDC (Operating range: 10 to 30 VDC)

• Output Type: 2-Wire DC

• Control Output (Switching Capacity): 3 to 100 mA

• Operation Mode: NO (Normally Open)

• Residual Voltage: Max. 3 V (Load current 100 mA)

Mechanical & Environmental Data:

• Housing Size: M18 (Threaded)

• Housing Material: Nickel-plated brass

• Connection: Pre-wired Cable, 2 m PVC

• Protection Class: IEC 60529 IP67

• Ambient Temperature: -25°C to +70°C

---

Wiring (2-Wire DC)

This sensor connects in series with the load (e.g., PLC input or Relay).

• Brown: +V (Positive)

• Blue: 0V (Negative / Load)
