Pepperl+Fuchs Inductive Proximity Sensor



Model: NJ10-30GK50-E2

---

1. General Description

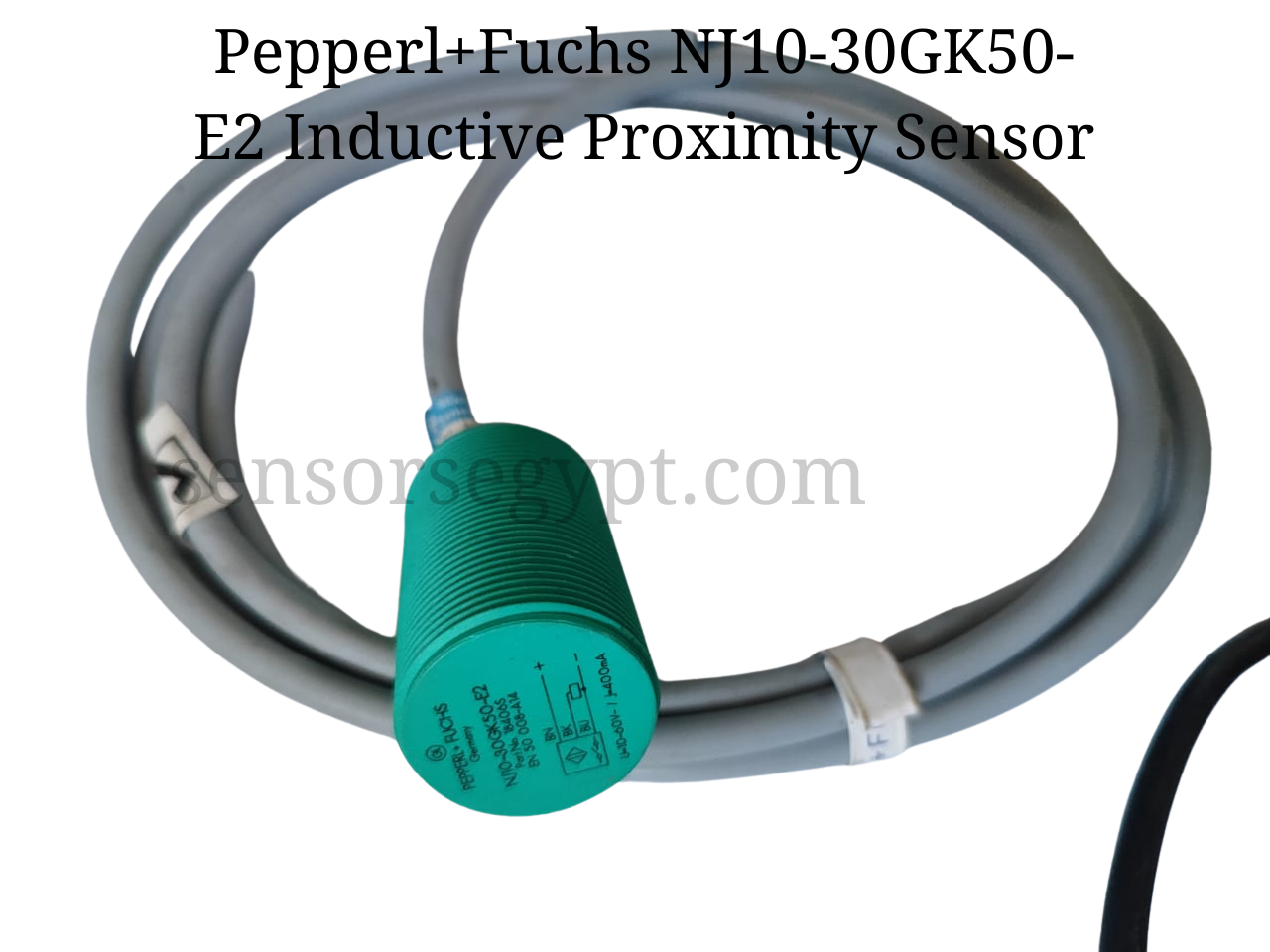

The Pepperl+Fuchs NJ10-30GK50-E2 is a cylindrical, M30-sized inductive proximity sensor. It is designed for the non-contact detection of metallic objects in industrial automation applications.

This model is a non-flush mountable (unshielded) sensor, which gives it an extended sensing range of 10 mm. It features a robust plastic housing, a wide operating voltage range, and a standard PNP Normally Open (NO) output, making it highly versatile for various control systems.

Key Features 🎯



• Extended Sensing Range: 10 mm nominal sensing distance (from “NJ10”).

• Non-Flush Mounting: Can be installed with the sensing face protruding from the mounting surface for a longer range.

• Wide Voltage Range: Operates on any DC voltage from 10 to 60 V.

• Standard Output: Provides a 3-wire PNP Normally Open (NO) switching output.

• Robust Housing: M30 threaded cylindrical body made of durable plastic.

• High Protection: Typically rated IP67, making it resistant to dust and water ingress.

---

2. Technical Specifications



Electrical Data



Performance & Mechanical Data



---

3. Wiring



The label clearly indicates the wiring for a standard 3-wire PNP NO sensor:

• BN (Brown): L+ (Connect to 10 – 60 VDC)

• BU (Blue): L- (Connect to 0V / GND)

• BK (Black): Q (PNP Output Signal)

Datasheet
