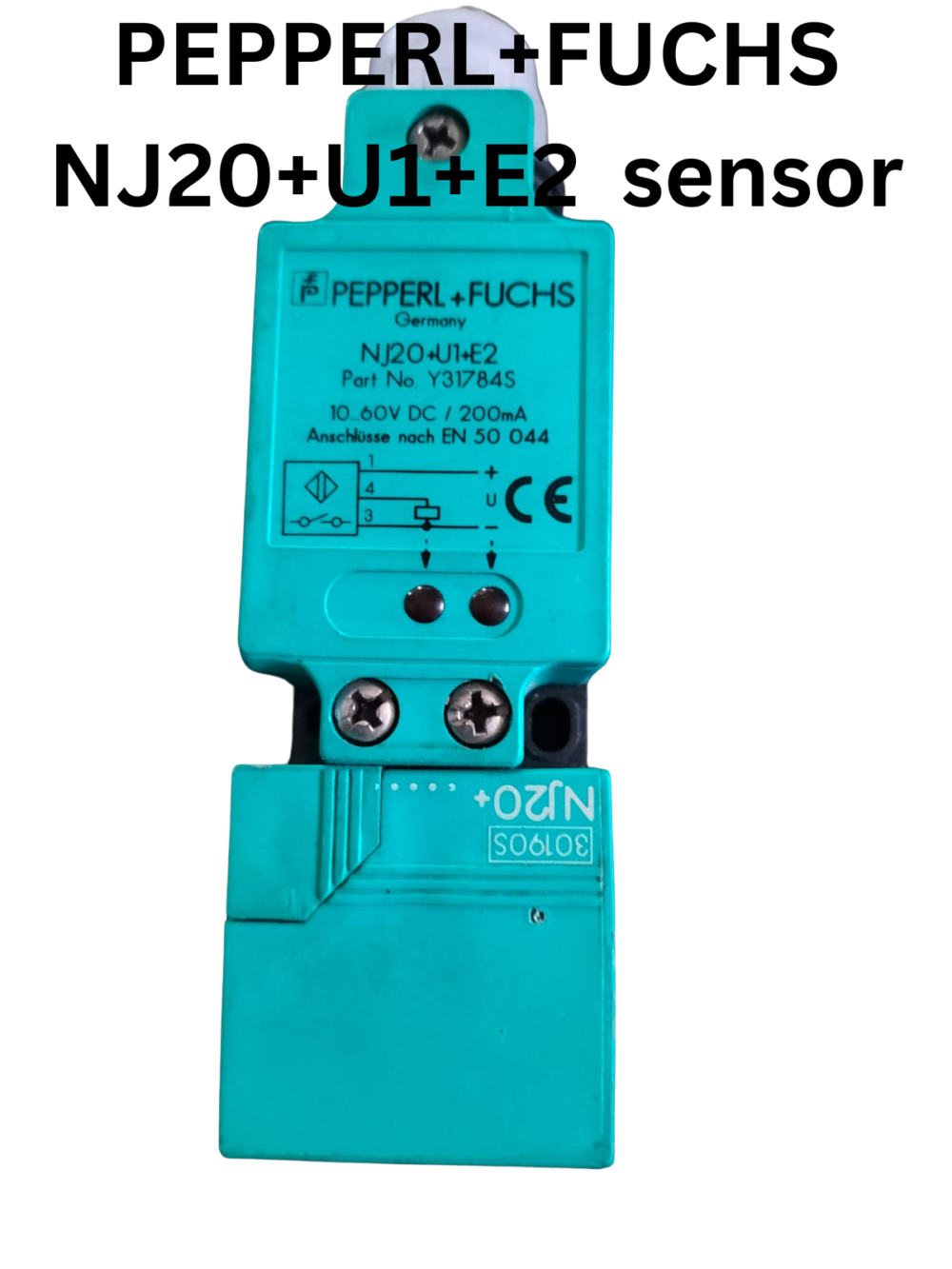

Technical Data
General specifications
Switching element function PNP NO
Rated operating distance sn 20 mm
Installation embeddable
Output polarity DC
Assured operating distance sa 0 … 16.2 mm
Reduction factor rAl 0.35
Reduction factor rCu 0.35
Reduction factor r303 0.8
Nominal ratings
Operating voltage UB 10 … 60 V
Switching frequency f 0 … 150 Hz
Hysteresis H 1 … 10 typ. 5 %
Reverse polarity protected reverse polarity protected
Short-circuit protection pulsing
Voltage drop Ud ≤ 2.8 V
Operating current IL 0 … 200 mA
Off-state current Ir 0 … 0.5 mA typ. 0.01 mA
No-load supply current I0 ≤ 10 mA
Operating voltage display LED, green
Indication of the switching state LED, yellow
Ambient conditions
Ambient temperature -25 … 70 °C (-13 … 158 °F)
Storage temperature -25 … 85 °C (-13 … 185 °F)
Mechanical specifications
Connection type screw terminals
Core cross-section up to 2.5 mm2
Housing material PBT
Sensing face PBT
Protection degree IP68
Compliance with standards and directives
Standard conformity
Standards EN 60947-5-2:2007
IEC 60947-5-2:2007
Approvals and certificates
UL approval cULus Listed, General Purpose
CSA approval cCSAus Listed, General Purpose
CCC approval Certified by China Compulsory Certification (CCC)
