General Information

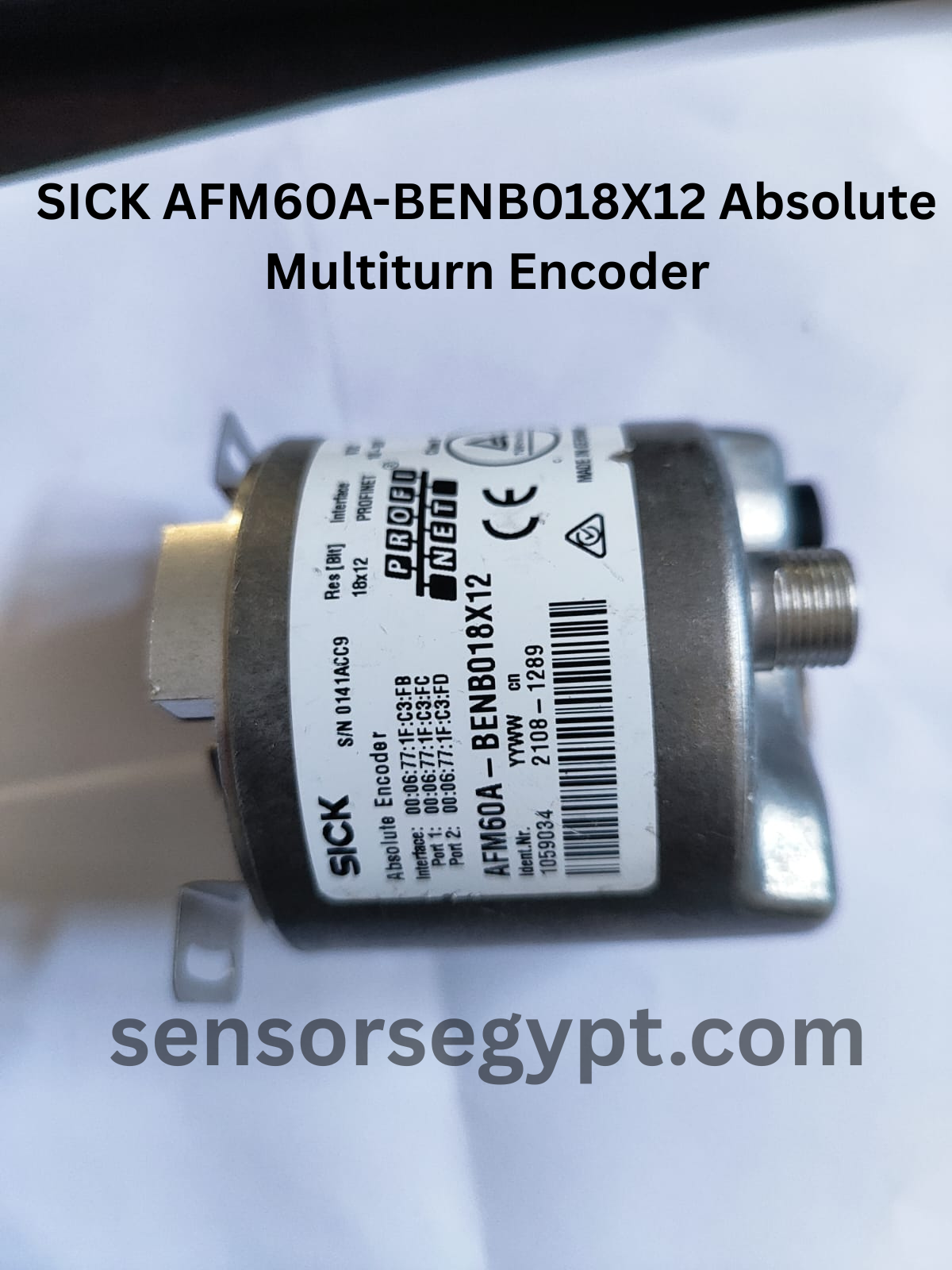

• Brand: SICK
• Product Type: Absolute Multiturn Encoder
• Model Number: AFM60A-BENB018X12
• Identification No.: 1059034

---



Performance Data



• Communication Interface: PROFINET
• Resolution: 30 bit (Total)
  • Singleturn: 12 bit (4,096 steps per revolution)
  • Multiturn: 18 bit (262,144 revolutions can be counted)

---



Mechanical Data



• Shaft Type: Blind hollow shaft (the encoder fits over a machine’s shaft).
• Shaft Diameter: 12 mm

---



Electrical Data



• Supply Voltage: 10…30 V DC
• Connection Type:
  • 1 x M12 male connector (for Power Supply)
  • 2 x M12 female connectors (for PROFINET In / PROFINET Out)

---



Network Identification



• Serial Number (S/N): 0141AC33
• MAC Address (Interface): 00:06:77:1F:C3:FB
• MAC Address (Port 1): 00:06:77:1F:C3:FC
• MAC Address (Port 2): 00:06:77:1F:C3:FD

---



Manufacturing



• Made in: Germany
