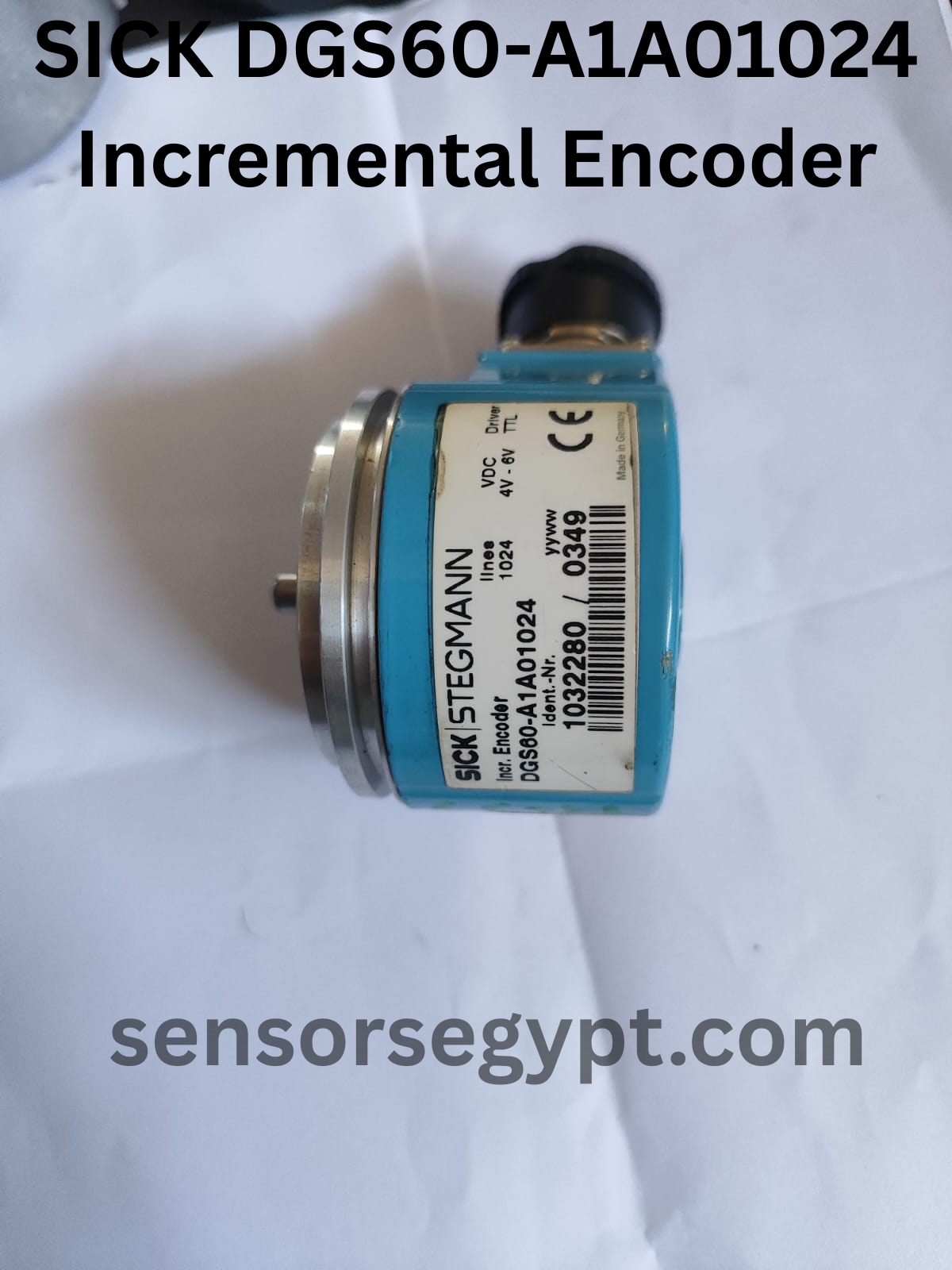

General Information



• Brand: SICK STEGMANN
• Product Type: Incremental Encoder
• Model Number: DGS60-A1A01024
• Identification No.: 1032280

---



Performance Data



• Resolution: 1,024 Pulses Per Revolution (PPR).
• Output Channels: A, B, Z (and their inverted signals A-, B-, Z-). The A/B channels are for direction and movement, and the Z channel is a once-per-revolution index/marker pulse.
• Output Type / Driver: TTL / RS-422. This is a differential line driver output for robust, noise-immune signal transmission over longer distances.

---



Mechanical Data



• Shaft Type: Solid shaft.
• Shaft Diameter: 6 mm.

---



Electrical Data



• Supply Voltage: 4.5V to 5.5V DC (This is a specific voltage range for 5V TTL logic).
• Connection Type: M23, 12-pin male connector.

---



Manufacturing



• Made in: Germany
