Features
Cylinder type T-slot
Cylinder types with adapter Profile cylinder
Tie rod cylinder
Round body cylinder
Dovetail groove cylinder
SMC rail CDQ2
SMC rail ECDQ2

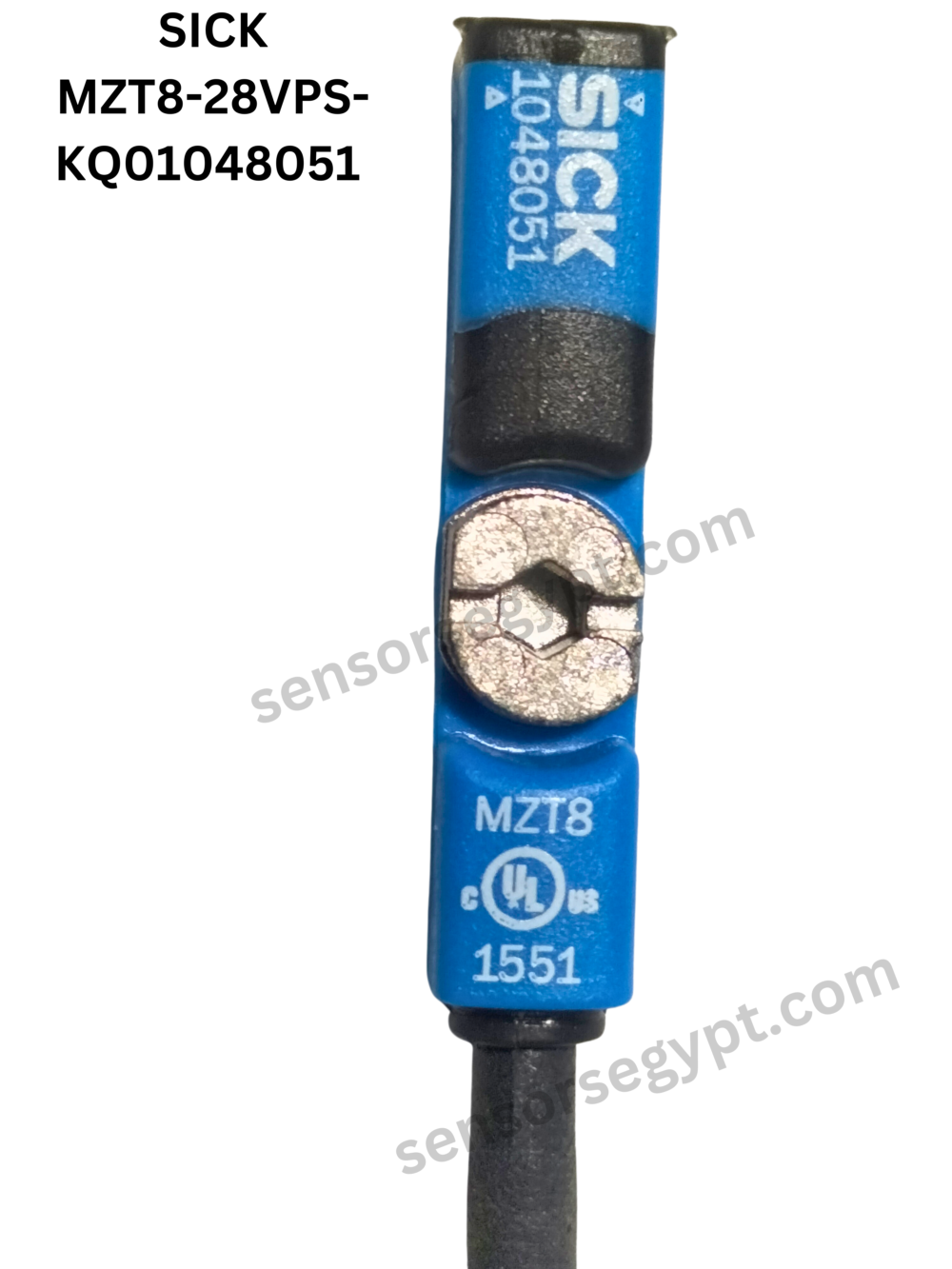

Housing length 24 mm
Switching output PNP
Switching frequency 1,000 Hz
Output function NO
Electrical wiring DC 3-wire
Enclosure rating IP68 1)
1) According to EN 60529 (IP 67 / IP 68).
Mechanics/electronics
Supply voltage 10 V DC … 30 V DC
Power consumption 10 mA, without load
Voltage drop ≤ 2.2 V
Continuous current Ia ≤ 200 mA
Protection class III
Time delay before availability 25 ms
Response sensitivity, typ. 2.8 mT
Overrun distance, typ. 9 mm
Hysteresis, typ. 0.7 mT

Reproducibility ≤ 0.1 mT 1)
Reverse polarity protection Yes
Short-circuit protection Yes
Status indicator LED Yes
Power-up pulse protection Yes
Ambient operating temperature –30 °C … +80 °C
Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm
EMC According to EN 60947-5-2

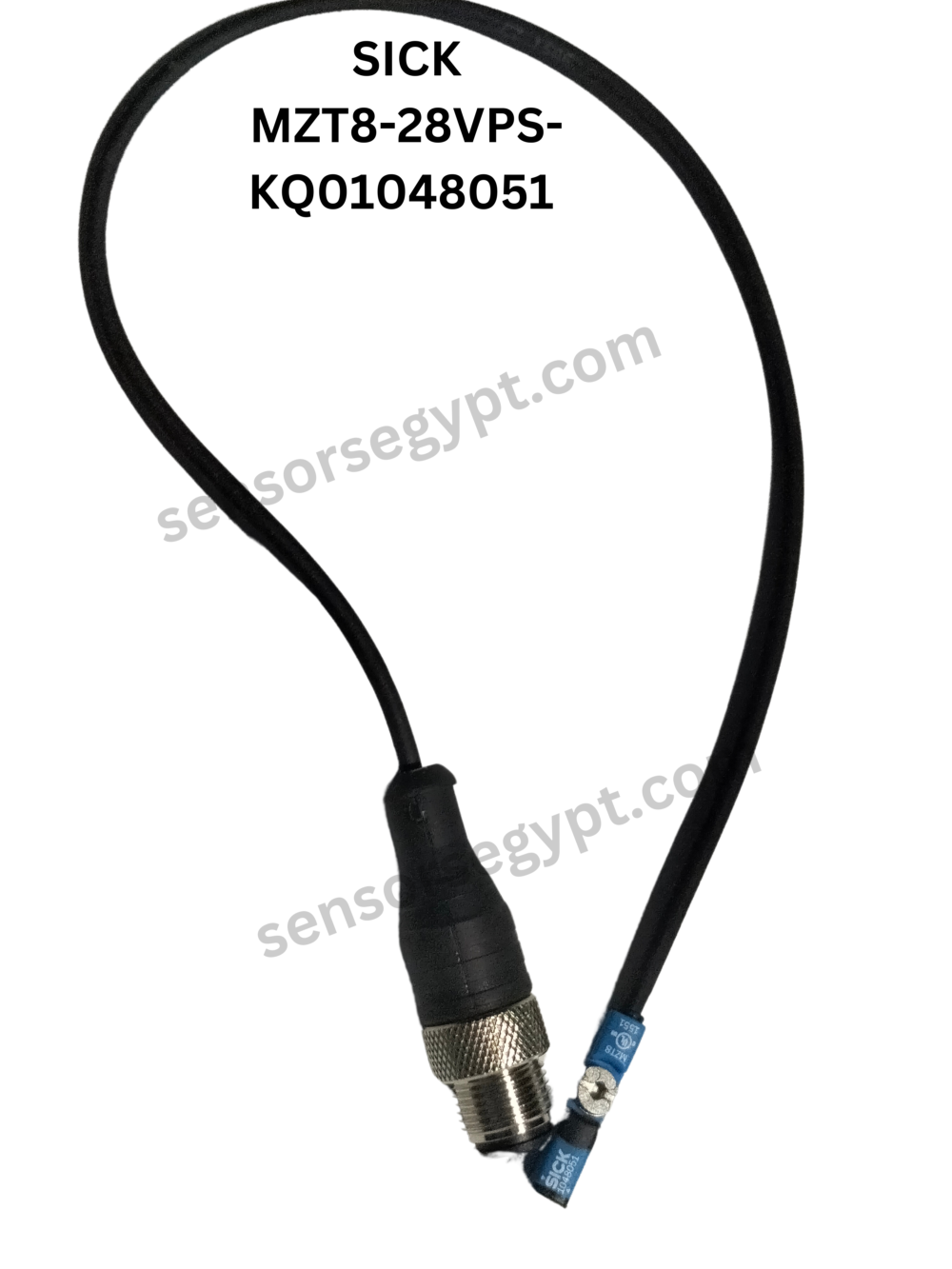

Connection type Cable with connector M12, 4-pin, with knurled nuts, drag chain use, 0.3 m
Connection type Detail
Conductor cross section 0.14 mm²
Cable diameter Ø 2.9 mm
Bending radius With fixed installation > 3 x cable diameter
For flexible use > 10 x cable diameter
Torsion force ± 270° / 10 cm
Torsion cycles > 2,000,000
Drag chain cycles > 2,000,000
Drag chain parameters Traversing speed max. 3.3 m/s at 5 m horizontal traversing length
Acceleration max. 5 m/s²
Cable outlet Axial
Material
Housing Plastic, PA12
Cable PUR
UL File No. NRKH.E181493 & NRKH7.E181493

SICK GTB6- N1211S38
