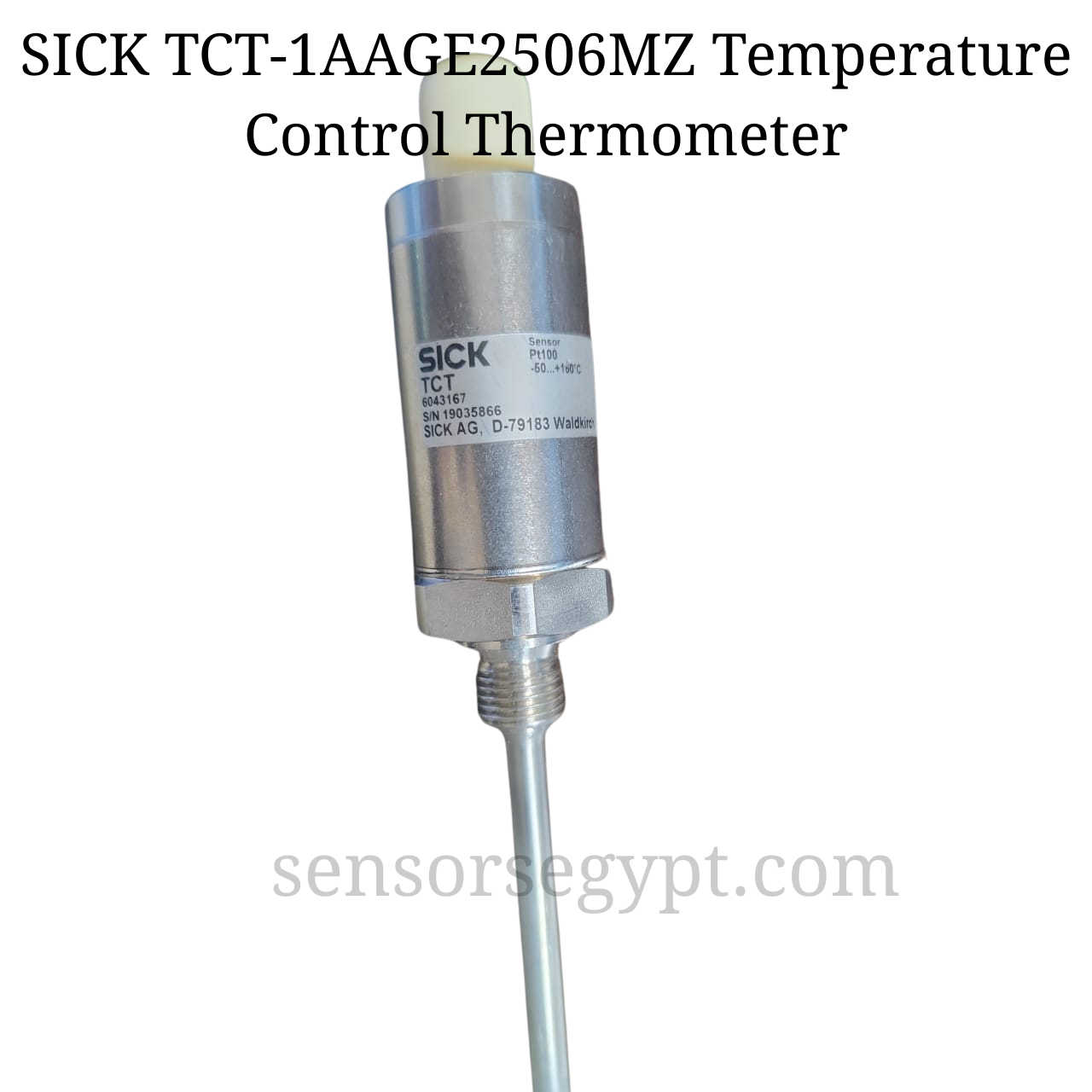

# Key Specifications



• Manufacturer: SICK AG
• Product Family: TCT (Temperature Control Thermometer)
• Part Number: 6043167
• Model Name: TCT-1AAGE2506MZ
• Sensor Type: Pt100 Resistance Temperature Detector (RTD), Accuracy Class A according to IEC 60751.
• Measurement Range: -50 °C to +150 °C
• Output Signal: Passive resistance. This is not a powered sensor with a 4-20mA signal. It must be connected to a temperature controller or PLC input card that can read Pt100 signals.
• Process Connection: G ¼ A thread (based on the full model number)
• Electrical Connection: M12, 4-pin plug connector
• Housing Material: Stainless Steel
• Enclosure Rating: Typically IP67 when the M12 connector is properly sealed.

---



## Functionality



The SICK TCT is a passive temperature sensor. The core of the device is a platinum resistor (Pt100) whose electrical resistance changes in a precise and repeatable way with temperature.

• At 0 °C, the resistance is exactly 100 Ohms ($\Omega$).
• As the temperature increases, the resistance increases.

To get a temperature reading, this sensor must be connected to a control device that sends a small current through the Pt100 element and measures the resulting resistance, converting it into a temperature value. The 4-pin M12 connector allows for a 4-wire measurement, which provides the highest accuracy by compensating for any resistance in the connecting cable.
