## Key Specifications



• Manufacturer: Siemens
• Product Family: LOGO! 8

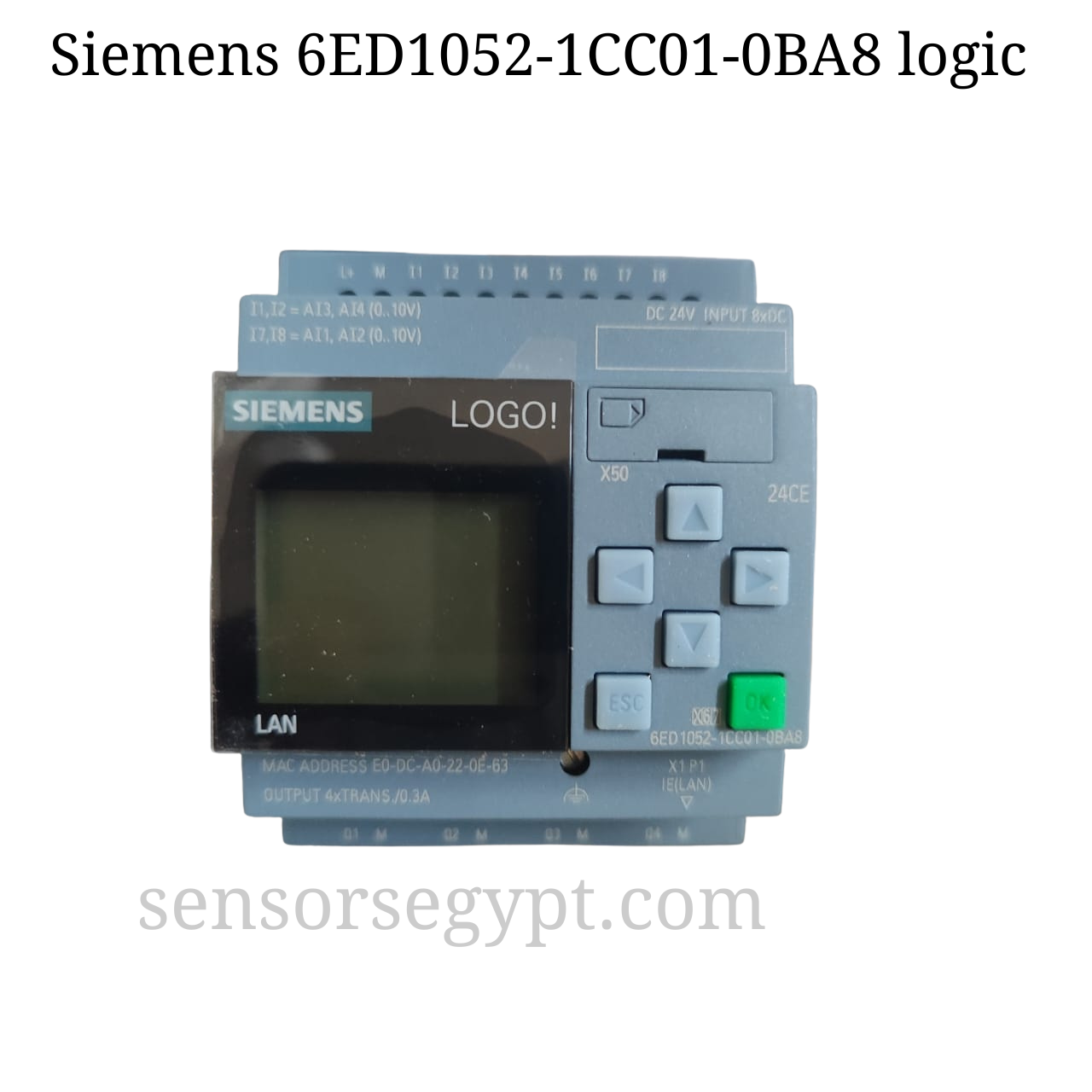

• Order Number / Model: 6ED1052-1CC01-0BA8
• Power Supply: 24 V DC
• Inputs: 8 Digital Inputs (DC)
  • Of these 8 inputs, 4 can be configured as Analog Inputs (0 – 10 V). As shown on the module, these are I1, I2, I7, and I8.
• Outputs: 4 Digital Transistor Outputs
  • Max Output Current: 0.3 A per output
• Display: Integrated 6-line monochrome display with backlight, capable of showing 16 characters per line.
• Communication: Integrated Ethernet Port (LAN) for programming and communication with other devices (like other LOGO! modules, Siemens S7 PLCs, or HMIs).
• Programming: Can be programmed using Siemens LOGO! Soft Comfort software or via the built-in keypad and display.

---



## Functionality and Applications



The Siemens LOGO! 24CE is a versatile controller that bridges the gap between simple relays and complex PLCs. Its key features include:

• Integrated Web Server: Allows you to monitor and control your application remotely using a standard web browser on a PC or smartphone, without any HTML programming required.
• Data Logging: Can log process data to internal memory or an external microSD card.
• Easy Programming: Uses a simple, function-block-based drag-and-drop programming interface, making it accessible for both beginners and experienced users.

It is commonly used for tasks such as:

• Lighting and HVAC control in buildings
• Pump and motor control
• Small machine automation
• Conveyor systems and gate controls
