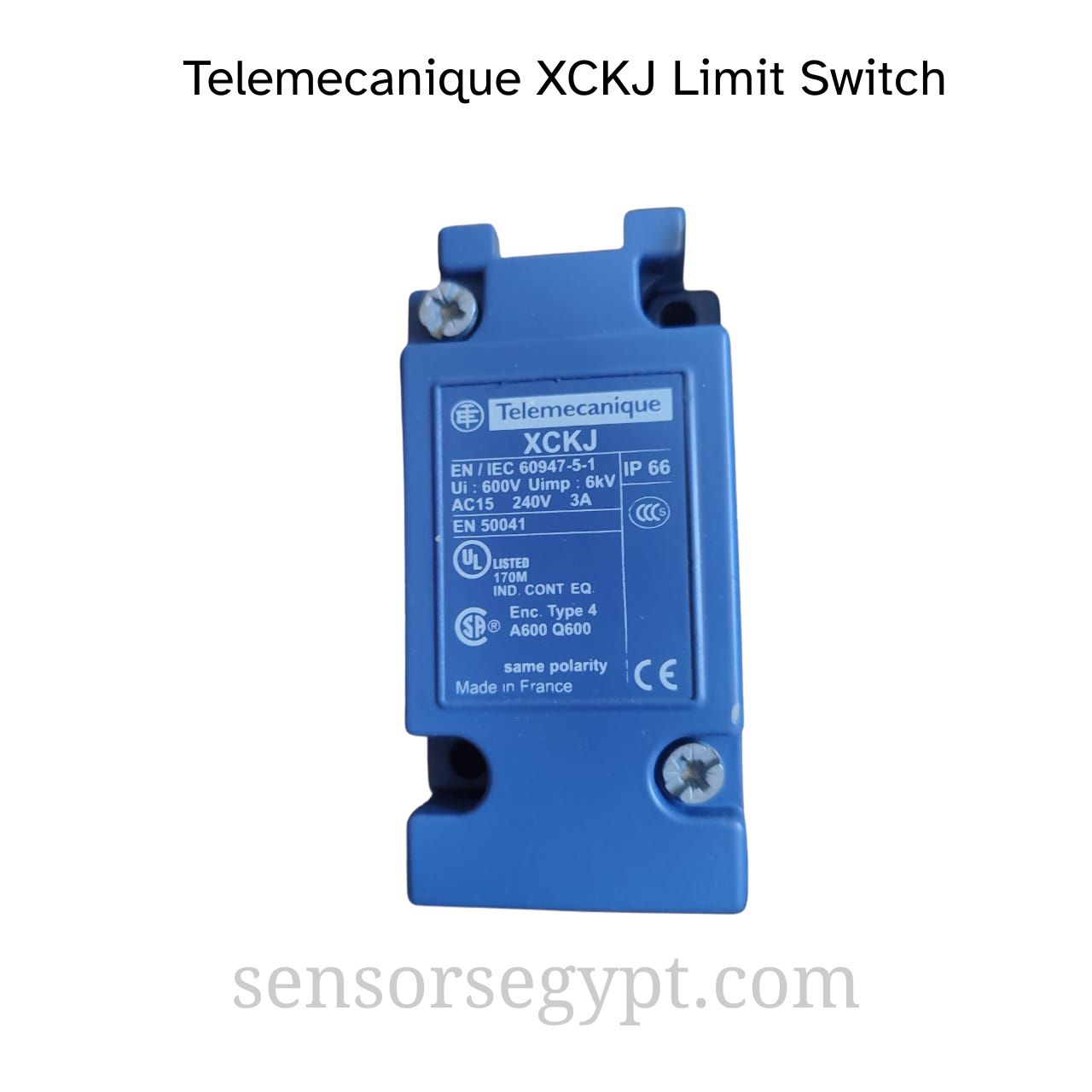

Telemecanique OsiSense XC Limit Switch Body



Product Family: XCKJ

---



1. General Description



The Telemecanique XCKJ is a robust limit switch body designed for heavy-duty industrial applications. As part of the OsiSense XC standard format series (now from Schneider Electric), it serves as the core component of a complete limit switch assembly. Its rugged metal enclosure makes it ideal for position sensing and presence/absence detection in demanding environments like material handling, packaging, and machine tools.

The XCKJ series is highly modular, allowing various contact blocks and a wide range of operating heads to be attached to this body to create a customized switch for a specific task.



Key Features 🎯



• Heavy-Duty Construction: Features a durable Zamak (metal alloy) body for excellent mechanical protection.
• High Protection Rating: IP66 rating ensures it is dust-tight and protected against powerful water jets.
• Modular Design: Fully interchangeable with a wide variety of XCK operating heads and contact blocks.
• Global Standard: Designed to the CENELEC EN 50041 standard format for universal mounting compatibility.

---



2. Technical Specifications





Electrical Data (as per label)





Mechanical & Environmental Data





Component Options



• Contact Blocks: The body can be fitted with various snap-action or slow-break contact blocks (e.g., ZCE01, ZCE02) providing configurations like 1NO+1NC, 2NC, 2NO, etc.
• Operating Heads: A vast range of actuators can be mounted, including roller plungers, rotary levers, multi-directional wands, and pull-wire heads.

---



3. Certifications



• CE: Compliant with European standards.
• UL Listed: (170M) For the US market.
• CSA Certified: (A600, Q600) For the Canadian market.
• CCC: For the Chinese market.
