Key Specifications

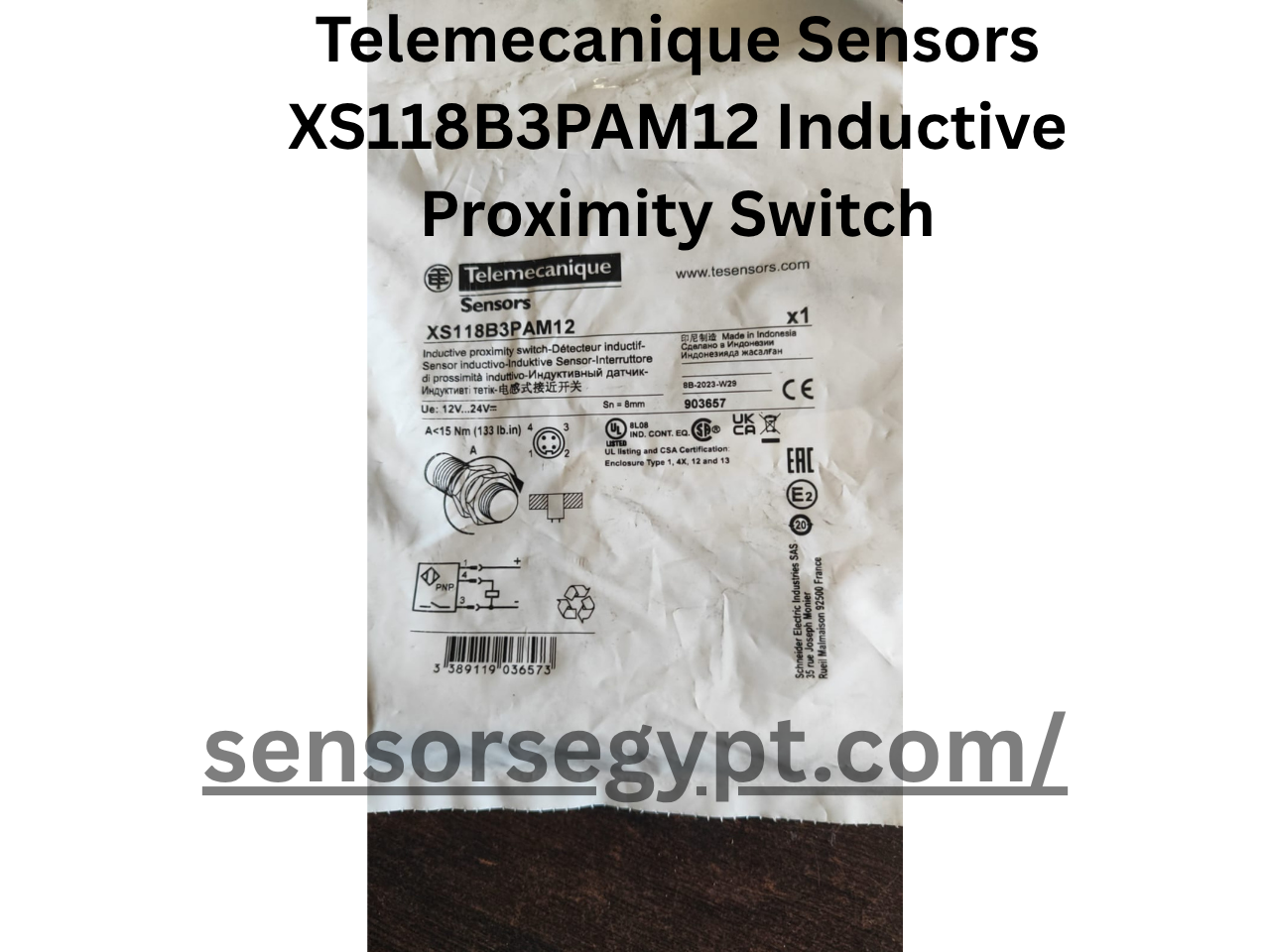

• Model Number: XS118B3PAM12
• Sensor Type: Inductive Proximity Switch
• Nominal Sensing Distance (Sn​): 8 mm

---



Electrical Data



• Operating Voltage (Ue​): 12V to 24V DC
• Output Type: PNP (Positive-Negative-Positive)
• Switching Function: Normally Open (NO). The sensor’s output turns ON when a metal object is detected.
• Wiring: 3-wire configuration.
  • Pin 1 (Brown): +V (Positive Supply)
  • Pin 3 (Blue): 0V (Negative / Ground)
  • Pin 4 (Black): Signal Output

---



Mechanical & Environmental Data



• Body Size: M18 (inferred from the model number “18” and high torque rating).
• Maximum Tightening Torque: 15 Nm (Newton-meters)
• Enclosure Rating: Type 1, 4X, 12, and 13. Provides robust protection against dust, water, and oil.

---



Manufacturing & Certifications



• Manufacturer: Schneider Electric Industries SAS
• Country of Origin: Indonesia
• Certifications: UL Listed, CSA, CE, UKCA, and EAC.
