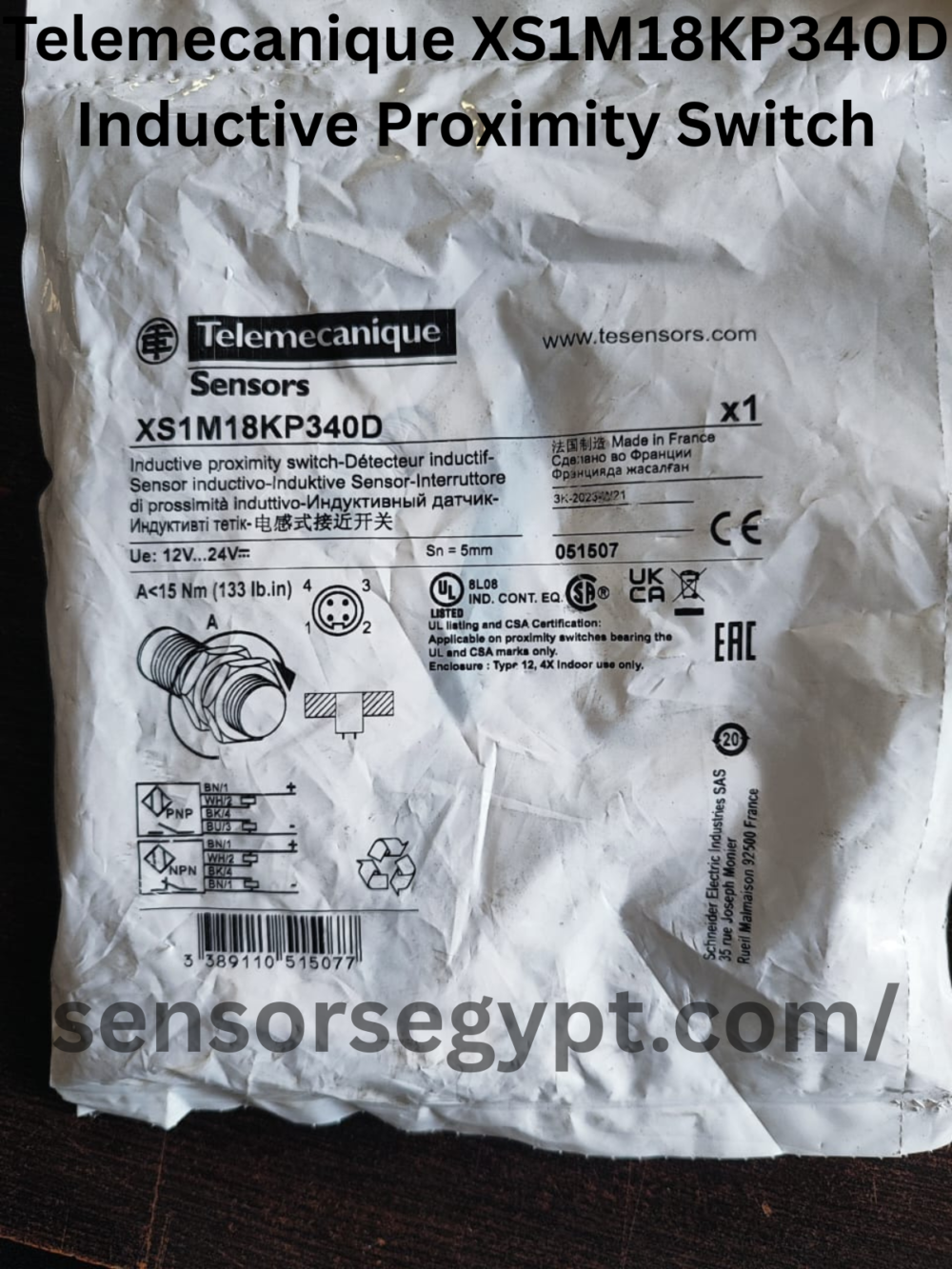

Key Specifications



• Brand: Telemecanique Sensors (Schneider Electric)
• Model Number: XS1M18KP340D
• Sensor Type: Inductive Proximity Switch
• Nominal Sensing Distance (Sn​): 5 mm
• Mounting: Non-flush mountable (the sensing face must protrude from any surrounding metal).

---



Electrical Data



• Operating Voltage (Ue​): 12V to 24V DC
• Output Type: PNP, 3-wire, Normally Open (NO).

---



Mechanical & Connection Data



• Body Size: M18 (18 mm diameter threaded body).
• Connection Type: M12, 4-pin connector (utilizing 3 pins for operation).
• Maximum Tightening Torque: 15 Nm (133 lb.in).

---



Manufacturing & Certifications



• Manufacturer: Schneider Electric Industries SAS
• Made in: France
• Enclosure Rating: Type 12, 4X (for indoor use only).
• Certifications: CE, UKCA, EAC, UL Listed, and CSA Certified.
