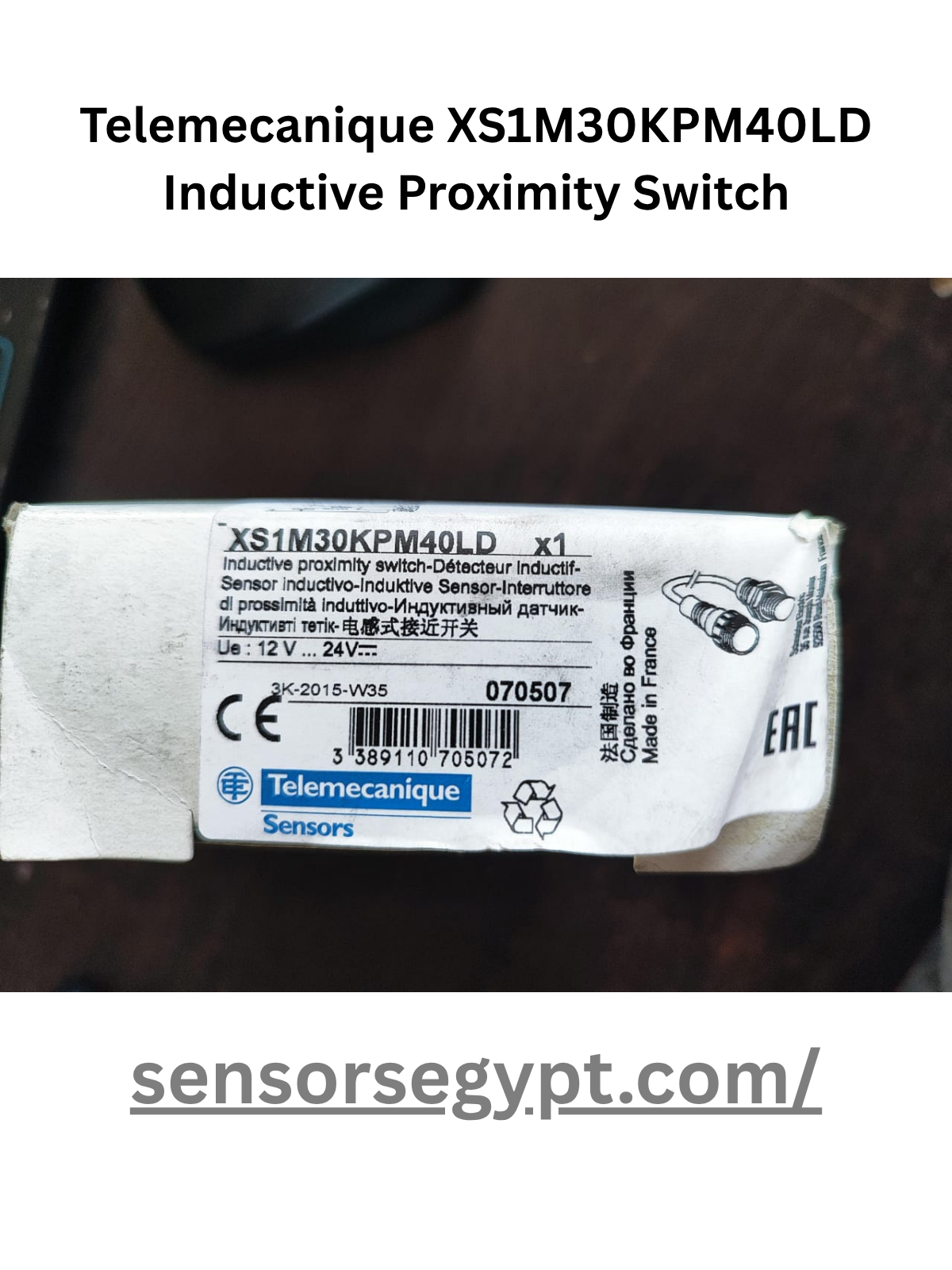

Key Specifications

• Brand: Telemecanique Sensors (Schneider Electric)
• Model Number: XS1M30KPM40LD
• Sensor Type: Inductive Proximity Switch
• Nominal Sensing Distance (Sn​): 10 mm
• Mounting: Flush mountable (can be embedded level with a surrounding metal surface).

Electrical Data

• Operating Voltage (Ue​): 12V to 24V DC
• Output Type: PNP, 4-wire, with complementary (dual) outputs.
  • Important Note: This advanced sensor provides both a Normally Open (NO) and a Normally Closed (NC) signal at the same time. This offers great flexibility for complex control circuits without needing extra components.
• Wiring (M12 4-pin Connector):
  • Pin 1: +V (Positive Supply)
  • Pin 2: Output 2 (Normally Closed – NC)
  • Pin 3: 0V (Negative / Ground)
  • Pin 4: Output 1 (Normally Open – NO)

Mechanical & Connection Data

• Body Size: M30 (30 mm diameter threaded body).
• Connection Type: M12, 4-pin connector.

Manufacturing & Certifications

• Manufacturer: Schneider Electric Industries SAS
• Made in: France
• Certifications: CE, EAC.
