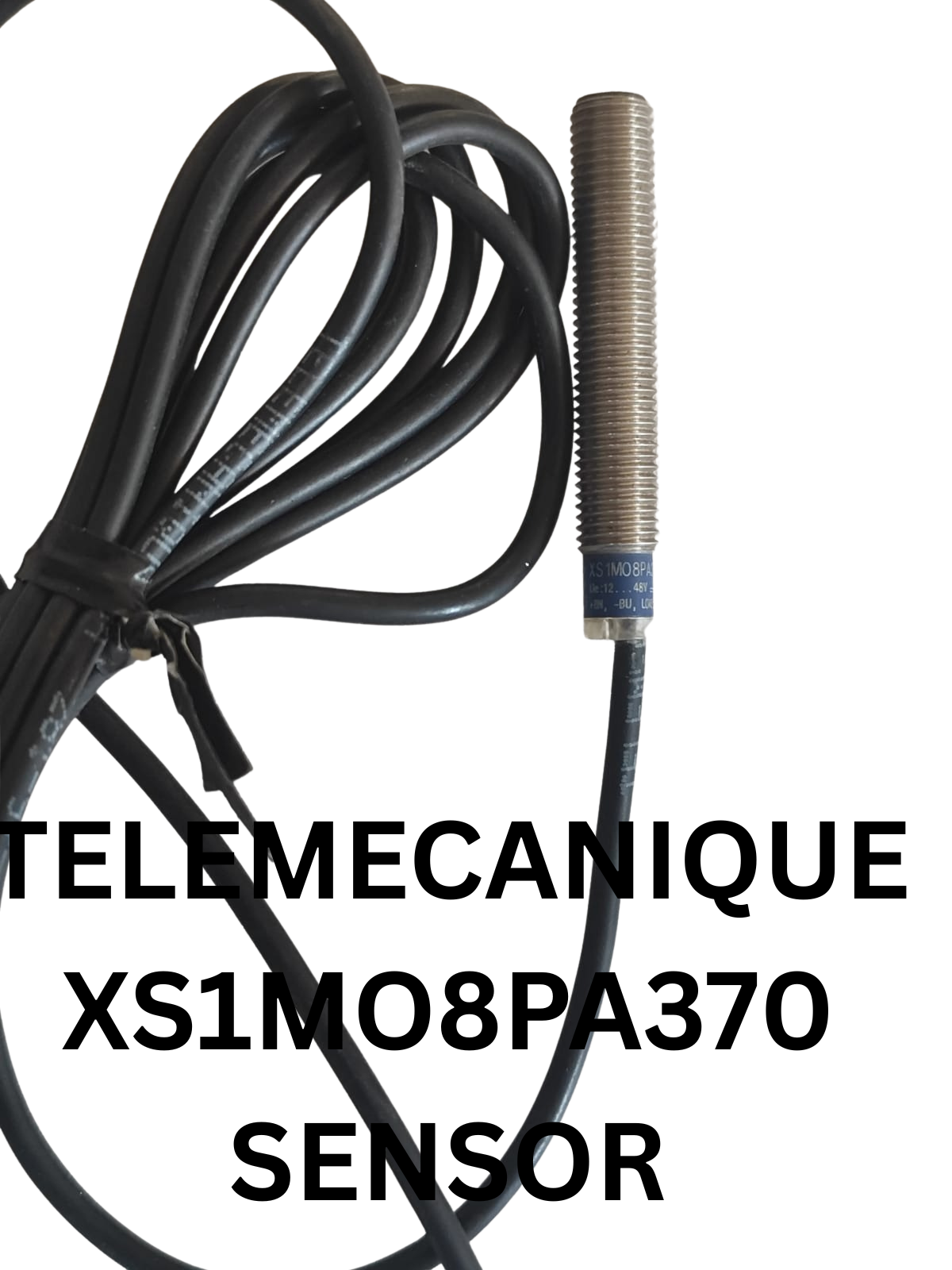

Manufacture: Telemecanique
Type: Inductive proximity sensor
Model: XS1M08PA370

Sensing Range: 1.5 mm
Operating Voltage: 12 … 48 V DC
Switching Capacity: 0 … 200 mA
Connection: Pre-cabled, 3 x 0.11 mm2, length 2 m (1)
Output state indication: LED annular
No-Load Supply Current: ≤ 10 mA
Maximum Voltage Drop: <= 2 V
Switching Frequency: 5000 Hz
Signal Output: PNP
Switching Output: Normally Open
Sensor Design: Cylindrical M8
Electrical Connection: Connector M12
Degree of Protection: IP67
Overall Length: 50 mm
Cable length: 2 m
Ambient Operating Temperature: -25 … 80 °C
Housing Material: Metal

Mounting: Flush-Mountable

TELEMECANIQUE ZCMC21E2 sensor
