Key Specifications



• Brand: Telemecanique Sensors (Schneider Electric)

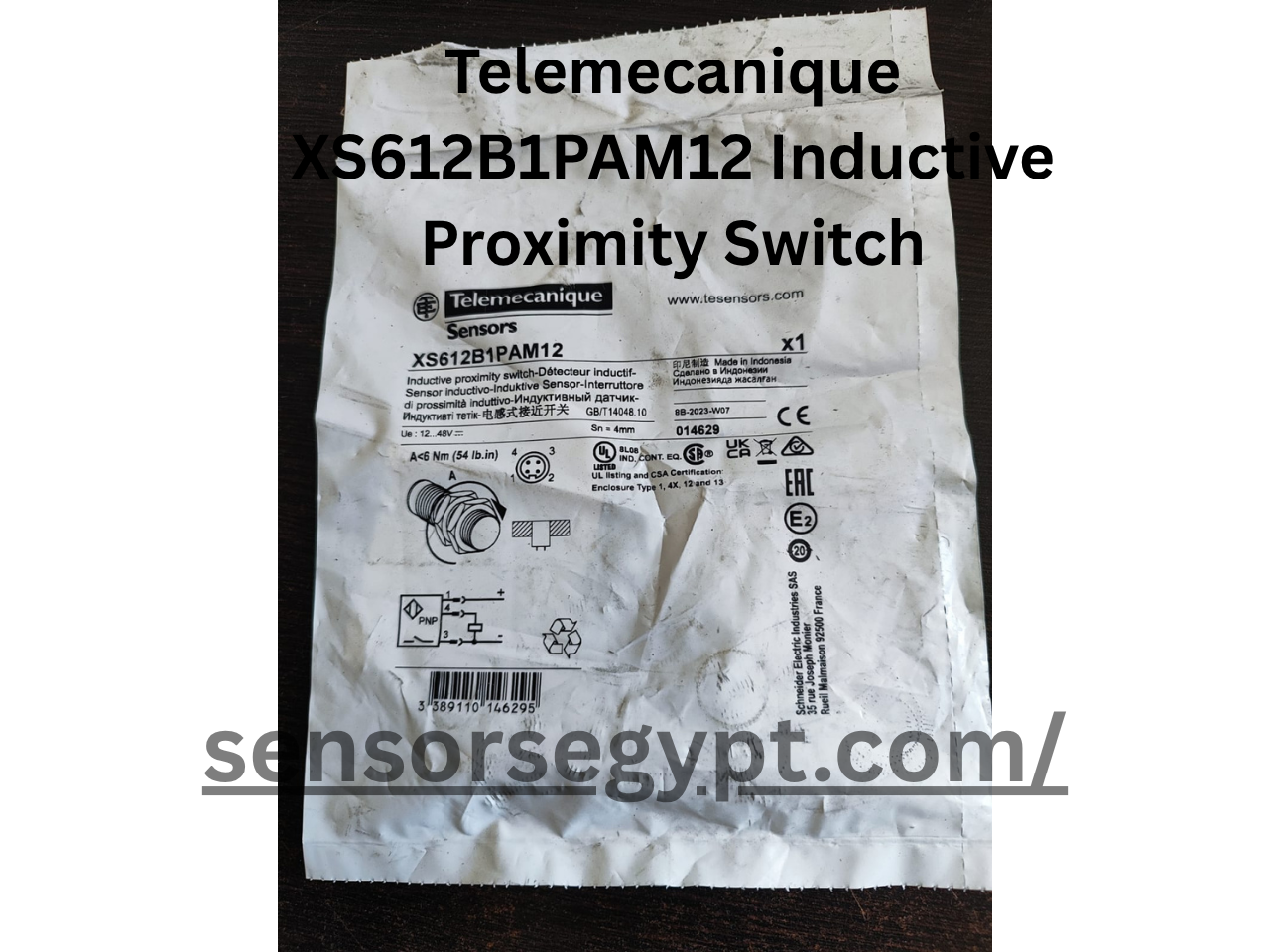

• Model Number: XS612B1PAM12
• Sensor Type: Inductive Proximity Switch
• Nominal Sensing Distance (Sn​): 4 mm

---



Electrical Data



• Operating Voltage (Ue​): 12V to 48V DC. (Note the extended range up to 48V DC, making it suitable for systems using 48V logic).
• Output Type: PNP, 3-wire, Normally Open (NO).
• Wiring (M12 Connector):
  • Pin 1 (Brown): +V (Positive Supply)
  • Pin 3 (Blue): 0V (Negative / Ground)
  • Pin 4 (Black): Signal Output

---



Mechanical & Environmental Data



• Body Size: M12 (inferred from the “12” in the model number).
• Maximum Tightening Torque: 6 Nm (Newton-meters)
• Enclosure Rating: Type 1, 4X, 12, and 13 (Provides protection against dust, water, and oil).

---



Manufacturing & Certifications



• Manufacturer: Schneider Electric Industries SAS
• Made in: Indonesia
• Certifications: UL, CSA, CE, UKCA, and EAC.
