TR-Electronic Absolute Encoder



Type: CEV65M

Article Number: CEV65M-00444

---



1. General Description



The TR-Electronic CEV65M-00444 is a robust, programmable absolute multi-turn encoder. It is designed to provide precise position feedback for both the angle (single-turn) and the number of rotations (multi-turn).

Its key feature is its programmability via the “TR-WinProg” software, allowing users to set the resolution, counting direction, and preset values. It communicates using the industry-standard Synchronous Serial Interface (SSI) with a noise-immune RS 422 output level, making it ideal for a wide range of industrial automation and motion control applications.



Key Features 🎯



• Absolute Multi-Turn: Provides unique position data for every shaft position, even after a loss of power.
• Fully Programmable: Resolution (steps per revolution) and the number of revolutions are programmable.
• SSI Interface: Uses the reliable Synchronous Serial Interface for data transmission.
• RS 422 Output: Provides a high-speed, differential (RS 422) signal for excellent noise immunity.
• Wide Voltage Range: Operates on a flexible 11…27 VDC supply.
• Robust Housing: Standard 65 mm industrial housing for high durability.

---



2. Technical Specifications





Electrical & Performance Data



Parameter	Value
Supply Voltage (Spannung)	11 … 27 VDC
Interface (Schnittstelle)	SSI (Synchronous Serial Interface)
Output Level (Ausgangspegel)	RS 422 (Differential Line Driver)
Single-turn Resolution	Programmable (Prog.), up to 8192 (13 Bit)
Number of Revolutions	Programmable (Prog.), up to 4096 (12 Bit)
Total Resolution	Up to 25 Bit (13 Bit + 12 Bit)
Programmability	Via “TR-WinProg” software (Option)



Mechanical & Environmental Data



Parameter	Value
Housing Diameter	65 mm (from “CEV65M”)

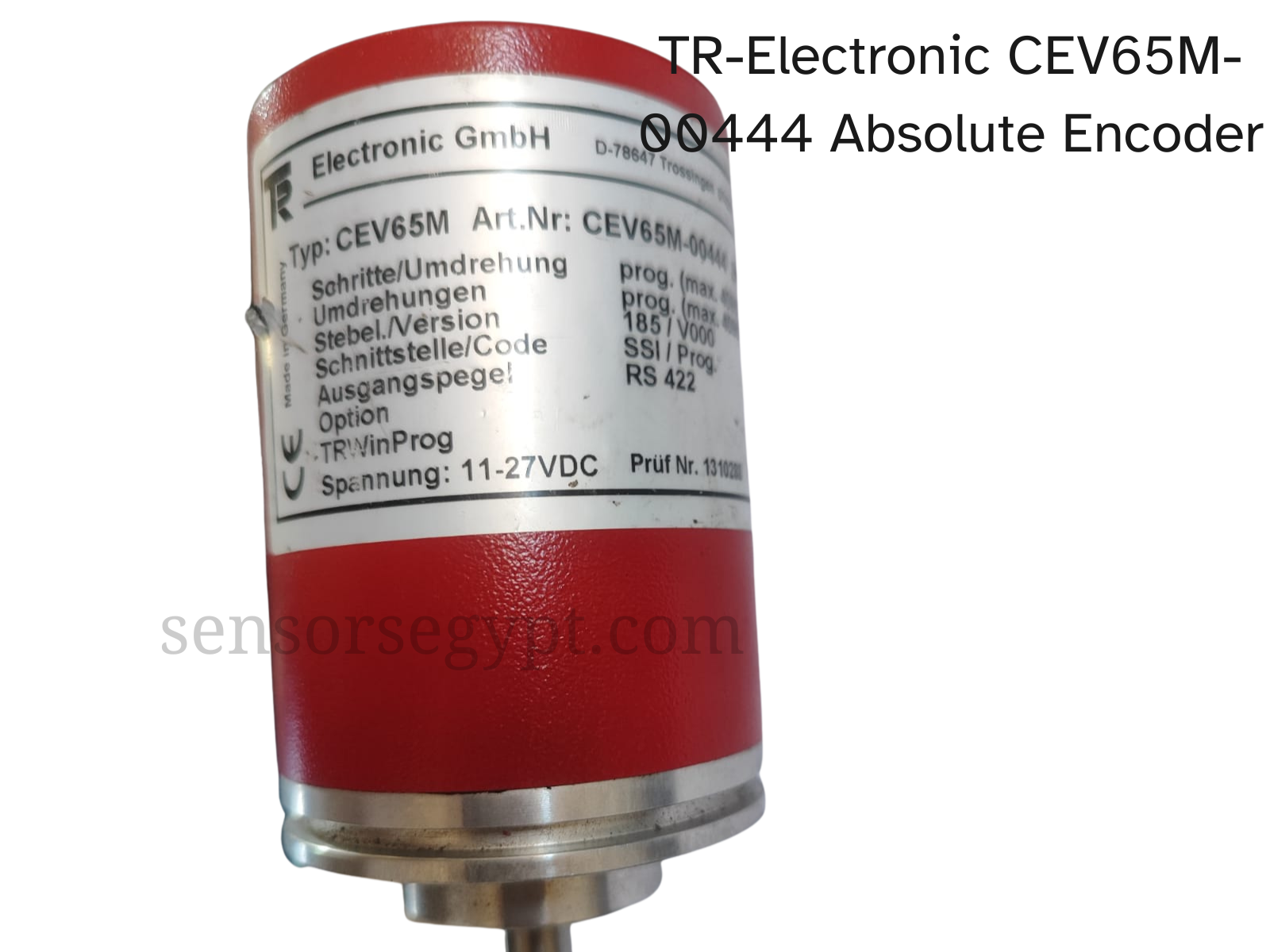

Shaft Type	Solid Shaft (as seen in image)
Shaft Diameter	10 mm or 12 mm (Typical for this series)
Enclosure Protection	IP65 (Typical)
Operating Temperature	-20°C to +70°C (Typical)
Connection	Typically 12-pin M23 connector or cable

---



3. Interface & Wiring (Typical SSI)



This encoder uses an SSI interface with RS 422 drivers. The connection provides power and differential clock/data lines.

Typical M23 12-pin Connector Pinout:

Pin	Function	Description
1	GND	Power Supply 0V
2	+UB	Power Supply + (11-27 VDC)
3	CLOCK +	Clock Signal (RS 422)
4	CLOCK -	Inverted Clock Signal (RS 422)
5	DATA +	Data Signal (RS 422)
6	DATA -	Inverted Data Signal (RS 422)
7, 8	N.C.	Not Connected
9	PROG +	Programming Pin
10	PROG -	Programming Pin
11, 12	N.C.	Not Connected
