General Information



• Brand: TR-Electronic GmbH

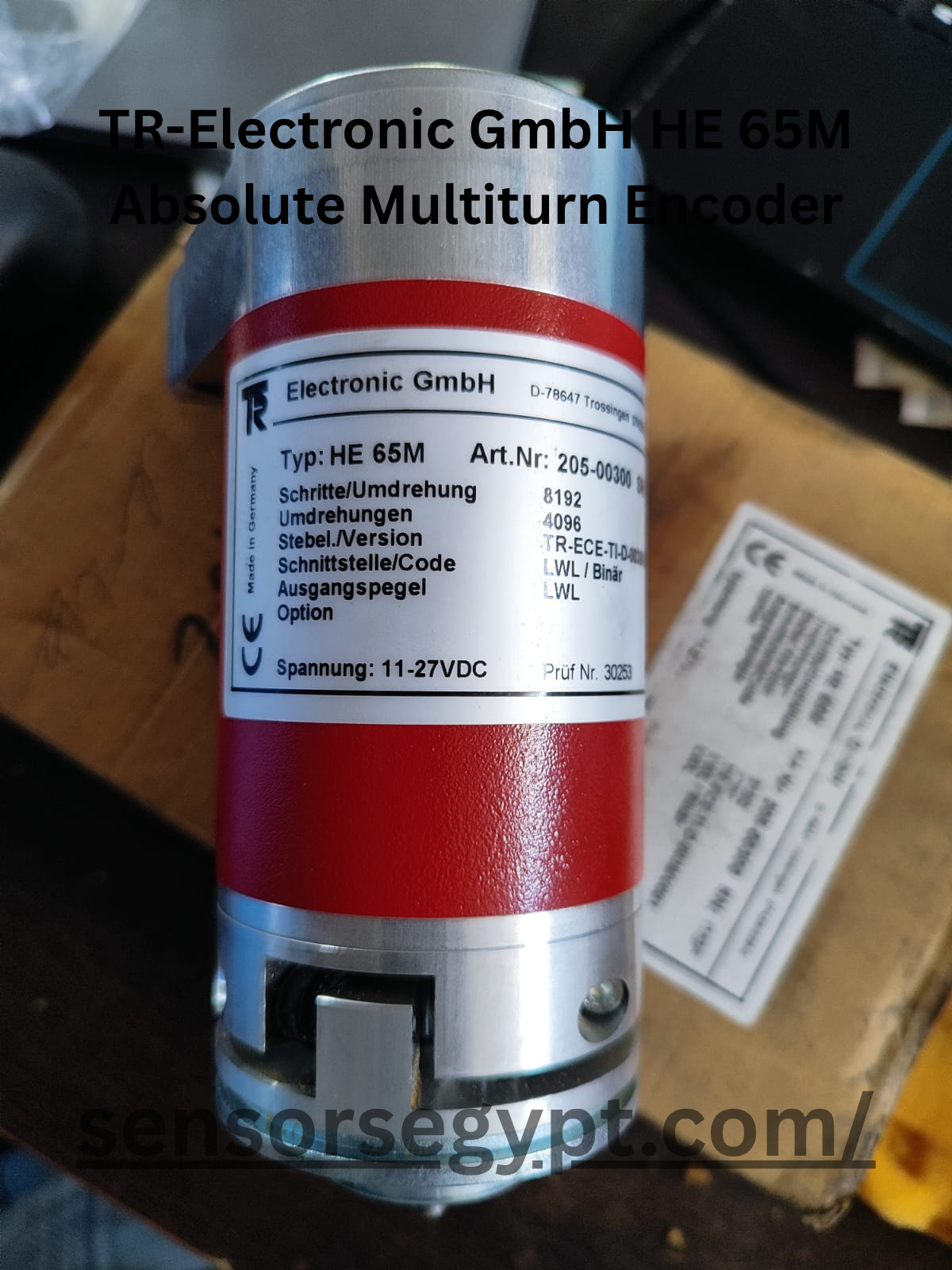

• Product Type: Absolute Multiturn Encoder
• Type (Typ): HE 65M
• Article No. (Art.Nr.): 205-00300

---



Performance Data



• Communication Interface: Fiber Optic (LWL – Lichtwellenleiter)
• Resolution: 25 bit (Total)
  • Singleturn (Schritte/Umdrehung): 13 bit (8,192 steps per revolution)
  • Multiturn (Umdrehungen): 12 bit (4,096 revolutions)
• Output Code: Binary (Binär)

---



Mechanical Data



• Shaft Type: Blind hollow shaft with a clamp.
• Housing Diameter: 65 mm (inferred from model “HE 65M”).

---



Electrical Data



• Supply Voltage (Spannung): 11V to 27V DC

---



Manufacturing



• Made in: Germany
