Diffuse, Background suppression

……………………………………………………

Common Data

Switching frequency. 500 Hz

Ambient temperature. -20…+60°C

On-delay. 1ms

Off-delay <0,5ms

Light. Red light

Sensitivity Adjustment. Teach in

Permissable ambient light. 5000 Lux

Output function. light-on or dark-on

Rated operational voltage Ue. 24V DC

Rated operational current Ie. 200mA

Supply Voltage. 10…30V DC

Ripple. < 10% from UB

max. Load capacity. 0,33µF

#Photoelectric #Sensorinegypt

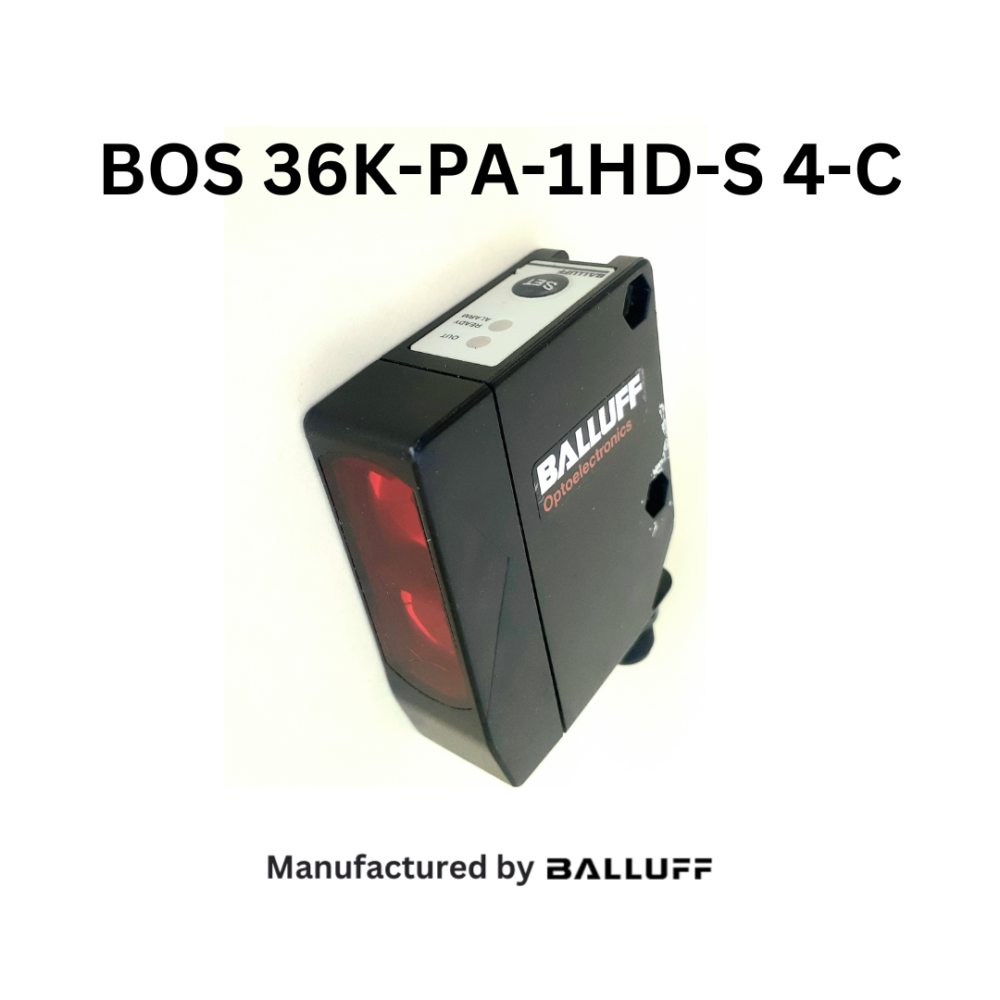

BOS 36K-PA-1HD-S 4-C

Sn=500mm

#Diffuse, Background suppression
