QMT42VP6AFV400Q – Banner Engineering QM42 Series: Adjustable Field, Range: 25 to 400 mm; Input: 10-30V dc, Output: SPDT (Complementary) PNP, Quick-Disconnect Connector

Overview

• Features compact, low-cost dc sensors in NEMA 6 (IEC IP67) die-cast housings

• Technical Datasheet: Banner QMT42VP6AFV400Q Photoelectric Sensor

  The QMT42VP6AFV400Q is a high-performance photoelectric sensor from Banner Engineering’s QMT42 series. This sensor is designed for industrial automation tasks requiring precise object detection and robust performance in challenging environments.

  1. General Specifications

  • Manufacturer: Banner Engineering

  • Model Number: QMT42VP6AFV400Q

  • Sensor Type: Photoelectric Sensor

  • Compliance: CE Certified

  ---

  2. Electrical Characteristics

  Parameter	Value
  Operating Voltage	10–30V DC
  Maximum Load Current	100mA
  Output Type	PNP
  Output Configuration	Complementary (Normally Open & Normally Closed)

  ---

  3. Functional Design

  • Sensing Mode: Adjustable Field (AFV) / Fixed-field background suppression.

  • Sensing Range: Up to 400mm (nominal).

  • Housing Material: Durable, industrial-grade rectangular housing designed for versatile mounting.

  • Connector Type: Integrated M12 (Euro-style) 4-pin male quick-disconnect connector.

  ---

  4. Wiring and Pinout Configuration

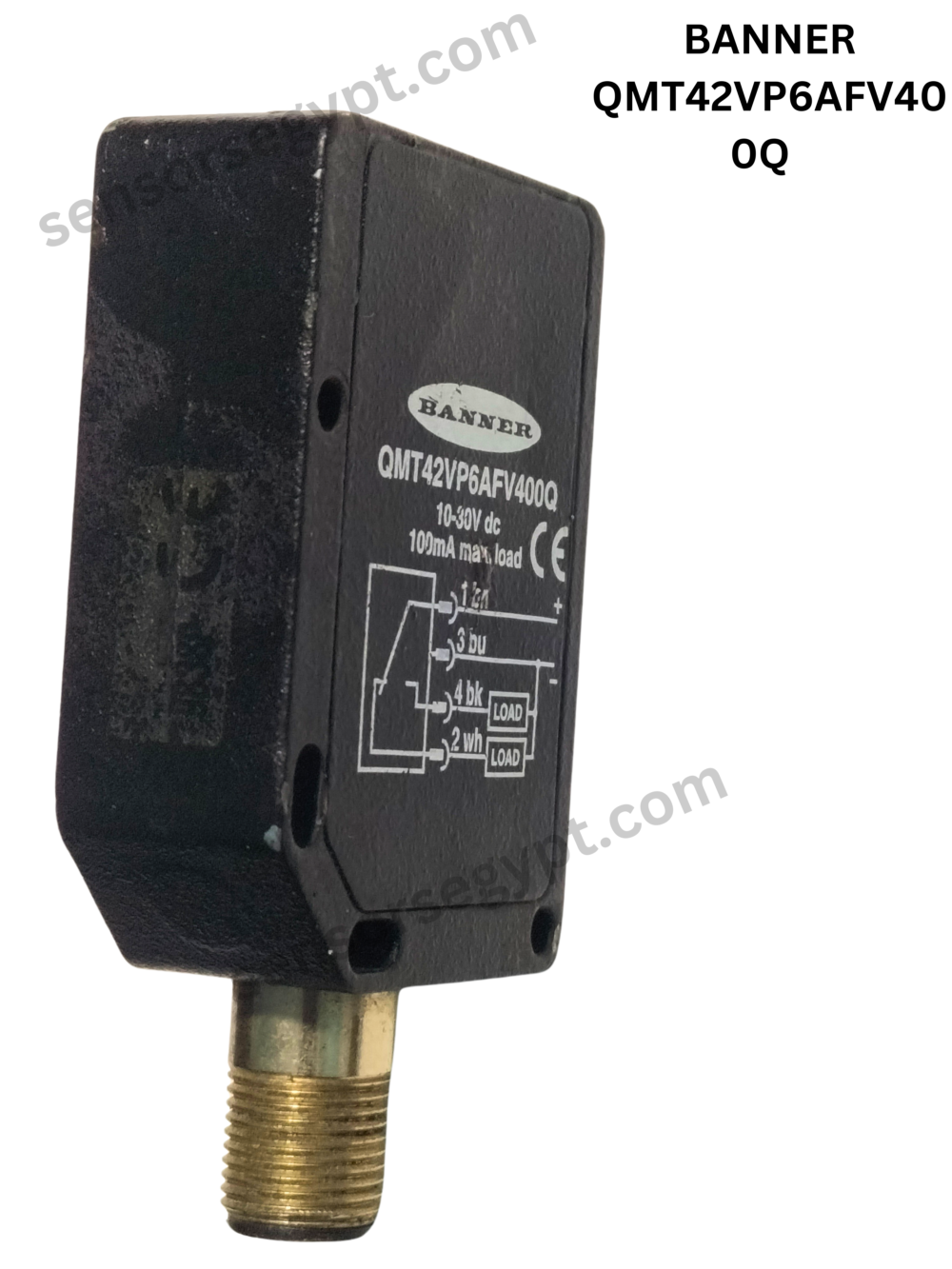

  As indicated by the wiring diagram on the device, the sensor uses a standard 4-pin configuration:

  • 1 BN (Brown): Positive Power Supply (+10 to 30V DC)

  • 3 BU (Blue): Negative Power Supply (0V / Ground)

  • 4 BK (Black): PNP Output 1 (Load)

  • 2 WH (White): PNP Output 2 (Load)

  ---

  5. Application Focus

  • Background Suppression: Effectively ignores objects beyond the set cutoff point, making it ideal for detecting targets on conveyor belts with busy backgrounds.

  • Material Handling: Reliable detection of packages, parts, and machinery components.

  • Industrial Automation: Suitable for integration with PLCs and high-speed control systems.
