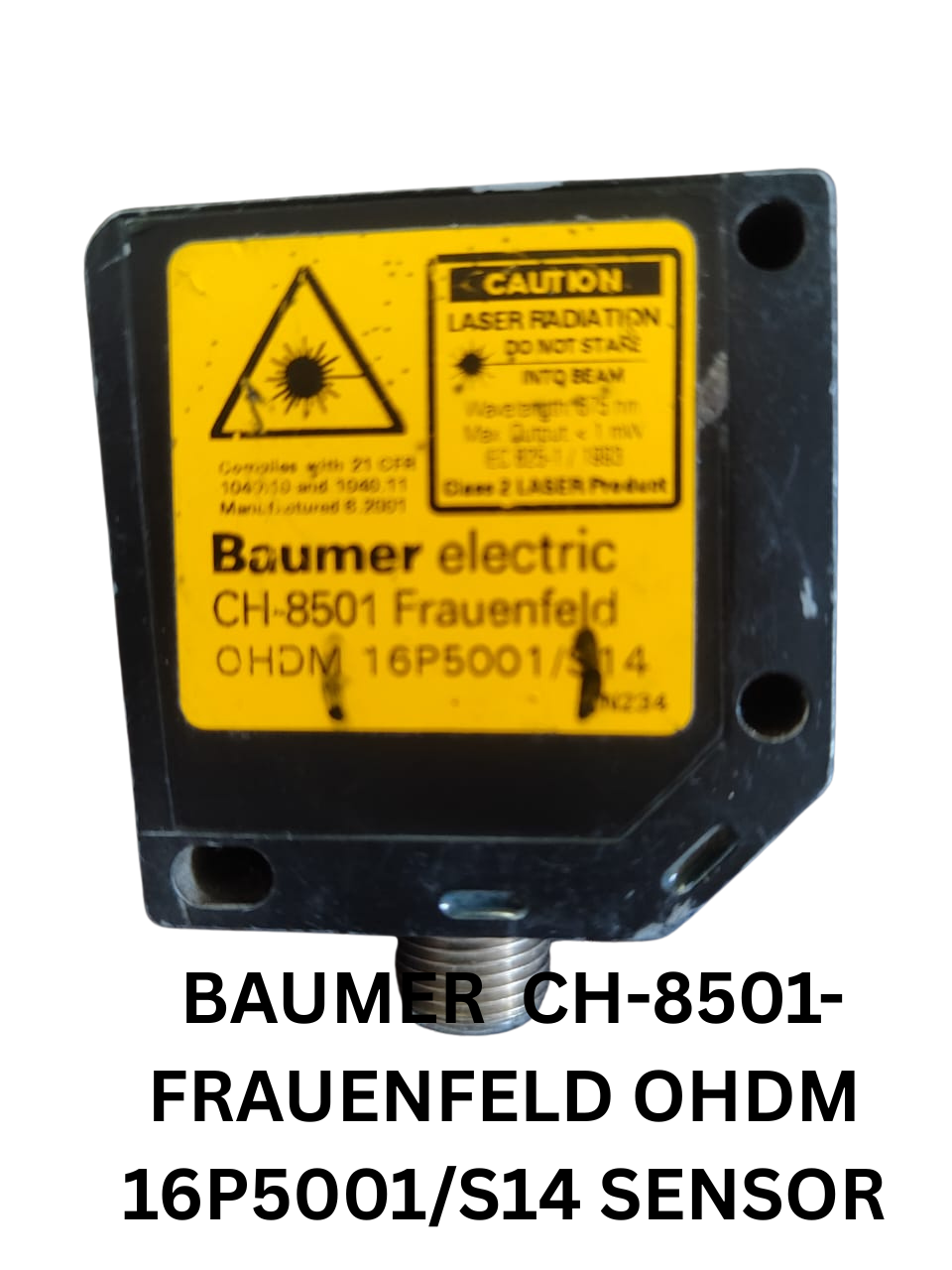

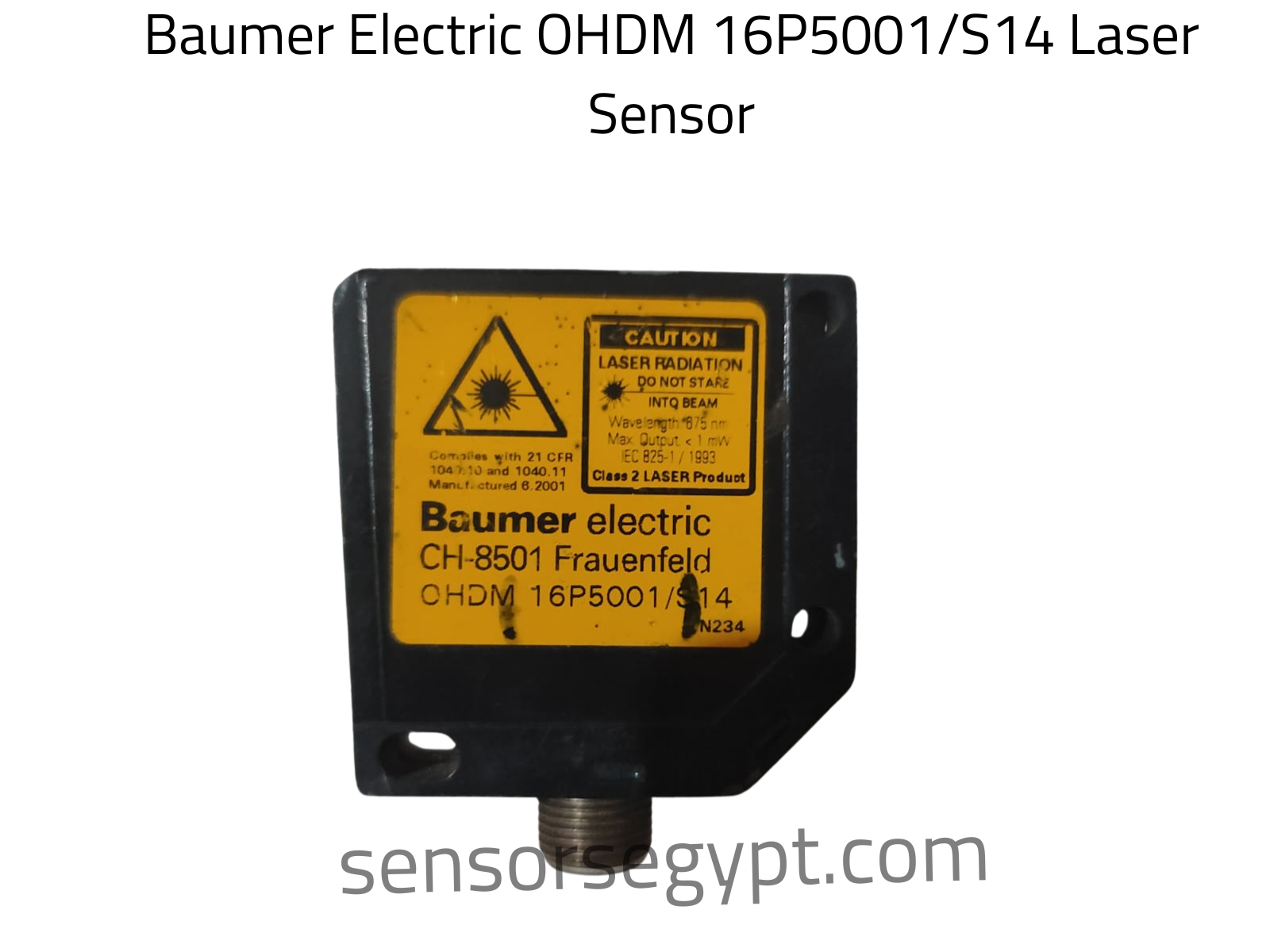

Technical Datasheet: Baumer Electric OHDM 16P5001/S14 Laser Sensor

The OHDM 16P5001/S14 is a high-precision laser distance sensor designed for industrial automation tasks requiring accurate measurement and non-contact detection. Manufactured by Baumer Electric, this Class 2 laser product provides reliable performance in a compact, robust housing.

1. General Specifications

• Manufacturer: Baumer electric

• Model Number: OHDM 16P5001/S14

• Location: CH-8501 Frauenfeld

• Laser Class: Class 2 LASER Product

• Date of Manufacture: June 2001

---

2. Optical Characteristics

• Beam Type: INTQ BEAM

• Wavelength: 675 nm

• Maximum Output: < 1 mW

• Standard Compliance: IEC 825-1 / 1993; Complies with 21 CFR 1040.10 and 1040.11

---

3. Functional Features

• Detection Technology: Laser-based precision sensing.

• Safety Warning: CAUTION – LASER RADIATION – DO NOT STARE INTO BEAM.

• Housing Design: Rugged rectangular body with integrated mounting holes for secure industrial installation.

• Indicator: Top-facing laser warning and status labeling.

---

4. Connection & Mechanical Data

• Connector Type: Integrated M12 threaded industrial connector for quick-disconnect cabling.

• Mounting: Three-point mounting configuration for stable alignment in machinery.

---

5. Application Focus

• Distance Measurement: High-resolution monitoring of object position.

• Packaging & Logistics: Accurate height or presence detection on high-speed conveyors.

• Quality Control: Checking tolerances and dimensions in manufacturing processes.

---
