General Information



• Brand: Baumer
• Product Type: Incremental Encoder

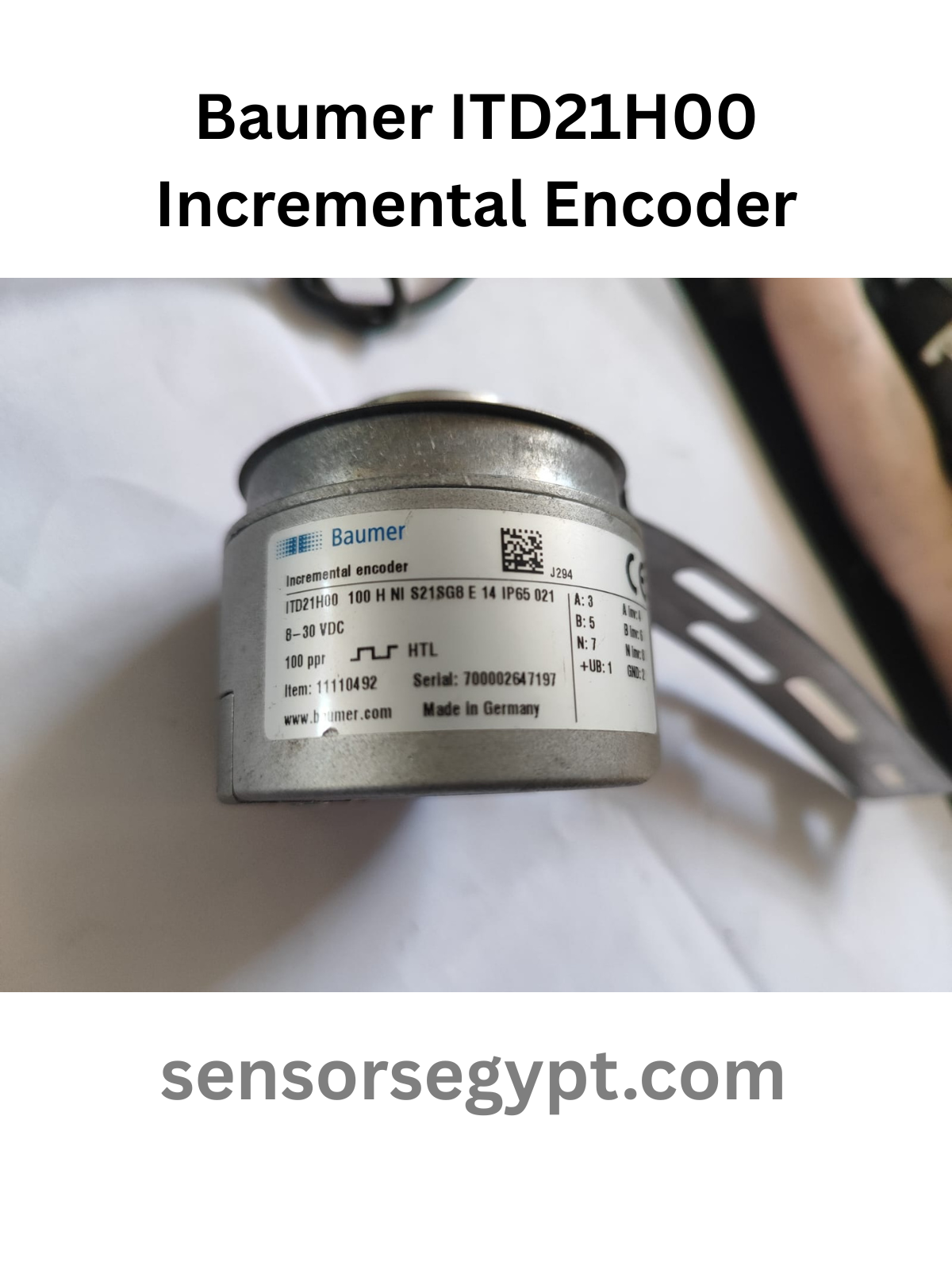

• Model: ITD21H00
• Item No.: 11110492

---



Performance Data



• Resolution: 100 Pulses Per Revolution (PPR)
• Output Driver: HTL (Push-Pull)
• Output Channels: A, B, and N (Zero pulse/Index)

---



Mechanical Data



• Shaft Type: Blind hollow shaft
• Shaft Diameter: 14 mm

---



Electrical Data



• Supply Voltage: 8V to 30V DC
• Connection Type: Pre-wired cable
• Wiring:
  • 1 (+UB): Red wire (Supply Voltage)
  • 2 (GND): Blue wire (Ground)
  • 3 (A): Green wire (Channel A)
  • 5 (B): Yellow wire (Channel B)
  • 7 (N): White wire (Channel N / Zero pulse)

---



Environmental & Manufacturing



• IP Rating: IP65
• Made in: Germany
• Serial No.: 700002647197
