Technical Datasheet: di-soric D7C 18 V 20 PSK-IBSL

Part Number / Type: D7C 18 V 20 PSK-IBSL

Product Category: Metal Sensing Proximity Switch (Induktiver Näherungsschalter)

1. Product Characteristics & Application

• Sensor Type: Inductive Proximity Sensor

• Housing Design: Threaded cylindrical barrel type (M18 designator indicated by the 18 in the part number).

• Sensing Range (sn): 20 mm (Ultra-extended sensing range for an M18 housing diameter).

• Mounting: Non-flush mountable (indicated by the label text: nicht bündig einbaubar / non noyable dans le métal / for non-flush mounting).

• Special Features: Engineered with a high-performance, ultra-extended 20 mm non-flush sensing window. This allows the sensor to be mounted far away from high-vibration or fast-moving mechanical components, eliminating the risk of physical impact damage. Perfect for heavy industrial conveyor tracks, automotive staging areas, large packaging plants, and raw material handling systems.

2. Electrical Data

• Operating Voltage (UB): 10…30 V DC

• Rated Operational Current (IA): ≤ 200 mA max.

• Electrical Design: DC PNP

• Output Function: Normally Open (NO) (indicated by: PNP Schliesser / PNP à fermeture / PNP normally open).

• Approvals: CE, ISO 9001 certified quality management loop.

3. Performance & Indicators

• Status Indicator: Integrated diagnostic LED indicator loop (LED siehe Rückseite / LED voir verso / LED see over).

• Short-Circuit & Reverse Polarity Protection: Yes

• Switching Frequency: High cyclic response speed optimized for long-range target tracking, rapid counting sequences, and structural synchronization loops.

4. Mechanical & Environmental Data

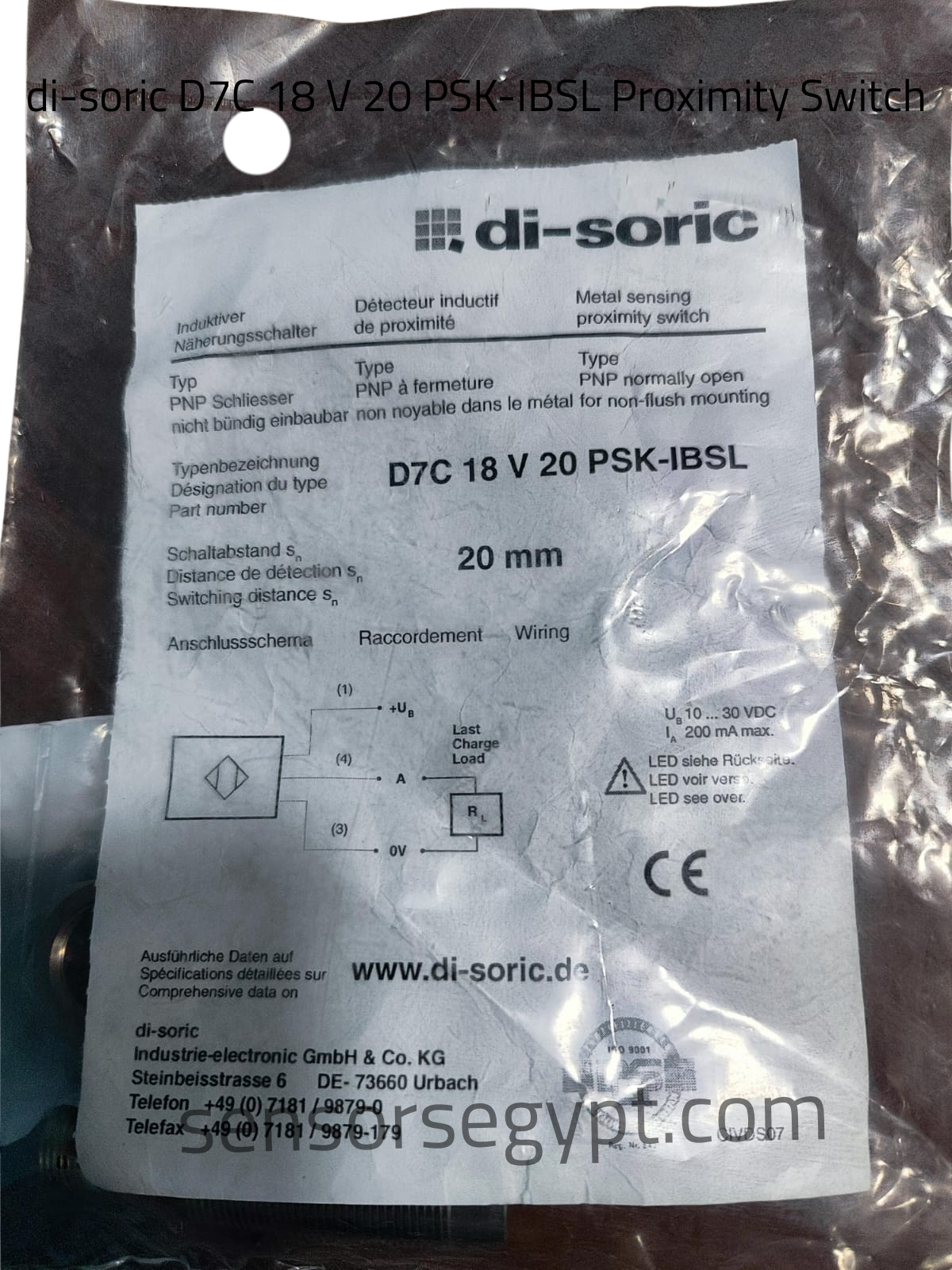

• Dimensions: M18 × 1 mm standard industrial metric threads (The metallic threaded barrel base is visible at the bottom of the pouch).

• Housing Material: Premium robust nickel-plated brass or highly durable metal alloy casing with superior impact and chemical resistance.

• Ambient Operating Temperature: Optimized for demanding automated industrial configurations.

• Manufacturer Location: di-soric Industrie-electronic GmbH & Co. KG | Steinbeisstrasse 6, DE-73660 Urbach, Germany.

• Code References: CIVDS07

5. Electrical Connection & Wiring Layout

The sensor utilizes a standard 3-pin operational output interface via an integrated quick-disconnect male connector socket.

Pinout Assignment:

• Pin 1: Brown wire reference → +UB (10…30 V DC Power Supply Input)

• Pin 4: Black wire reference → A (Active Normally Open Output Switching Signal to Load)

• Pin 3: Blue wire reference → 0V (Ground / Common line reference)

Wiring Diagram:

       [ Pin 1 ] ───────────────────────── ( + UB )
          │
      ┌───┴───┐
      │  PNP  │───────── [ Pin 4 ] ──── [ Load ] ────┐
      │  N.O. │                                      │
      └───┬───┘                                      │
          │                                          │
       [ Pin 3 ] ────────────────────────────────────┴─── ( 0V )
