Technical Datasheet: di-soric DCC 08 M 03 POK-IBSL

Part Number / Type: DCC 08 M 03 POK-IBSL

Product Category: Metal Sensing Proximity Switch (Induktiver Näهرونجsschalter)

1. Product Characteristics & Application

• Sensor Type: Inductive Proximity Sensor

• Housing Design: Threaded mini cylindrical barrel type (M8 designator indicated by the 08 in the part number).

• Sensing Range (sn): 3 mm (Extended high-performance range for its compact housing diameter).

• Mounting: Flush mountable (indicated by the label text: bündig einbaubar / noyable dans le métal / for flush mounting).

• Special Features: Part of di-soric’s high-reliability miniature series, engineered for precise contactless metal object detection. Its flush-mountable design allows for clean, embeddable installations directly into metal plates or machine housings, making it a perfect fit for compact robotic grippers, tight pneumatic actuators, micro-positioning links, and precision high-density manufacturing machinery.

2. Electrical Data

• Operating Voltage (UB): 10…30 V DC (For use in class 2 circuits)

• Rated Operational Current (IA): ≤ 200 mA max.

• Electrical Design: DC PNP

• Output Function: Normally Closed (NC) (Note: Please note this output function layout, as it runs on NC logic, meaning it cuts the signal upon target presence — indicated by: PNP Öffner / PNP à ouverture / PNP normally closed).

• Approvals: CE, cULus Listed (IND. CONT. EQ. 11RZ), ISO 9001 certified manufacture template.

3. Performance & Indicators

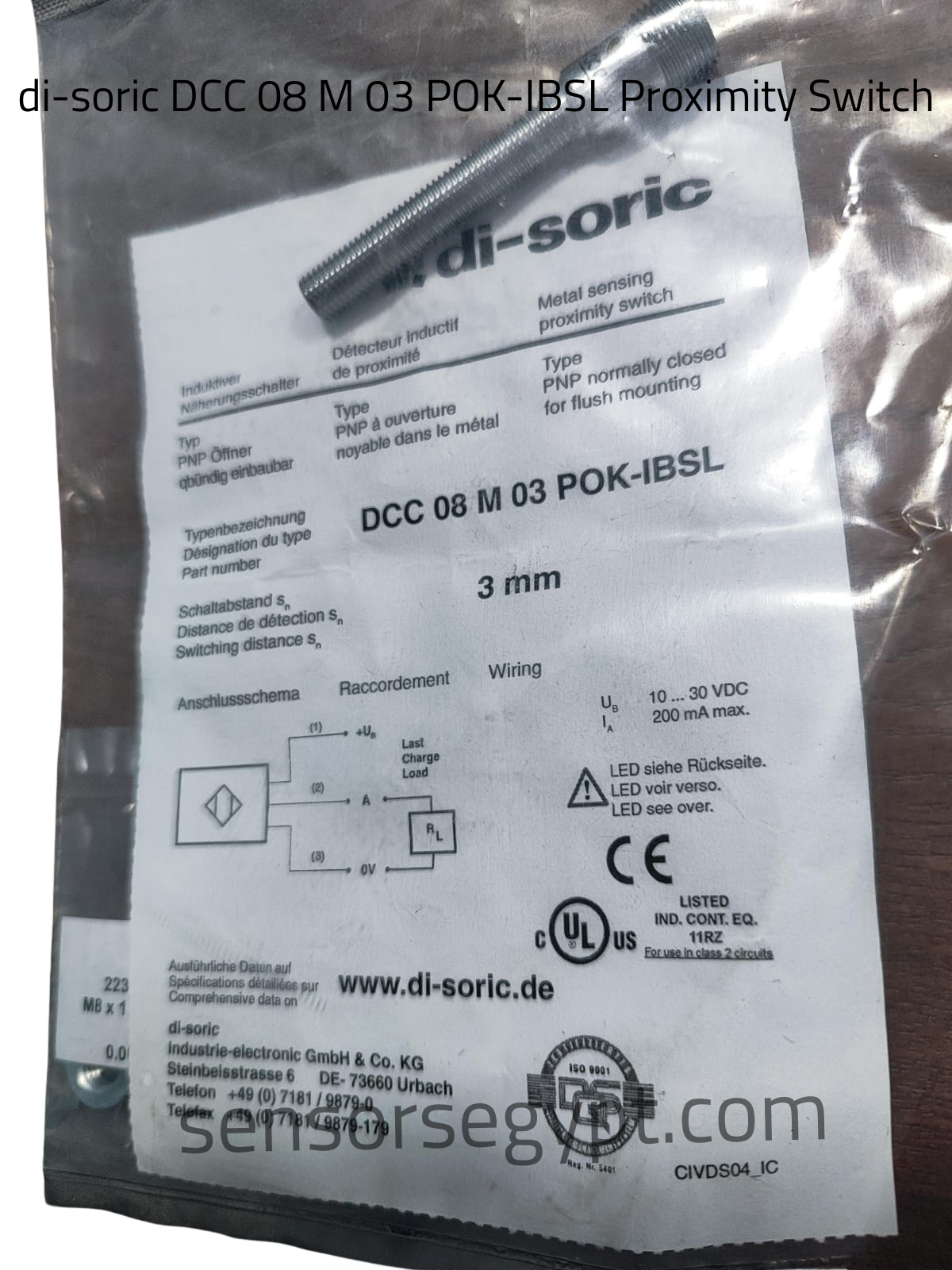

• Status Indicator: Integrated functional LED feedback loop (LED siehe Rückseite / LED voir verso / LED see over), also visible through the clear side ports near the sensor head socket in the image.

• Short-Circuit & Reverse Polarity Protection: Yes

• Switching Frequency: High responsive cyclic velocity optimized for rapid automation tracking, fast micro-indexing steps, and immediate feedback loop networks.

4. Mechanical & Environmental Data

• Dimensions: M8 × 1 mm standard industrial metric threads / Extra-long threaded shaft terminating directly into a quick-connect header socket.

• Housing Material: High-grade robust chrome-plated metal or stainless steel alloy casing with superior mechanical wear resistance.

• Ambient Operating Temperature: Standard industrial resilience profile.

• Manufacturer Location: di-soric Industrie-electronic GmbH & Co. KG | Steinbeisstrasse 6, DE-73660 Urbach, Germany.

• Code References: CIVDS04_IC / Reg. Nr. 5401

5. Electrical Connection & Wiring Layout

The sensor utilizes a standard 3-pin operational output interface configuration via an integrated compact circular male terminal block plug.

Pinout Assignment:

• Pin 1: Brown wire reference → +UB (10…30 V DC Power Supply Input)

• Pin 2: White or Black mapped wire reference → A (Active Normally Closed Switching Output Signal to Load)

• Pin 3: Blue wire reference → 0V (Ground / Common line)

Wiring Diagram (PNP Normally Closed):

       [ Pin 1 ] ───────────────────────── ( + UB )
          │
      ┌───┴───┐
      │  PNP  │───────── [ Pin 2 ] ──── [ Load ] ────┐
      │  N.C. │                                      │
      └───┬───┘                                      │
          │                                          │
       [ Pin 3 ] ────────────────────────────────────┴─── ( 0V )
