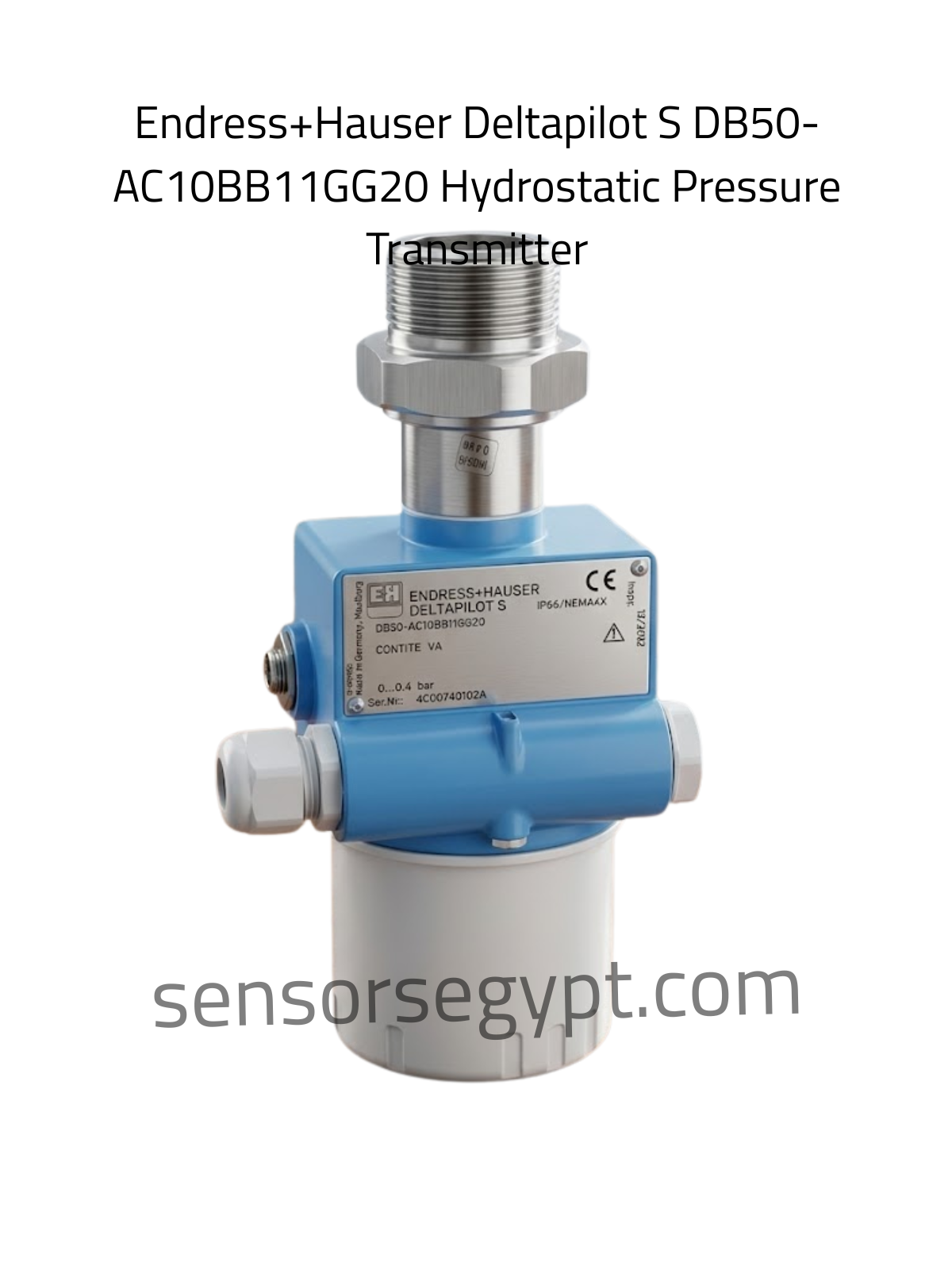

Technical Datasheet: Endress+Hauser Deltapilot S Hydrostatic Pressure Transmitter

Product Overview

The Deltapilot S DB50 is a high-precision hydrostatic level and pressure transmitter designed specifically for the food, beverage, pharmaceutical, and chemical industries. Featuring a condensation-resistant CONTITE measuring cell, this unit provides exceptional long-term stability and accurate level measurement in liquid storage tanks, process vessels, or open channels—even under severe ambient moisture conditions.

Technical Specifications

Key Identification

• Manufacturer: Endress+Hauser (E+H)
• Product Family: Deltapilot S
• Order Code: DB50-AC10BB11GG20
• Serial Number (Ser.Nr.): 4C00740102A
• Manufacturing Date: 12/2002
• Origin: Made in Germany, Maulburg

Performance & Pressure Measuring Range

• Nominal Measuring Range: 0 to 0.4 bar (0 … 0.4 bar)
  • Perfect for low-pressure hydrostatic liquid level tracking (approx. up to 4 meters of water column).
• Measuring Cell Type: CONTITE VA (Hermetically sealed, absolute climate-proof, and condensation-resistant measuring cell with stainless steel diaphragm).

Environmental & Enclosure Ratings

• Ingress Protection Rating: IP66 / NEMA 4X (Dust-tight and highly protected against powerful water jets or heavy outdoor marine exposure).
• Housing Material: Die-cast aluminum/plastic-coated industrial transmitter head compartment.

Code Configuration Breakdown (DB50-AC10BB11GG20)

Based on Endress+Hauser’s standard historical configuration matrices for the Deltapilot S DB50 series, the order string structures as follows:

Code Segment	Value Option	Technical Definition
DB50	Base Model	Hydrostatic pressure transmitter with Contite cell
A	Approval	Non-hazardous area / Standard industrial execution
C	Output Signal	4 to 20 mA HART analog smart protocol communication
1	Housing / Display	Aluminum housing, standard cable entry profile
0	Electrical Connection	Threaded gland entrance layout
BB	Sensor Range	0 to 0.4 bar / 40 kPa / 6 psi nominal calibration limit
1	Calibration / Accuracy	Standard accuracy configuration (typically $\pm0.2\%$ or better)
1	Process Diaphragm Material	316L Stainless Steel (Alloy 1.4435 / 1.4404)
GG20	Process Connection	Threaded mechanical process connection (e.g., G1½ or standard hygienic connection coupling)

Key Application Advantages

• Contite Measuring Cell Protection: Unlike standard silicon or ceramic capacitive sensors that degrade when exposed to moisture buildup in cold product/warm clean-in-place (CIP) cycles, the Contite cell is mechanically decoupled from ambient atmospheric condensation.
• Hydrostatic Level Precision: Optimized specifically for high-linearity measurements in liquid columns where precise volume density tracking is mandatory.
