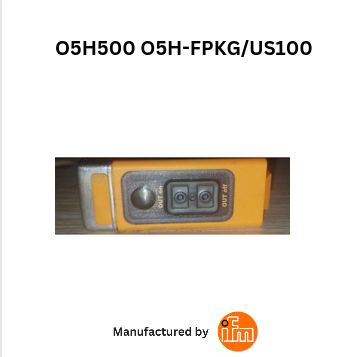

Product characteristics
| Type of light |
red light |
| Housing |
rectangular |
Application
| System |
Background suppression |
| Function principle |
Diffuse reflection sensor |
Electrical data
| Operating voltage [V] |
10…36 DC |
| Current consumption [mA] |
25 |
| Protection class |
II |
| Reverse polarity protection |
yes |
| Type of light |
red light |
| Wave length [nm] |
624 |
Outputs
| Electrical design |
PNP |
| Output function |
light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC [V] |
2.5 |
| Permanent current rating of switching output DC [mA] |
200 |
| Switching frequency DC [Hz] |
1000 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
Monitoring range
| Range [mm] |
50…1800; (white paper 200 x 200 mm 90 % remission) |
| Range on white object (90 % remission) [mm] |
50…1800 |
| Range on grey object (18 % remission) [mm] |
50…900 |
| Range on black object (6 % remission) [mm] |
50…600 |
| Range adjustable |
yes |
| Max. light spot diameter [mm] |
50 |
| Light spot dimensions refer to |
Range |
| Background suppression available |
yes |
Operating conditions
| Ambient temperature [°C] |
-25…60 |
| Protection |
IP 67 |
Mechanical data
| Weight [g] |
67.5 |
| Housing |
rectangular |
| Dimensions [mm] |
56 x 18.2 x 46.8 |
| Material |
housing: PA; Front framework: stainless steel; operator interface: TPU (urethane) |
| Lens material |
|
| Lens alignment |
Side sensing |
Displays / operating elements
| Display |
| Switching status |
1 x LED, yellow |
|
| Teach function |
yes |
| Electronic lock |
yes |
Remarks
| Remarks |
| cULus – Class 2 source required |
|
| Pack quantity |
1 pcs. |
Electrical connection
| Connection |
Connector: 1 x M12; coding: A |
Diagrams and graphs
|
|
| a: |
sensor |
| b: |
object |
| c: |
background |
| x: |
distance sensor/object [mm] |
| y: |
min. distance object/background [mm] |
|
