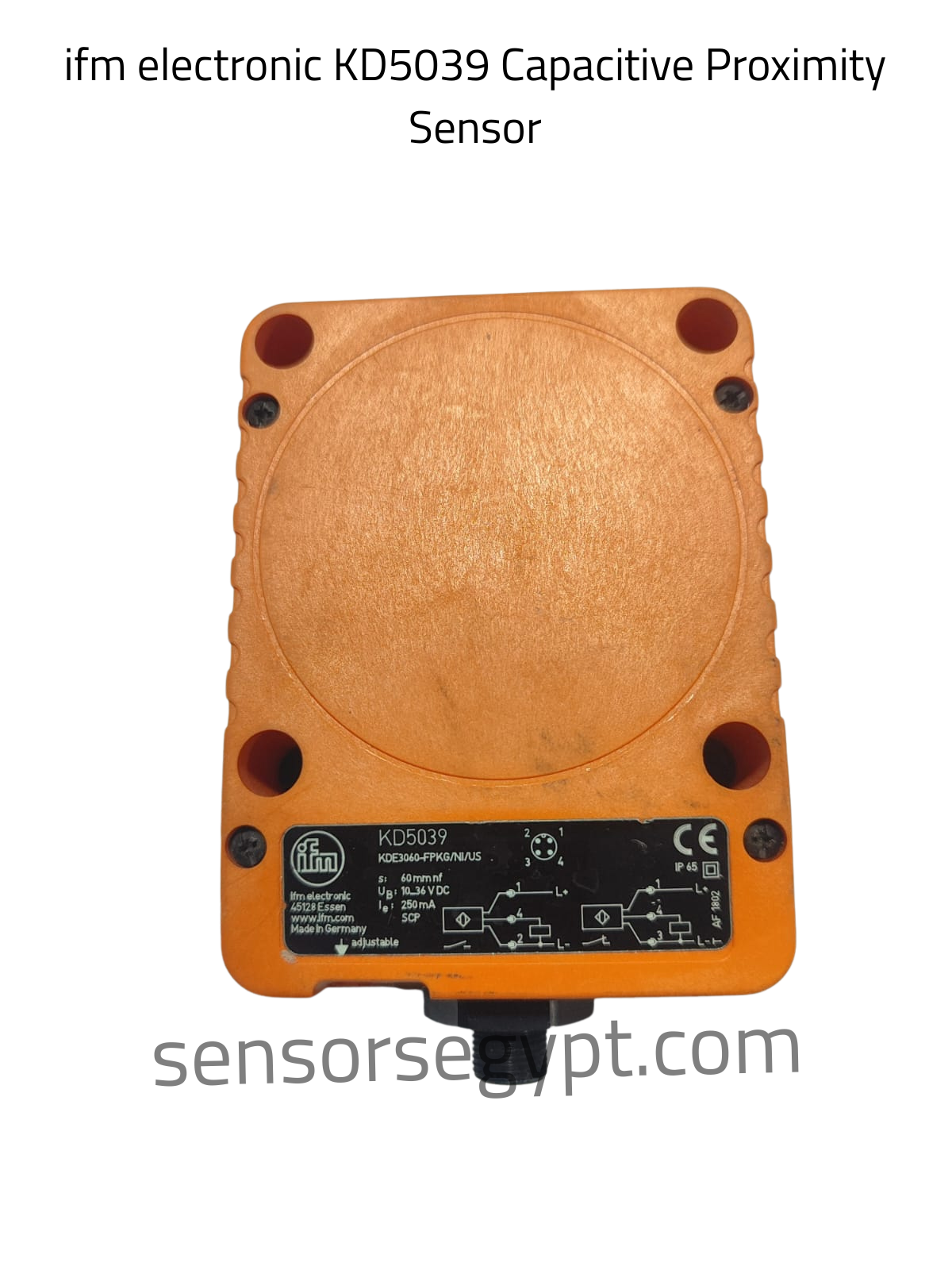

Technical Data Sheet: ifm electronic KD5039

Capacitive Proximity Sensor

1. Product Characteristics

• Manufacturer: ifm electronic

• Part Number (Product Code): KD5039

• Type Designation: KDE3060-FPKG/NI/US

• Housing Type: Rectangular / Flat pack (Type FP)

• Sensing Face: Top surface (large circular orange area)

• Mounting: Non-flush mountable (nf)

---

2. Electrical Data & Electrical Features

• Operating Voltage (U_B):10…36\text{ V DC}

• Current Rating (Continuous, I_e): 250\text{ mA}

• Protection Class: Class II (double insulated, indicated by the $\square$ symbol)

• Short-Circuit Protection: Yes (indicated by SCP)

• Reverse Polarity Protection: Yes

---

3. Detection / Sensing Characteristics

• Nominal Sensing Range (S_n): 60\text{ mm}

• Mounting Condition: Non-flush (nf)

• Adjustment: Potentiometer adjustable (indicated by the adjustable arrow pointing toward the adjustment screw location)

---

4. Outputs & Wiring Configurator

• Output Function: Complementary (Both Normally Open / NO and Normally Closed / NC are available)

• Output Type: PNP

• Connection Type: M12 Connector (4-pin)

Pinout & Wiring Diagram

Pin Number	Wire Color (Standard)	Signal Connection	Function
1	Brown	$L+$	$+10…36\text{ V DC}$ Power Supply
2	White	Output (NC)	Normally Closed Load Connection
4	Black	Output (NO)	Normally Open Load Connection
3	Blue	$L-$	$0\text{ V}$ / Ground (GND)

---

5. Environmental & Mechanical Data

• Ingress Protection Rating: IP 65 (Dust-tight and protected against water jets)

• Housing Material: Plastic (Orange PBT/PA body)

• Approvals / Markings: CE

• Manufacturing Origin: Made in Germany

• Date Code Reference: AF 1802
