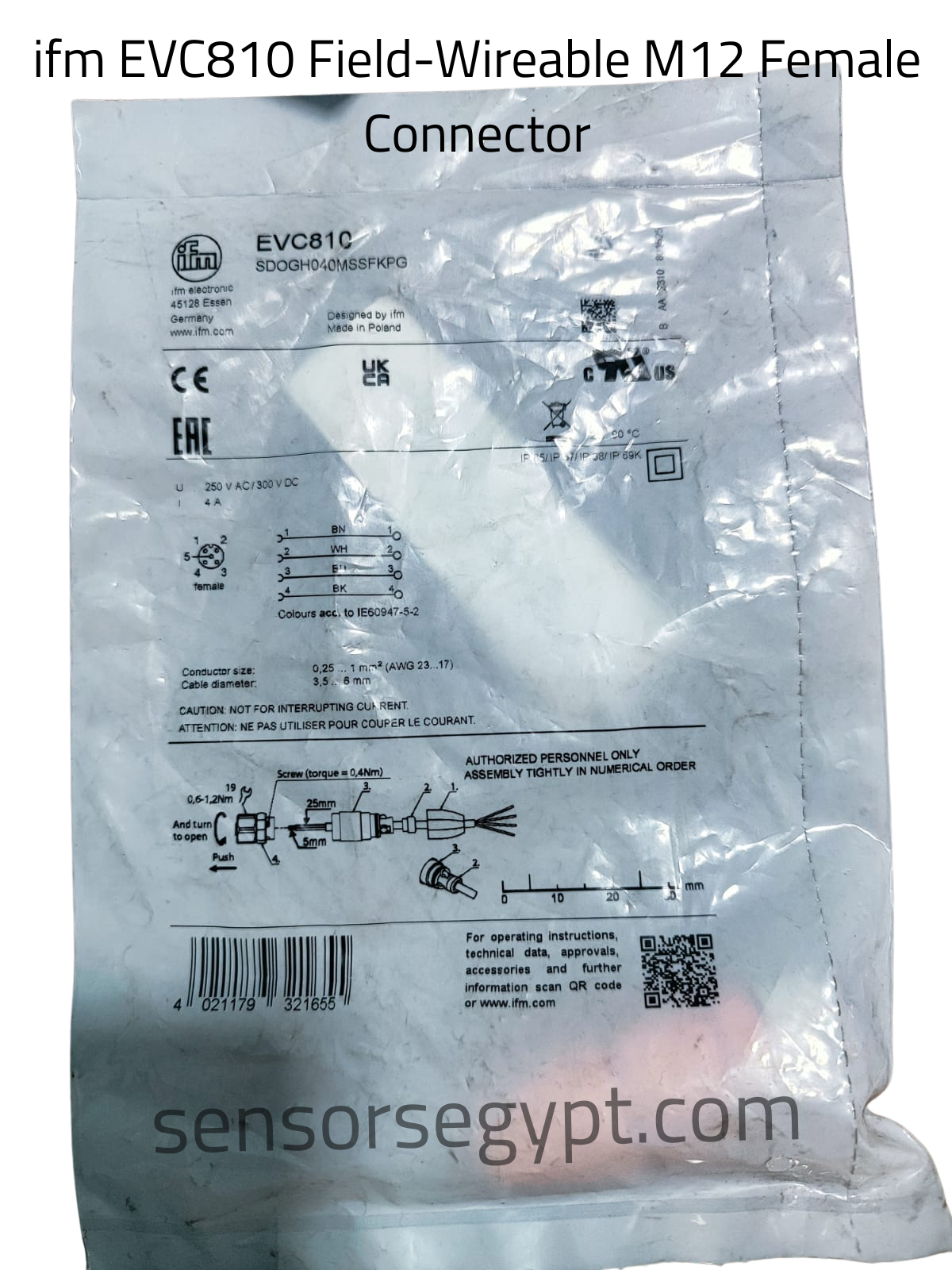

Technical Datasheet: ifm EVC810

Model/Type: SDOGH040MSSFresourceKPG

Product Type: Field-Wireable M12 Female Connector (Straight)

1. Product Characteristics & Application

• Connector Design: Straight M12 female connector head

• Connection Type: Screw terminals for secure field assembly

• Number of Pins: 4-pin (A-coded)

• Special Features: Free from silicone, halogen-free, gold-plated contacts. Designed by ifm for reliable signal and power connectivity in factory automation, sensor cabling, and harsh industrial environments.

2. Electrical Data

• Operating Voltage (U): 250 V AC / 300 V DC

• Max. Current Rating (I): 4 A (per contact)

• Protection Class: II

3. Cable & Wiring Specifications

• Conductor Size (Cross-section): 0.25…1 mm² (AWG 23…17)

• Acceptable Cable Diameter: 3.5…6 mm

• Connection Method: Internal screw clamp mechanism

• Recommended Assembly Torque: * Screw terminal internal contacts: 0.4 Nm

  • M12 coupling nut: 0.6…1.2 Nm

• Safety Note: Caution: Not for interrupting current. Do not disconnect under load.

4. Mechanical & Environmental Data

• Material Housing / Body: PA (Polyamide)

• Coupling Nut Material: Die-cast zinc, nickel-plated

• Ambient Operating Temperature: -25…90 °C

• Ingress Protection (IP Rating): Heavy-duty protection layout: IP 65 / IP 67 / IP 68 / IP 69K

• Country of Origin: Made in Poland

5. Pinout & Terminal Color Assignment

Wiring scheme conforms strictly to industrial standard IE60947-5-2:

Internal Diagram:

      Female Face View               Internal Terminal Path

          2     1                    (Pin 1) ─────── BN (Brown)
           o   o                     (Pin 2) ─────── WH (White)
             o                       (Pin 3) ─────── BU (Blue)
           o   o                     (Pin 4) ─────── BK (Black)
          3     4
