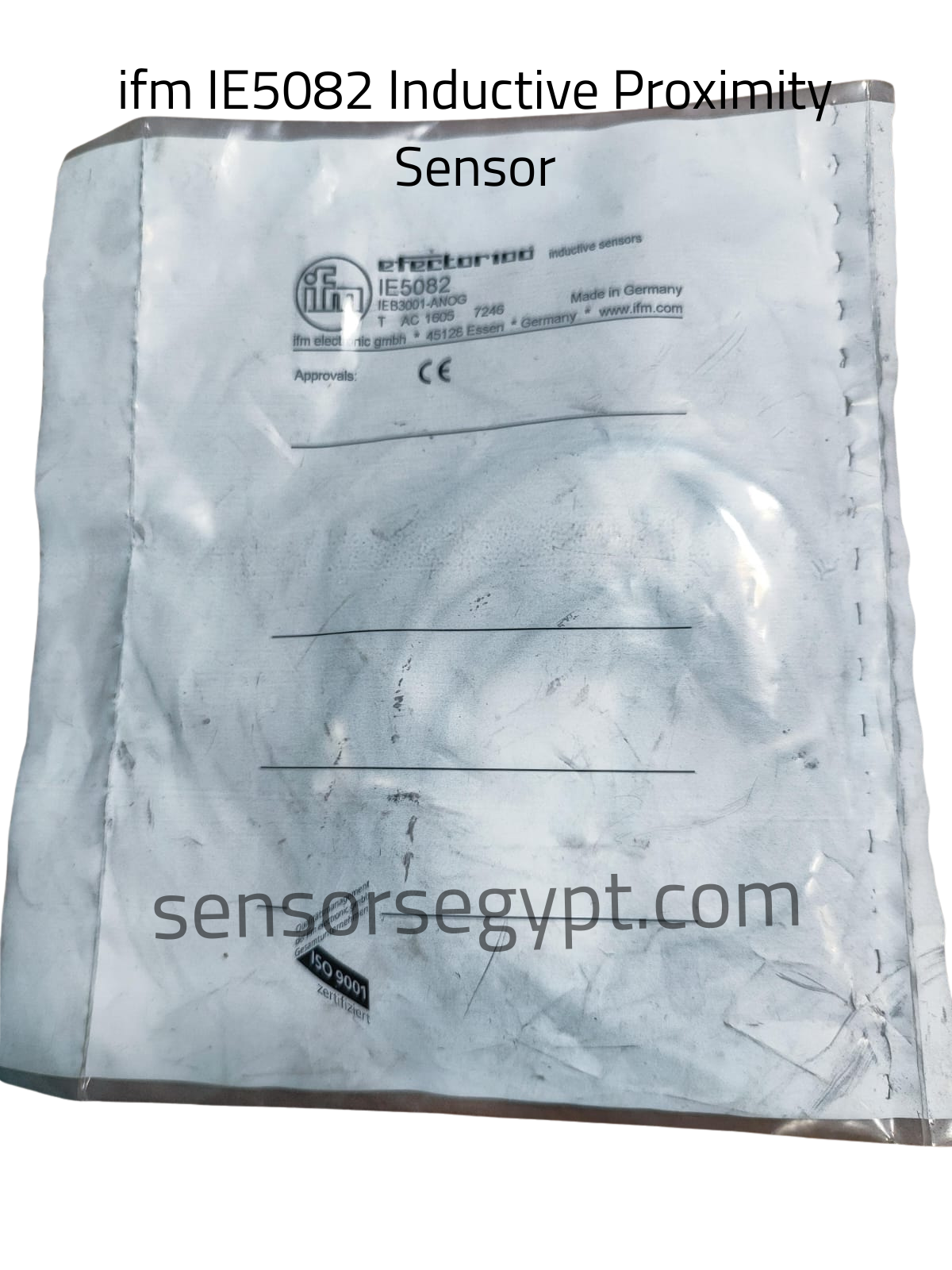

Technical Datasheet: ifm IE5082

Model/Type: IEB3001-ANOG (efector100 series)

1. Product Characteristics & Application

• Sensor Type: Inductive Proximity Sensor with Analog Output (Linear signal proportional to distance)

• Housing Design: Threaded barrel type (M12 × 1)

• Measuring Range: 0.5…1.5 mm * Mounting: Flush mountable (f)

• Application: High-precision distance measurement, position tracking, material thickness monitoring, and quality control sorting systems.

2. Electrical Data

• Operating Voltage (Ub): 15…30 V DC

• Current Consumption: < 20 mA

• Electrical Design: DC Analog

• Output Function: 0…10 V Analog Voltage Output (Linear response)

• Max. Load Resistance: Min. 2000 Ω

• Reverse Polarity Protection: Yes

• Short-Circuit Protection: Yes

3. Accuracy & Response

• Linearity Error: ± 3% of the final value of the measuring range

• Repeatability: < ± 1% of the final value of the measuring range

• Temperature Drift: < ± 10% of the final value of the measuring range

• Response Time / Frequency: High dynamics optimized for fine positioning tasks

4. Mechanical & Environmental Data

• Dimensions: M12 × 1 mm thread / Standard industrial length

• Materials: * Housing: High-grade brass white bronze-coated or stainless steel

  • Sensing Face: PC / PBT

• Ambient Operating Temperature: -25…80°C

• Ingress Protection (IP Rating): IP 67

5. Electrical Connection & Wiring Layout

The sensor utilizes a standard 3-wire system via an integrated connection method (standard M12 3-pin setup).

Pinout Assignment / Wiring Configuration:

• Brown (Pin 1): → +L (15…30 V DC Power Supply)

• Black (Pin 4): → Analog Output (0…10 V DC)

• Blue (Pin 3): → -L (0 V Ground / Common)

       [ Brown / Pin 1 ] ─────── ( + L )
               │
          ┌────┴────┐
          │  Analog │───────── [ Black / Pin 4 ] ──── [ 0...10V Output ] ──┐
          │ Circuit │                                                     │
          └────┬────┘                                                     │
               │                                                          │
       [ Blue / Pin 3 ] ──────────────────────────────────────────────────┴─── ( - L / GND ) DATA SHEET
