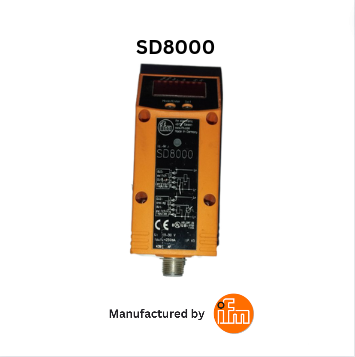

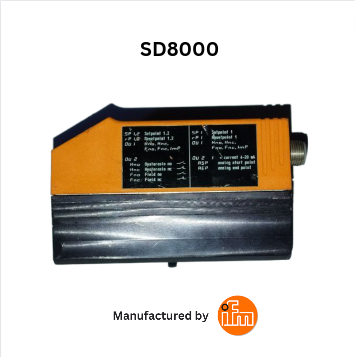

ifm SD8000 Compressed air meter

EGP0.00

Tags
Categories
FacebookXPinterestWhatsappTelegramEmailShortlink
product features
Number of inputs and outputs Number of digital outputs: 2; Number of analogue outputs: 1
measuring range
13…3750 l/min 0.4…109.2 m/s 0.7…225 m³/h
process connection Threaded connection R 1 DN25
area of ​​application
application for industrial use
media operating air
Note on media
Air Quality ISO 8573-1
class 141
class 344
Medium temperature [°C] 0…60
compressive strength [bar] 16
Compressive strength [Mpa] 1.6
electrical data
Operating voltage [V] 18…30DC; (according to SELV/PELV)
Current consumption [mA] < 110
protection class III
reverse polarity protection Yes
Ready delay time [s] 1
inputs/outputs
Number of inputs and outputs Number of digital outputs: 2; Number of analogue outputs: 1
exits
Total number of exits 2
output signal switching signal; analog signal; pulse signal; IO link; (configurable)
Electrical version PNP
Number of digital outputs 2
output function normally open / normally closed; (configurable)
Max. voltage drop switching output DC [V] 2
Permanent current carrying capacity of the switching output DC [mA] 250; (per output)
Number of analog outputs 1
Analog output current [mA] 4…20; (scalable)
Max. burden [Ω] 500
pulse output Consumption counter
short circuit protection Yes
Version short-circuit protection clocked
Overload resistant Yes
Measuring/setting range
measuring range
13…3750 l/min 0.4…109.2 m/s 0.7…225 m³/h
display area
0…4500 l/min 0…131 m/s 0…270 m³/h
switching point SP
30…3750 l/min 0.9…109.2 m/s 1.8…225 m³/h
reset point rP
12…3732 l/min 0.4…108.7 m/s 0.7…223.9 m³/h
Analog start point ASP
0…2813 l/min 0…81.9 m/s 0…168.8 m³/h
Analog endpoint AEP
937…3750 l/min 27.3…109.2 m/s 56.2…225 m³/h
increment
1L/min 0.1m/s 0.1 m³/h
flow rate monitoring
pulse value 0.003…3000000 m³
In steps of 0.001m³
Pulse length [s] 0.02…2
temperature monitoring
Measuring range [°C] 0…60
Display range [°C] -12…72
Accuracy / Deviations
flow monitoring
Reproducibility [% of reading] ±1.5
Accuracy (in measuring range) ± (3% MV + 0.3% MEV) / ± (6% MV + 0.6% MV); (class 141 /; class 344; conditions: installation according to DIN ISO 2533; installation in pipelines: DN25)
temperature monitoring
Accuracy [K] ± 2; (with media flow within the limits of the flow measuring range)
response times
flow monitoring
response time [s] 0.1; (dAP = 0)
Damping process value dAP stages [s] 0 – 0.2 – 0.4 – 0.6 – 0.8 – 1
Software programming
parameterization options flow monitoring; quantity meter; preset counter; temperature monitoring; hysteresis / window; normally open / normally closed; current/pulse output; display can be rotated / switched off; display unit; totalizer
interfaces
communication interface IO link
transmission type COM2 (38.4 kbaud)
IO-Link revision 1.1
SDCI standard IEC 61131-9 CDV
profiles no profile
SIO mode Yes
Required master port class A
Process data analogue 3
Process data binary 2
Min. process cycle time [ms] 4.1
Supported DeviceIDs
operating mode DeviceID
default 267
Environmental conditions
Ambient temperature [°C] 0…60
Storage temperature [°C] -20…85
Max. permissible relative humidity [%] 90
Degree of protection IP65
Approvals / Exams
EMC
EN 61000-6-2
EN 61000-6-3
CPA approval
model number 002TG
accuracy class –
maximum allowable error ± 4% FS
Q (min) 0.7 m³/h
Q(t) –
Q (max) 225 m³/h
vibration resistance
EN 68000-2-6 5 g (55…2000 Hz)
MTTF [years] 227
Pressure Equipment Directive good engineering practice; usable for media of fluid group 2; Media of fluid group 1 on request
mechanical data
Weight [g] 2029
materials PBT-GF20; NBR; PC; 1.4301 (stainless steel / 304); PTFE; brass coated; FKM; Aluminum powder coated
Materials in contact with the medium 1.4301 (stainless steel / 304); FKM; ceramic glass passivated; PEEK GF30; Polyester; aluminum
process connection Threaded connection R 1 DN25
Displays / controls
Advertisement
display unit 5 x LED, green (Nl/min, Nm³/h, Nm/s, Nm³, °C)
function display 1x LED Green
switching state 2 x LEDs, yellow
readings alphanumeric display, 4 digits
programming alphanumeric display, 4 digits
Remarks
Remarks
MV = measured value
MEW = full scale value
Measuring, display and setting ranges refer to the standard volume flow according to DIN ISO 2533.
For information on installation and operation, please refer to the operating instructions.
Packaging Unit 1 piece
Electrical connection
Connection Plug connection: 1 x M12; Coding: A
