## Key Specifications



• Manufacturer: Keyence
• Series: FS-V30
• Model: FS-V31P
• Type: Digital Fiber Optic Amplifier, Main Unit, Cable Type
• Output Type: PNP Open-Collector
• Power Supply: 12 to 24 V DC ±10%
• Light Source: Red LED
• Response Time: Selectable, from 33 µs (Mega mode) to 4 ms (Fine mode)
• Display: Dual digital display (shows both real-time light intensity and the set threshold value)
• Key Features:
  • High Power: Provides a powerful beam for stable detection in dusty environments or at long ranges.
  • Simple Calibration: Features a one-touch button for easy sensitivity setup.
  • Expandable: Can be connected side-by-side with up to 16 expansion amplifier units.

---



## Wiring

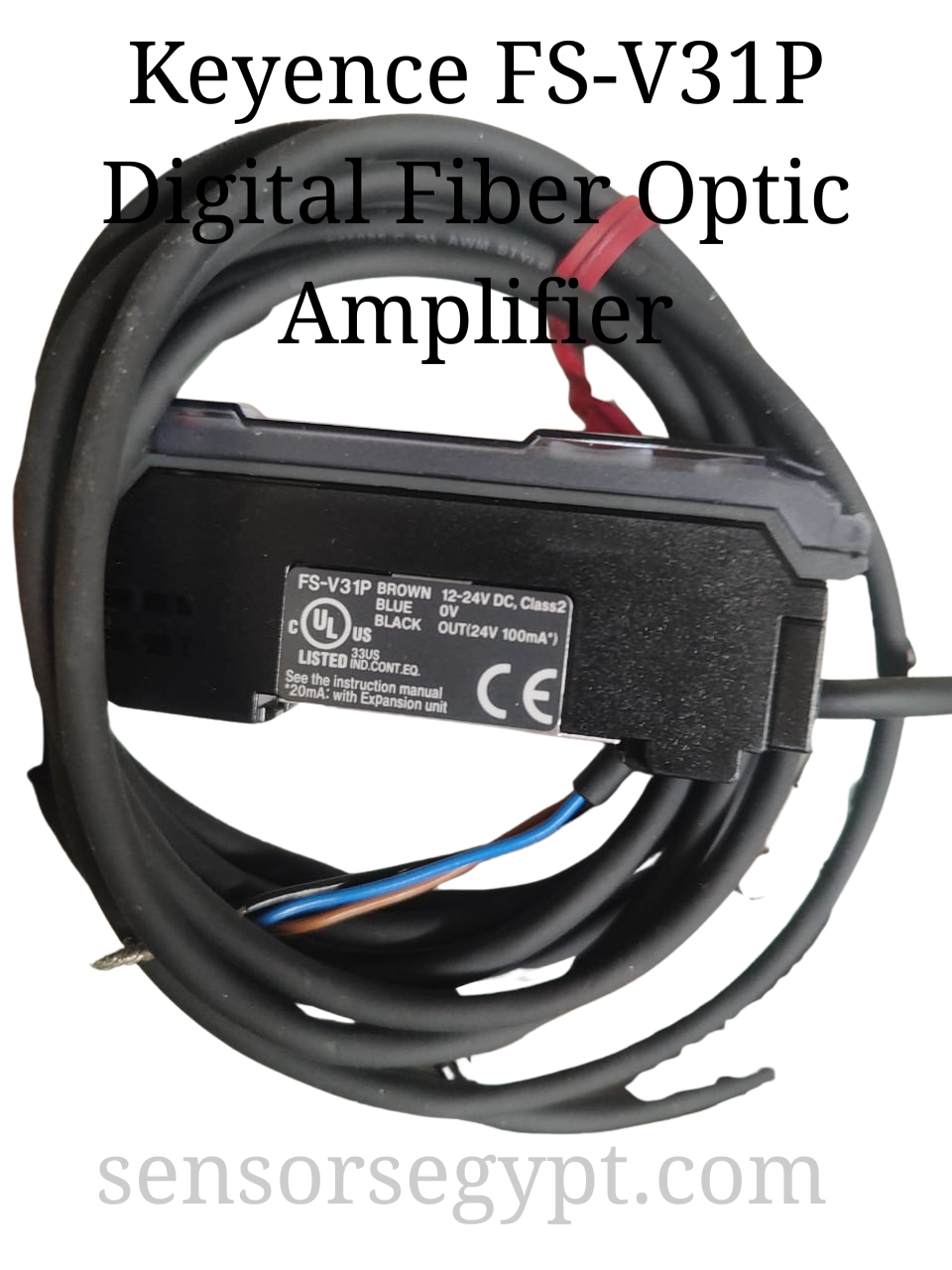

The color code for the integrated cable is printed on the label and is as follows:

• Brown: +V (Connect to 12 – 24 V DC)
• Blue: 0V (Connect to Ground)
• Black: Output (PNP signal)
• White: External Input (Used for remote teaching/calibration)

---



## Functionality



The FS-V31P amplifier sends a beam of light through a fiber optic cable. The sensing head at the end of the cable (which can be a through-beam or reflective type) interacts with a target object. The amplifier then measures the amount of light received back and compares it to a user-set threshold. If the light level crosses the threshold, the PNP output is activated.

Its dual digital display makes setup very intuitive, as users can see the exact light intensity and adjust the trigger point precisely. This makes it ideal for high-speed or small-part detection in applications like packaging, electronics assembly, and industrial automation.

data sheet

Keyence FS-V30 Digital Fiber Optic Amplifier
