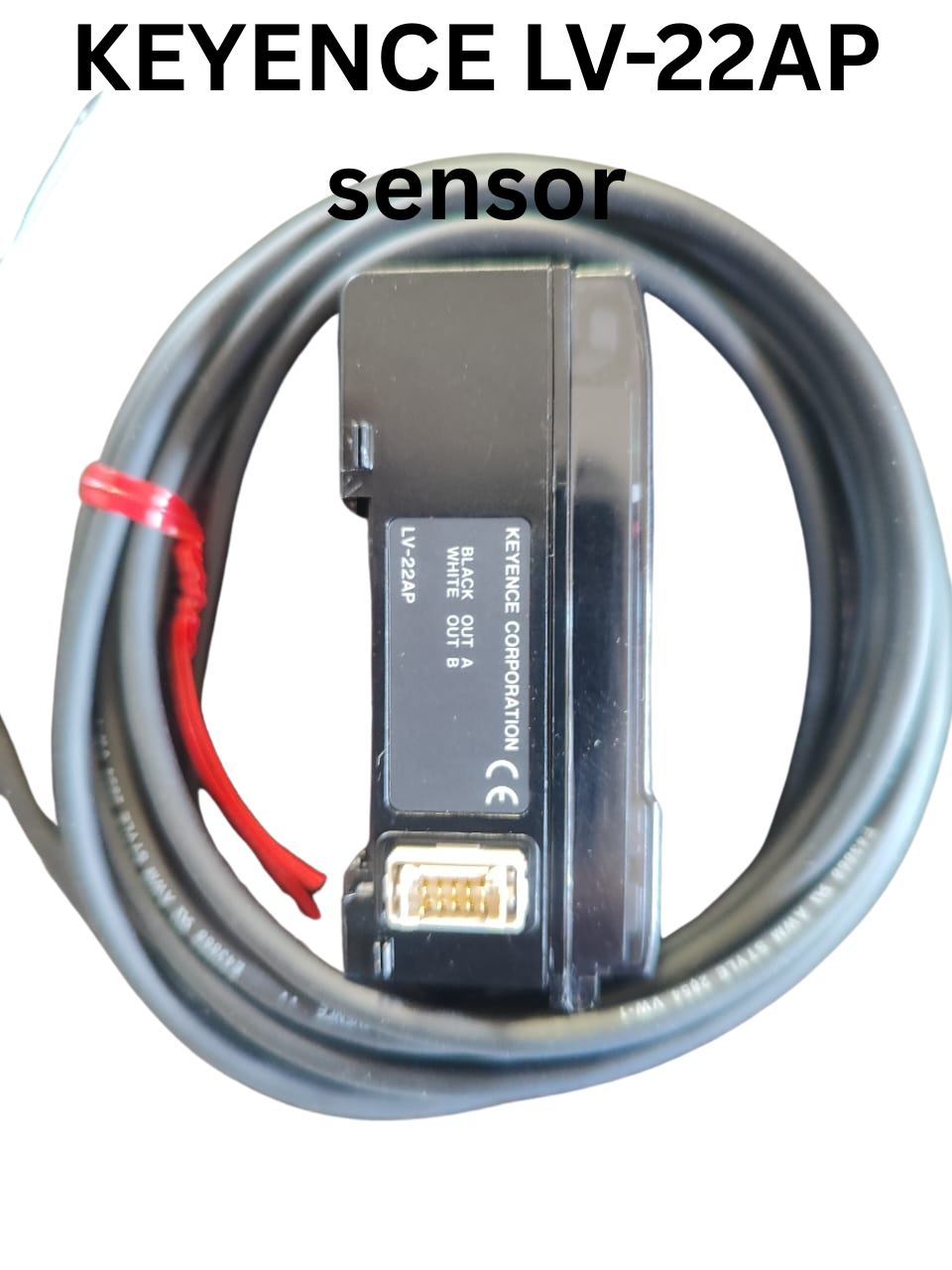

Model LV-22AP
Type PNP output
Main unit/expansion unit Expansion unit (1 line)
Control output PNP open-collector x 2 channels, 30 VDC max., max. 100 mA, residual voltage (1.0 V max.)
Response speed FINE : 80 µs , TURBO : 500 µs , SUPER , TURBO : 4 ms
Number of interference
preventive units
FINE : None , TURBO : 2 units , SUPER : 4 units
Protection circuit Reversed polarity protection, over-current protection, surge absorber
Unit expansion Up to 7 additional expansion units can be installed (8 units including the main unit),
Rating Power voltage 12 to 24 VDC, Ripple (P-P) 10 % or less (For the LV-20A/22A/22AP, the power supply voltage is supplied from the main unit.)
Power consumption 1.5 W max. (125 mA max. for 12 V, 62.5 mA max. for 24 V)
Environmental resistance Ambient temperature -10 to +55 °C 14 to 131 °F (No freezing) *1
Relative humidity 35 to 85 % RH (No condensation)
Material Main unit Polycarbonate
Case
Weight Approx. 120 g
