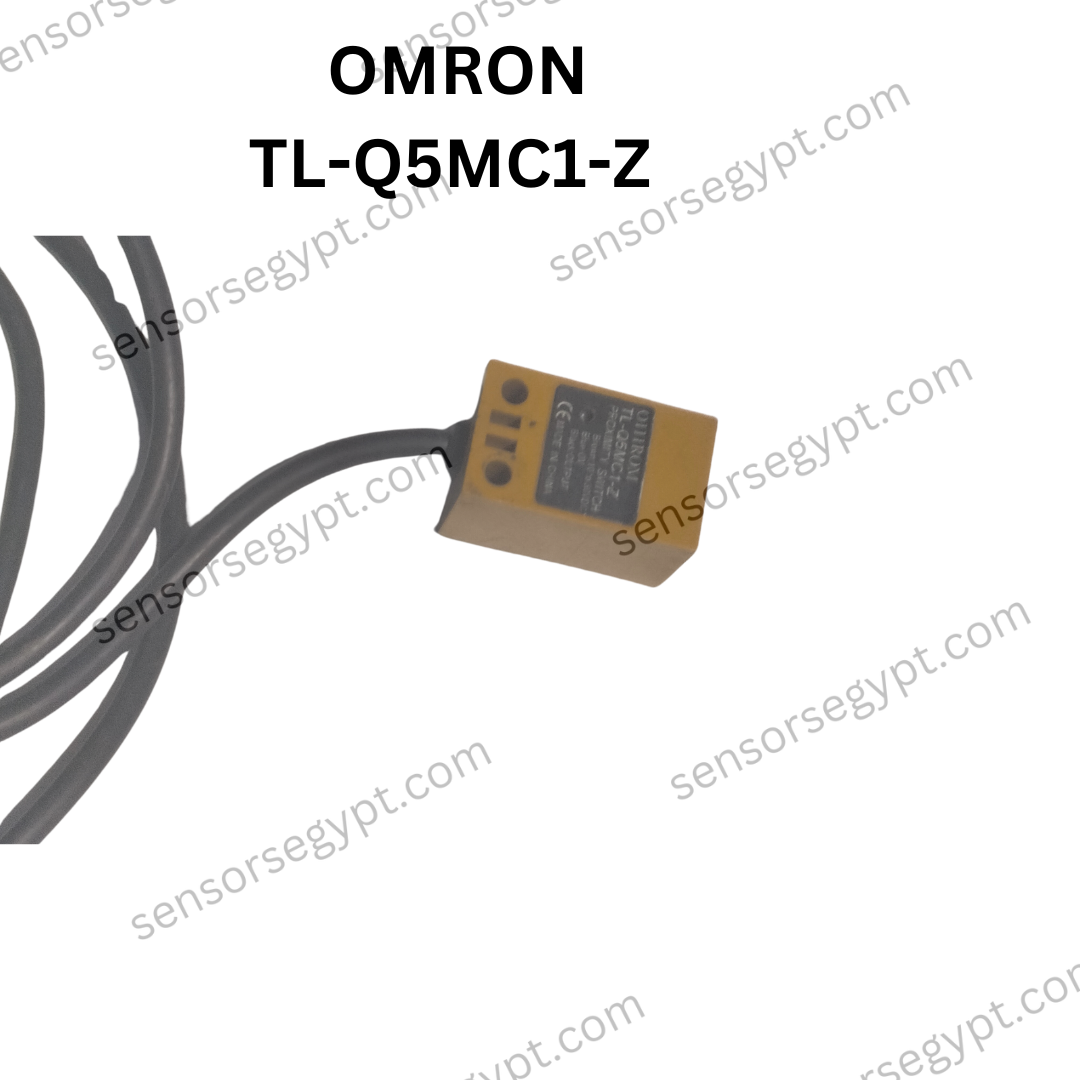

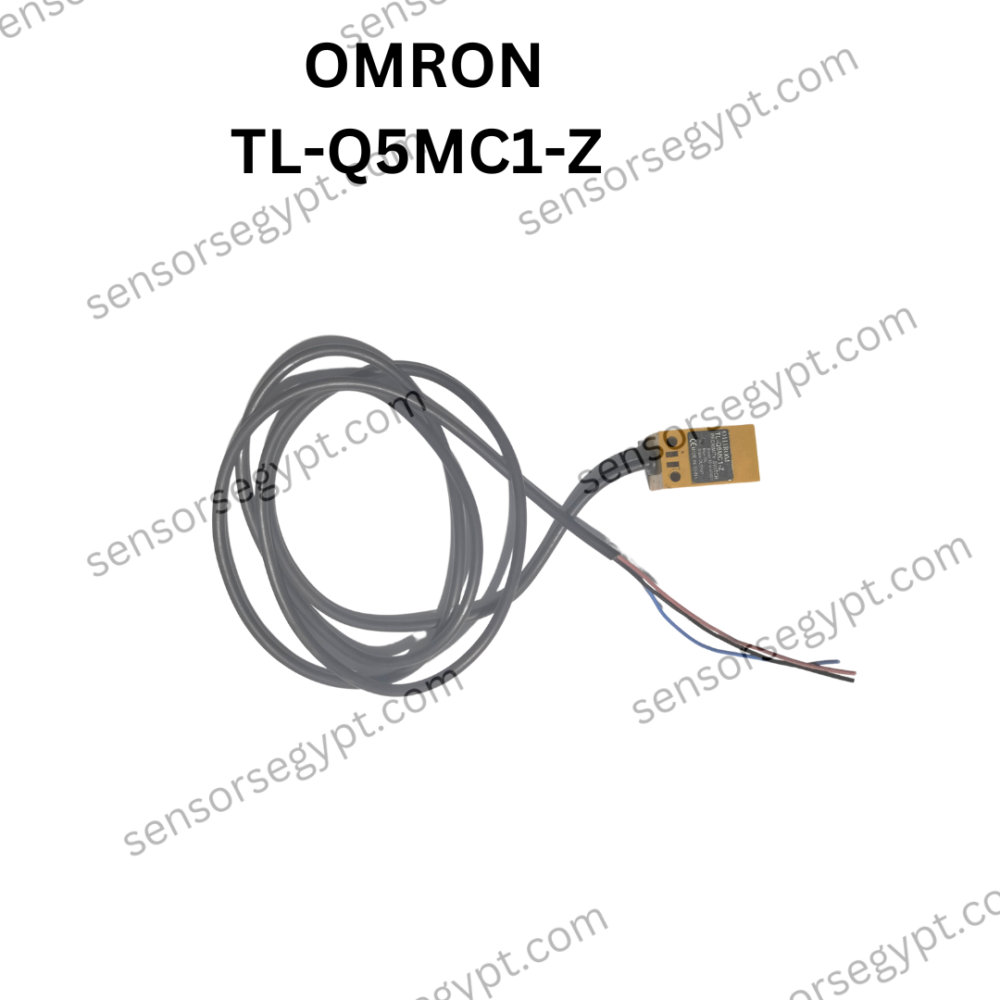

• Manufacturer : Omron
• Part Number : TL-Q5MC1-Z 2M OMS
• Rectangular Standard Proximity Sensor
• Sensing head size : 17 mm x 17 mm x 28 mm
• Type : Square type, Unshielded
• Power source : DC Three-wires models
• Sensing distance : 5 mm ±10%
• Setting distance : 0 to 4 mm
• Differential distance : 10% max. of sensing distance
• Sensing object : Ferrous metal (Sensitivity lowers with non-ferrous metals.)
• Standard sensing object : Iron 15 x 15 x 1 mm
• Response frequency : 500 Hz (Average value)
• Response time : 2 ms max.
• Power supply voltage : 12 to 24 VDC ripple (p-p) 10% max.
• Operating voltage range : 10 to 30 VDC
• Current consumption : at 24 VDC: 10 mA max.
• Control output (Output type) : NPN open collector
• Control output (Switching capacity) : 50 mA max. (30 VDC max.)
• Control output (Residual voltage) : 1 V max. (Load current 50 mA with cable length of 2 m)
• Indicator : Detection indicator (red)
• Operation mode : NO
• Protective circuit : Reverse polarity protection

  : Surge suppressor

• Ambient temperature (Operating) : -25 to 70 ?
• Ambient temperature (Storage) : -25 to 70 ?
• Ambient humidity (Operating) : 35 to 95% RH
• Ambient humidity (Storage) : 35 to 95% RH
• Temperature influence : ±20% max. of sensing distance at 23 ? in the temperature range of −25 to 70 ?
• Voltage influence : ±2.5% max. of sensing distance at rated voltage in the rated voltage ±10% range
• Insulation resistance : Between charged parts and the case: 5 MΩ min. (at 500 VDC)
• Dielectric strength : Between charged parts and the case: 500 VAC 50/60 Hz 1 min
• Vibration resistance : Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
• Shock resistance : Destruction: 200 m/s² 10 times each in X, Y, and Z directions
• Degree of protection : IEC: IP67
• Connection method : Pre-wired models (2 m)
• Weight : Package: Approx. 90 g
• Material : Case: Heat-resistant ABS resin : Sensing surface: Heat-resistant ABS resin
• Weight : 2 K
