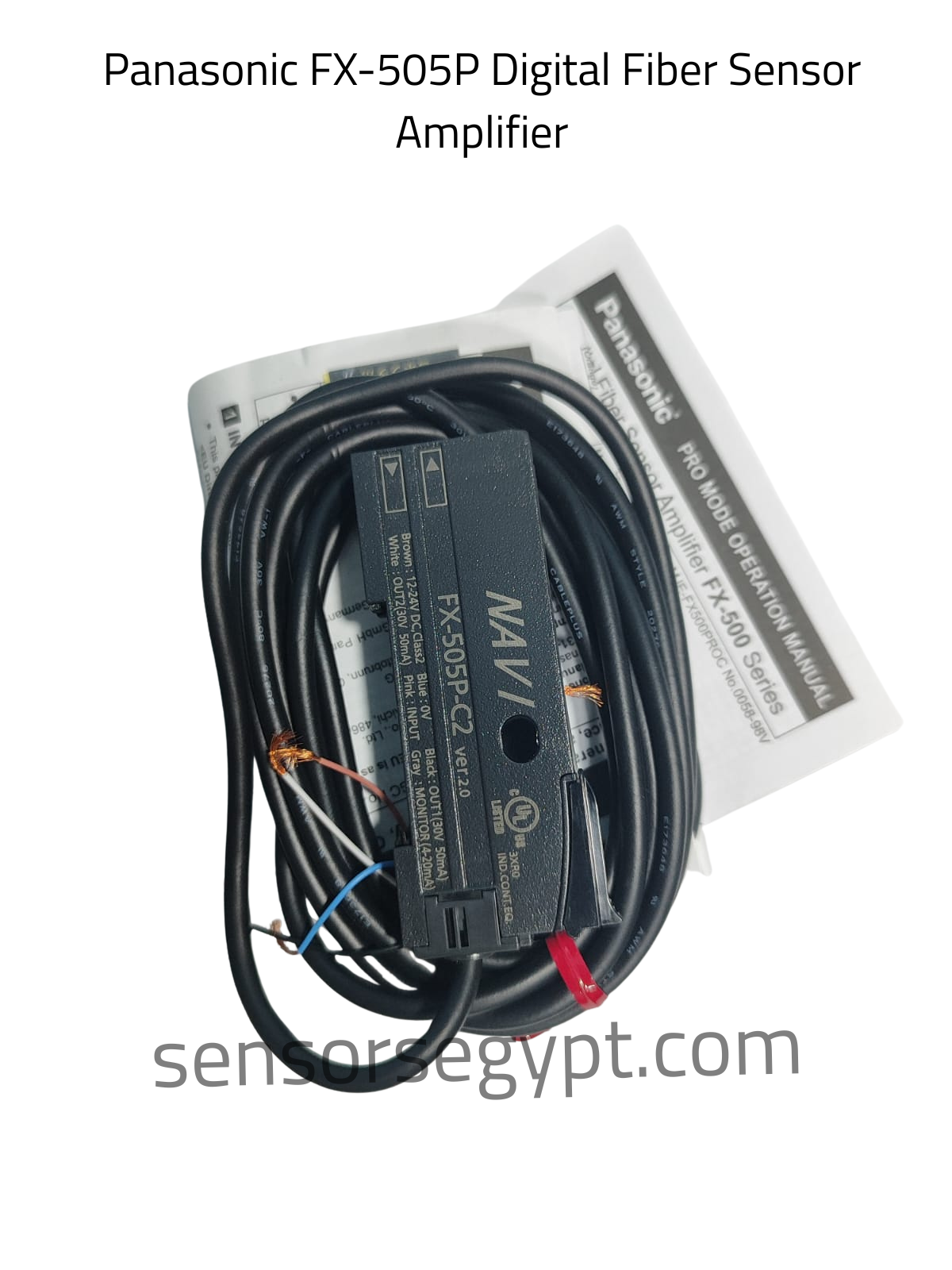

Technical Datasheet: Panasonic FX-505P-C2

Series: FX-500 Series (Ver. 2.0 Digital Fiber Sensor Amplifier)

Model: FX-505P-C2 (Dual Output + Analog Monitor Type, PNP)

1. Product Overview & Key Features

The FX-505P-C2 is a high-precision, dual-display digital fiber optic amplifier featuring an advanced NAVI engine for hyper-stable long-range detection and hyper-speed processing. This specific version includes two independent control outputs and an analog voltage/current monitoring function.

• Dual Digital Display: Simultaneous sub-display (green) and main display (red) for instant threshold and current values.

• Dual Output & Analog Monitor: Features independent control lines along with a 4…20 mA analog output for real-time tracking of signal intensity.

• Interference Prevention: Built-in optical communication automatically syncs adjacent units to eliminate mutual interference.

2. Electrical Specifications

• Operating Voltage: 12…24 V DC ±10% (Ripple P-P 10% or less, Class 2 compliant)

• Power Consumption: * Normal Mode: ≤ 960 mW (Current consumption ≤ 40 mA at 24 V)

  • ECO Mode: ≤ 720 mW (Current consumption ≤ 30 mA at 24 V)

• Electrical Design: PNP Open-Collector Transistor

3. Input & Output Characteristics

• Control Output 1 & 2 (OUT1 / OUT2):

  • Max. Applied Voltage: 30 V DC

  • Max. Load Current: 50 mA per output

  • Residual Voltage: ≤ 2.0 V (at 50 mA load current)

  • Output Operation: Light-ON or Dark-ON (Selectable via parameter settings)

• Analog Monitor Output:

  • Output Range: 4…20 mA current output (linear relative to received light intensity)

• External Input (Pink Wire):

  • Functions: Selectable between External Teach, Emission Halt, Limit Teaching, Full-Auto Teach, or Data Bank Reset.

4. Performance & Response Times

The response time can be modified based on the required detection accuracy versus processing speed:

• H-SP (Hyper Speed Mode): 25 μs

• FAST (Fast Mode): 60 μs

• STD (Standard Mode): 250 μs

• LONG (Long Range Mode): 2 ms

• U-LG (Ultra Long Range Mode): 4 ms

• HYPR (Hyper Long Range Mode): 8 ms

5. Mechanical & Environmental Parameters

• Connection Type: Pre-wired 5-core cabtyre cable (2 m length)

• Housing Material: Polycarbonate (PC)

• Ambient Temperature: -10…+55°C (No condensation or icing allowed)

• Ambient Humidity: 35…85% RH

• Protection Rating: IP40 (IEC enclosure standards)

6. Wiring & Connection Diagram

The device features a 5-core cable with color-coded leads as explicitly marked on the side of the housing:

Wire Color & Pin Assignment Table

PNP Circuit Configuration:

( + ) Brown ────────────────────────────────────────────── [ +12...24V DC ]
                │                 │                  │
         ┌──────┴──────┐   ┌──────┴──────┐           │
         │  Control    │   │  Control    │           │
         │  Output 1   │   │  Output 2   │           │
         └──────┬──────┘   └──────┬──────┘           │
                │                 │                  │
                ├── Black (OUT1)  ├── White (OUT2)   │
                │                 │                  │
             [ Load 1 ]        [ Load 2 ]            │
                │                 │                  │
                ▼                 ▼                  ▼
( - ) Blue ─────────────────────────────────────────────── [ 0V Ground ]

( * ) Pink ───── [ External Input ]
( * ) Gray ───── [ Analog Monitor Output: 4-20mA ]

7. Status Indicators & Operation

• Digital Display: 4-digit Red LCD (Incident light intensity) and 4-digit Green LCD (Threshold value) displayed simultaneously.

• Indicators: OUT1 indicator (Orange LED), OUT2 indicator (Orange LED).
