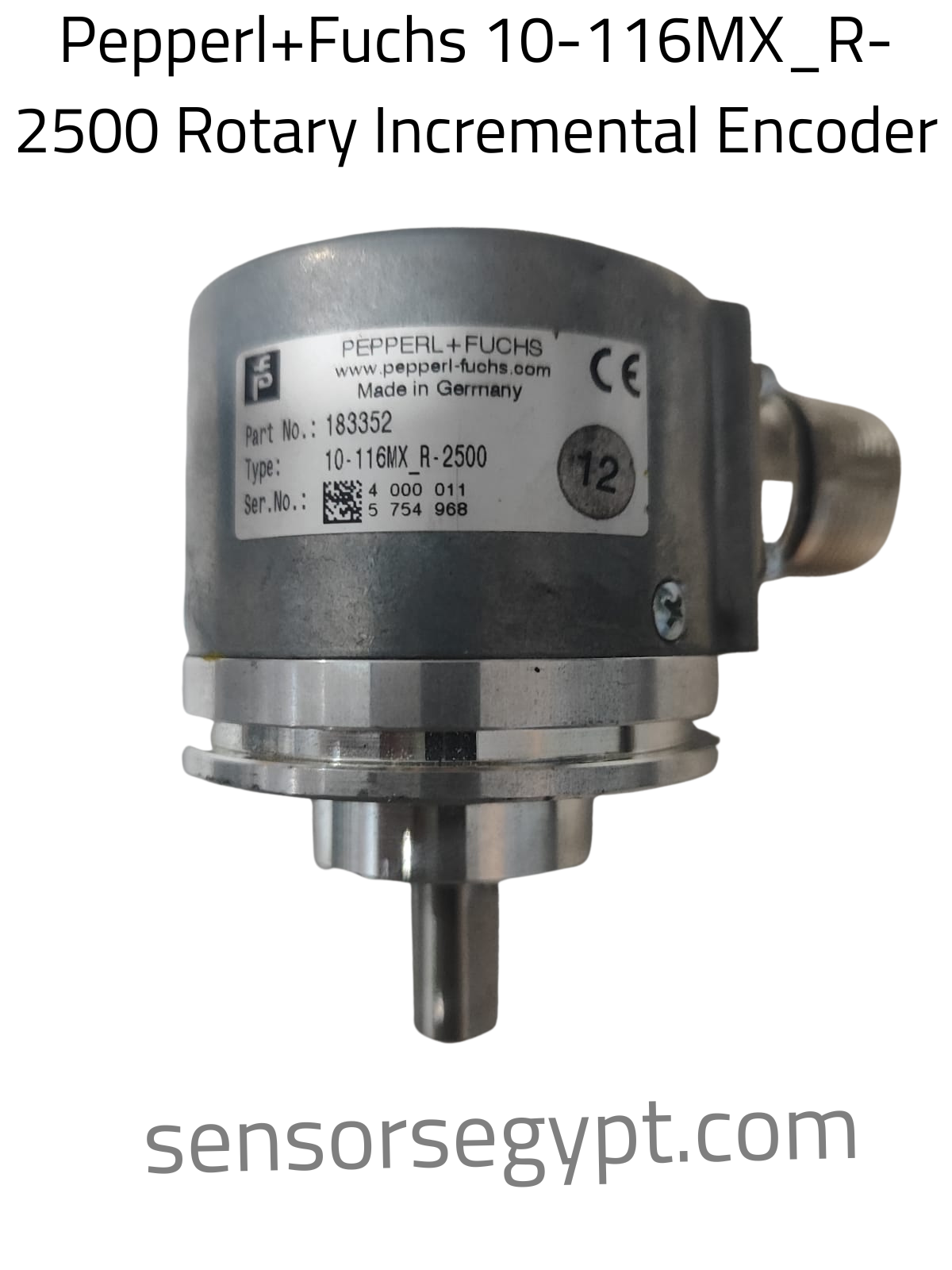

Technical Datasheet: Pepperl+Fuchs 10-116MX_R-2500

Part Number: 183352

Model/Type: 10-116MX_R-2500

Product Category: Rotary Incremental Encoder

Manufacturer Location: Made in Germany

1. Product Characteristics & Application

• Sensor Type: Optical Incremental Rotary Encoder.

• Pulse Count: 2,500 pulses per revolution (PPR).

• Flange Version: Clamping flange style.

• Shaft Parameters: 10 mm diameter by 20 mm length, featuring a 0.6 mm x 15 mm flat positioning spot.

• Special Features: Heavy-duty build with a zinc die-cast housing and a stainless steel shaft designed to deliver precise positional, speed, and rotational direction feedback under intense vibration.

• Key Application Area: Extensively used in heavy packaging systems, conveyor lines, and large-scale printing presses (such as Goss Community web offset setups).

2. Electrical Data & Interface

• Operating Voltage: 10…30 V DC

• Max No-Load Current Consumption: 150 mA

• Primary Signal Interface: RS-422 Incremental differential signals

• Signal Output Channels: A, B, 0 and inverted channels /A, /B, /0

• Maximum Operating Frequency: 100 kHz

3. Mechanical & Environmental Data

• Housing Material: Die-cast zinc

• Flange Material: Aluminium

• Shaft Material: Stainless steel AISI 303

• Maximum Rotation Speed: 10,000 RPM

• Electrical Connector Position: Radial exit (pointing out from the side of the housing cylindrical wall)

• Ingress Protection Rating: IP65 dust-tight and water-jet resistant sealing

• Net Weight: Approx. 376 g

4. Electrical Connection & Pinout Assignment

The sensor features an integrated radial 12-pin M23 male connector plug (also referred to as a 9413 or Hummel 12-pin layout).

Pin Mapping Table:

Wiring Layout:

                  M23 12-Pin Connector
                 ┌───────────────────┐
       (0V GND) ─┤ Pin 1             │
    (+10-30VDC) ─┤ Pin 2   Pepperl   │── [ Channel A ] ─── (Pin 3)
                │          +Fuchs    │── [ Channel B ] ─── (Pin 4)
                │ 10-116MX │── [ Channel 0 ] ─── (Pin 5)
    (Inverted) ─┤ Pin 6     _R-2500  │── [ Channel /A ] ── (Inverted)
    (Inverted) ─┤ Pin 7              │── [ Channel /B ] ── (Inverted)
                └────────────────────┘── [ Channel /0 ] ── (Pin 8)
