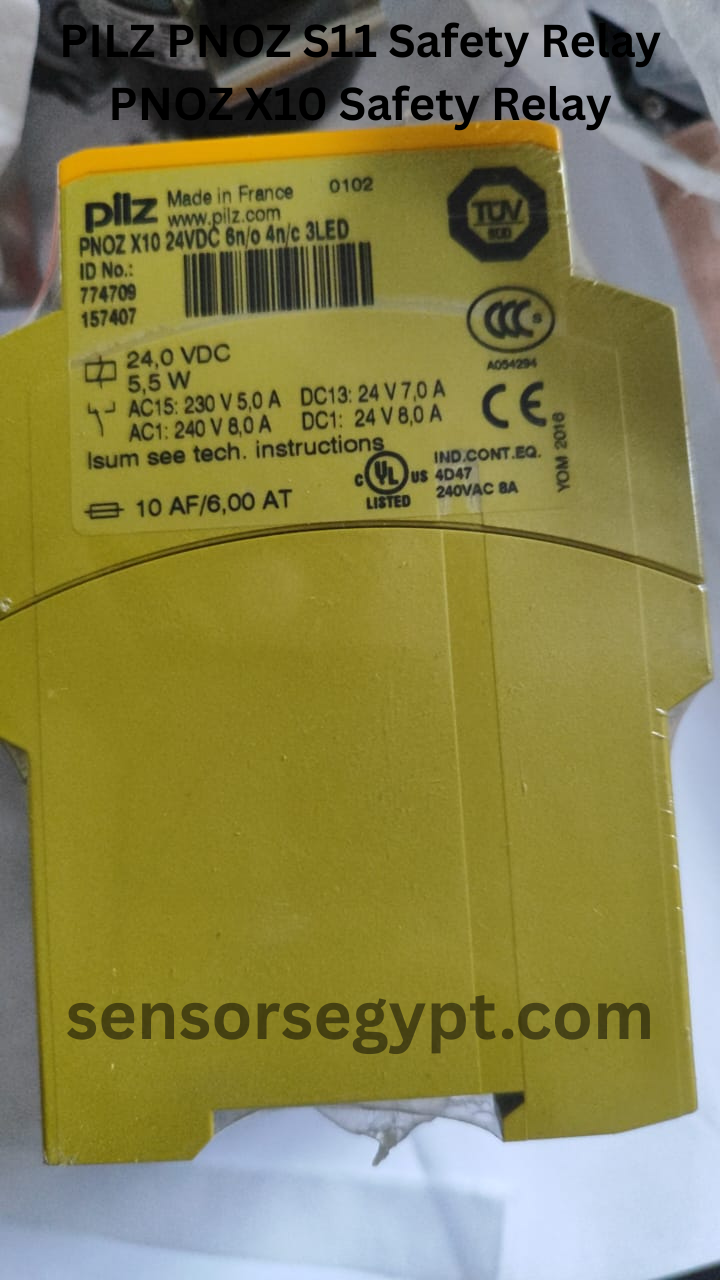

General Information



• Brand: Pilz
• Product Model: PNOZ X10
• ID Number: 774740
• Product Type: Safety Relay

---



Safety Function & Level



• Primary Applications: Monitoring of E-STOP pushbuttons and Safety Gates.
• Achievable Safety Level: This is a high-level safety device, capable of being used in applications up to:
  • PL e (Performance Level e) according to EN ISO 13849-1.
  • SIL CL 3 (Safety Integrity Level Claim Limit 3) according to EN/IEC 62061.

---



Power Supply



• Supply Voltage: 24 VDC
• Power Consumption: 5.5 W

---



Inputs & Outputs



• Safety Outputs (Instantaneous): 6 x Normally Open (N/O) contacts. These are the force-guided contacts used for the safety function.
• Auxiliary Outputs (Instantaneous): 4 x Normally Closed (N/C) contacts. These are typically used for signaling and status feedback to a PLC.

---



Maximum Contact Ratings (Load Capacity)



• AC15 (for AC inductive loads like contactors): 230V / 5.0A
• DC13 (for DC inductive loads): 24V / 7.0A
• AC1 (for AC resistive loads): 240V / 8.0A
• DC1 (for DC resistive loads): 24V / 8.0A

---



Manufacturing & Certifications



• Made in: France
• Certifications: TÜV, CCC, CE, cULus Listed
