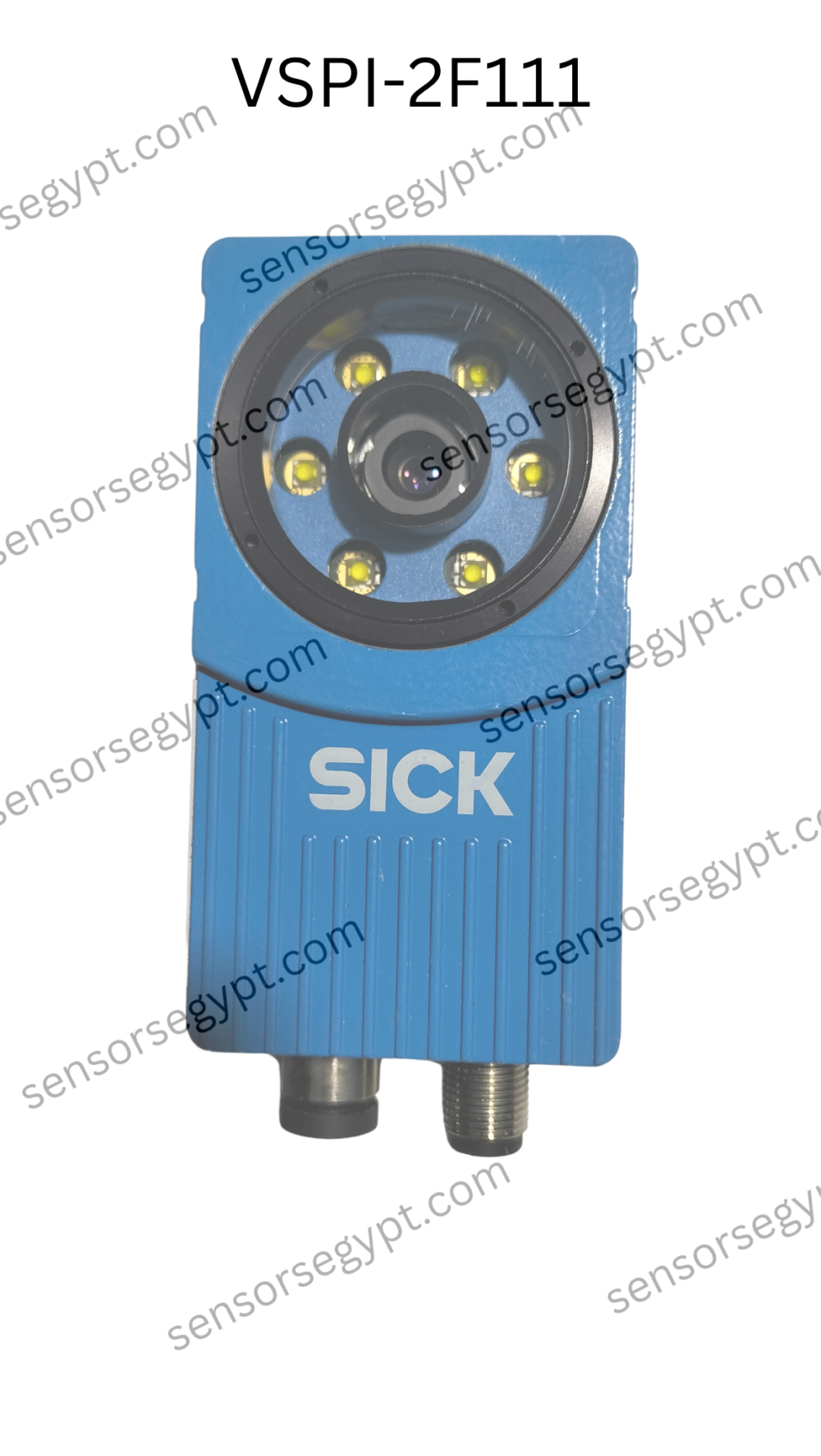

Product category Configurable
Toolkit Object locator
Contour
Pixel counter
Edge pixel counter
Sensor CMOS matrix sensor, grayscale values
Optical focus Adjustable focus (manually)
Working distance ≥ 50 mm
Operating distance with internal illumination
50 mm … 200 mm
Field of view of internal illumination 20 mm x 20 mm … 72 mm x 72 mm
Illumination Integrated
Illumination color White,
LED class Risk group 1 (low risk, IEC62471 : 2006)
Spectral range Approx. 400 nm … 750 nm
Offline support Emulator
Lens S-mount
Optical format 1/3″
Focal length 6 mm
Task Detecting – Standard objects
Measuring – Dimension, contour and volume
Measuring – Number
Identifying – OCR
Identifying – Pattern
Determining position – 2D position determination
Mechanics/electronics

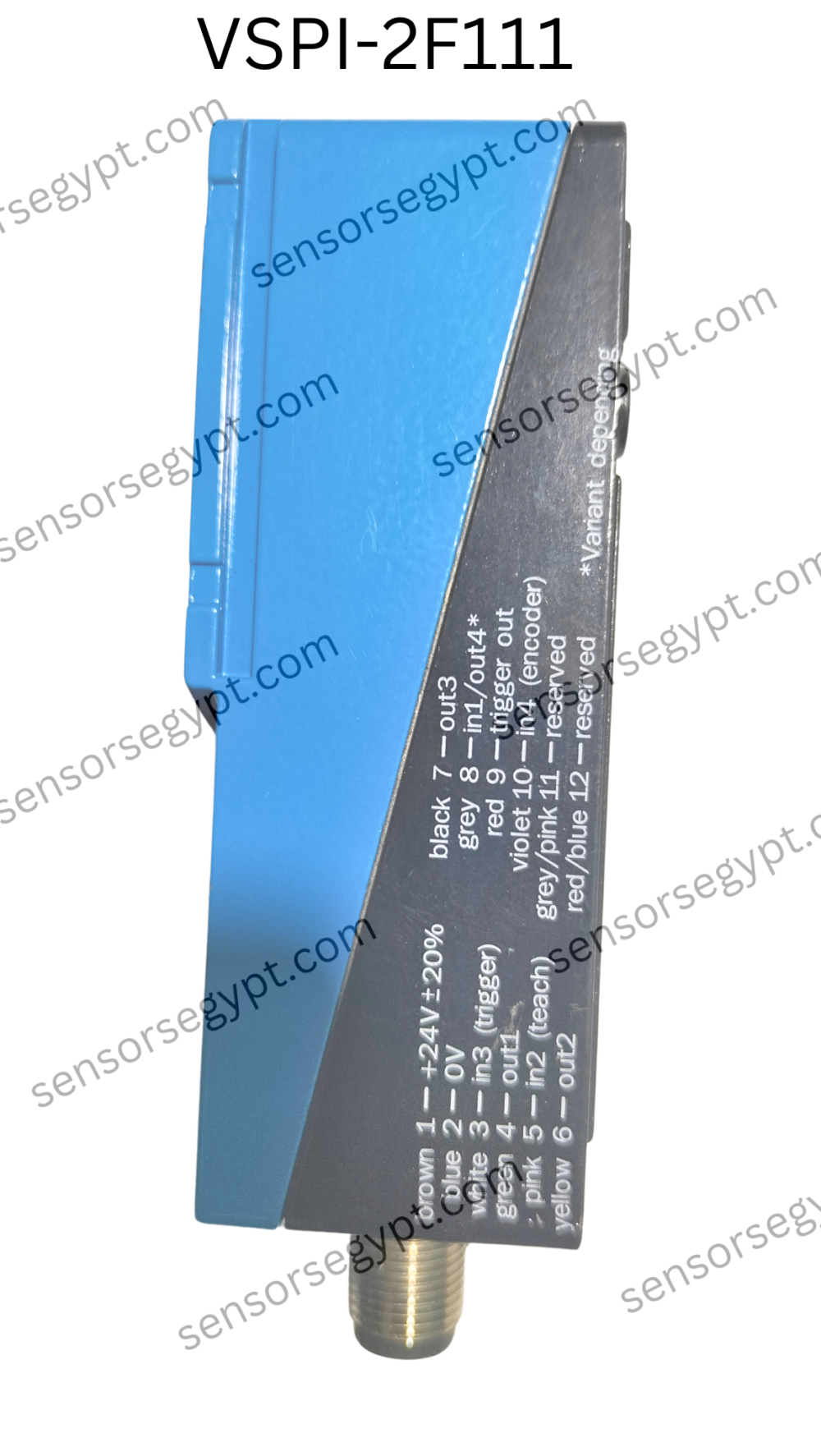

Connection type M12, 12-pin male connector
M12, 4-pin female connector
1) With front window mounted

Supply voltage 24 V DC, ± 20 %
Ripple < 5 Vpp
Current consumption < 450 mA, without output load
Enclosure rating IP67 1)
Housing material Aluminum
Window material PMMA
Weight 350 g
Dimensions (L x W x H) 100 mm x 53 mm x 38 mm
1) With front window mounted.
Performance
Sensor resolution 384 px x 384 px
Scan/frame rate 40 fps 1)
Number of inspections 32
Reference images 16 objects
1) Max. 250 fps.

Ethernet ✔, TCP/IP
Data transmission rate 100 Mbit/s
Operator interfaces Inspector Viewer
Configuration software SOPAS ET
Data storage and retrieval Log for 30 images, record images on PC
Digital input 4 inputs (24 V)
Configurable inputs External trigger, encoder input, External teach, reference object selection
Digital output 3 digital outputs, 24 V (B-type)
Configurable outputs Output by logical expressions
Output current ≤ 100 mA
Standard outputs No object detected, Everything OK, Detail error
Maximum encoder frequency 40 kHz
External illumination 5 V TTL
I/O box extension 4 inputs for object selection, 16 outputs
Ambient data
Shock load EN 60068-2-27
Vibration load IEC 60068-2-6
Ambient operating temperature 0 °C … +45 °C 1)
Storage temperature –20 °C … +70 °C 1)
1) Relative humidity: 35% … 85%, 95% in storage.
