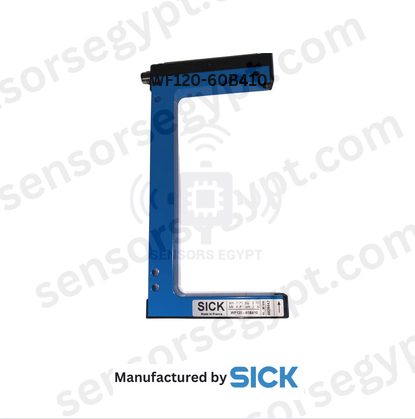

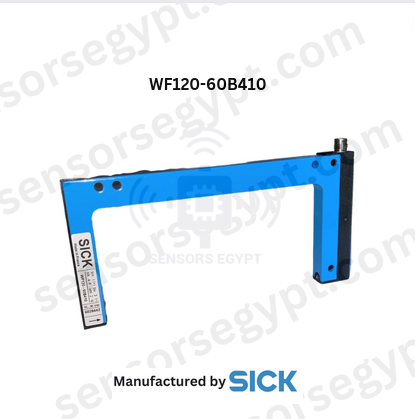

Functional principle Optical detection principle Dimensions (W x H x D) 10 mm x 150 mm x 57 mm Housing design Fork shaped Fork width 120 mm Fork depth 59 mm Minimum detectable object (MDO) 0.2 mm Label detection ✔ Light source LED, infrared, Infrared light Wave length 850 nm Adjustment Plus/minus button (Sensitivity, light/dark switching, key lock) Teach-in mode — Output function Light/darkswitching, selectable via button
-
Mechanics/electronics
Supply voltage 10 V DC … 30 V DC 1) Ripple < 10 % 2) Current consumption 40 mA Switching frequency 10 kHz 3) Response time 100 µs Stability of response time ± 20 µs Jitter 40 µs Switching output PNP/NPN Switching output (voltage) PNP: HIGH = UV ≤ 2 V / LOW approx. 0 V
NPN: HIGH = approx. UV / LOW ≤ 2 V
Switching mode Light/dark switching Output current Imax. 100 mA Initialization time 100 ms Connection type Male connector M8, 4-pin Protection class III 4) Circuit protection UV connections, reverse polarity protected
Output Q short-circuit protected
Interference pulse suppression
Enclosure rating IP65 Weight Approx. 36 g … 160 g 5) Housing material Metal, Aluminum - 1) Limit values, reverse-polarity protected, operation in short-circuit protected network: max. 8 A.
- 2) May not exceed or fall below Uv tolerances.
- 3) With light/dark ratio 1:1.
- 4) Reference voltage DC 50 V.
- 5) Depending on fork width.
-
Ambient data
Ambient operating temperature –20 °C … +60 °C 1) Ambient temperature, storage –30 °C … +80 °C Ambient light immunity ≤ 10,000 lx Shock load According to EN 60068-2-27 UL File No. NRKH.E191603 Datasheet: view
