Features
-
Sensor/ detection principle Photoelectric retro-reflective sensor Dimensions (W x H x D) 15 mm x 49 mm x 41.5 mm Housing design (light emission) Rectangular Sensing range max. 0 m … 4 m 1) Sensing range 0 m … 3.5 m 1) Type of light Visible red light Light source LED Adjustment Potentiometer -
Mechanics/electronics
-
Supply voltage 10 V DC … 30 V DC Ripple ≤ 5 Vpp Power consumption 30 mA 1) Switching mode Light/dark switching 2) Response time ≤ 330 µs 3) Connection type Male connector M12, 5-pin Housing material Metal, Zinc diecast Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –40 °C … +60 °C Ambient storage temperature –40 °C … +75 °C -
Datasheet : view
Sale!

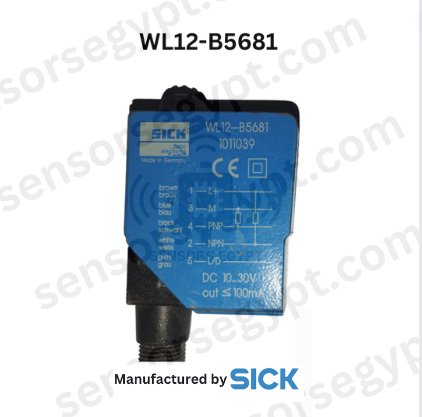

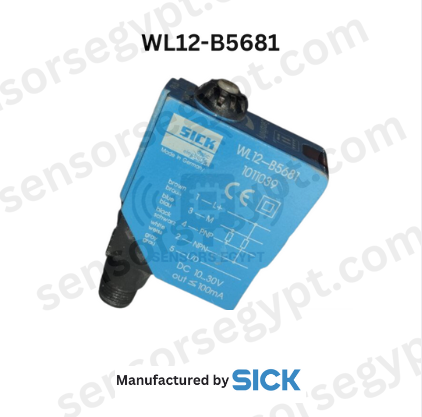

SICK WL12-B5681 PHOTOELECTRIC SENSOR
Original price was: EGP2,800.00.EGP2,400.00Current price is: EGP2,400.00.
