Features

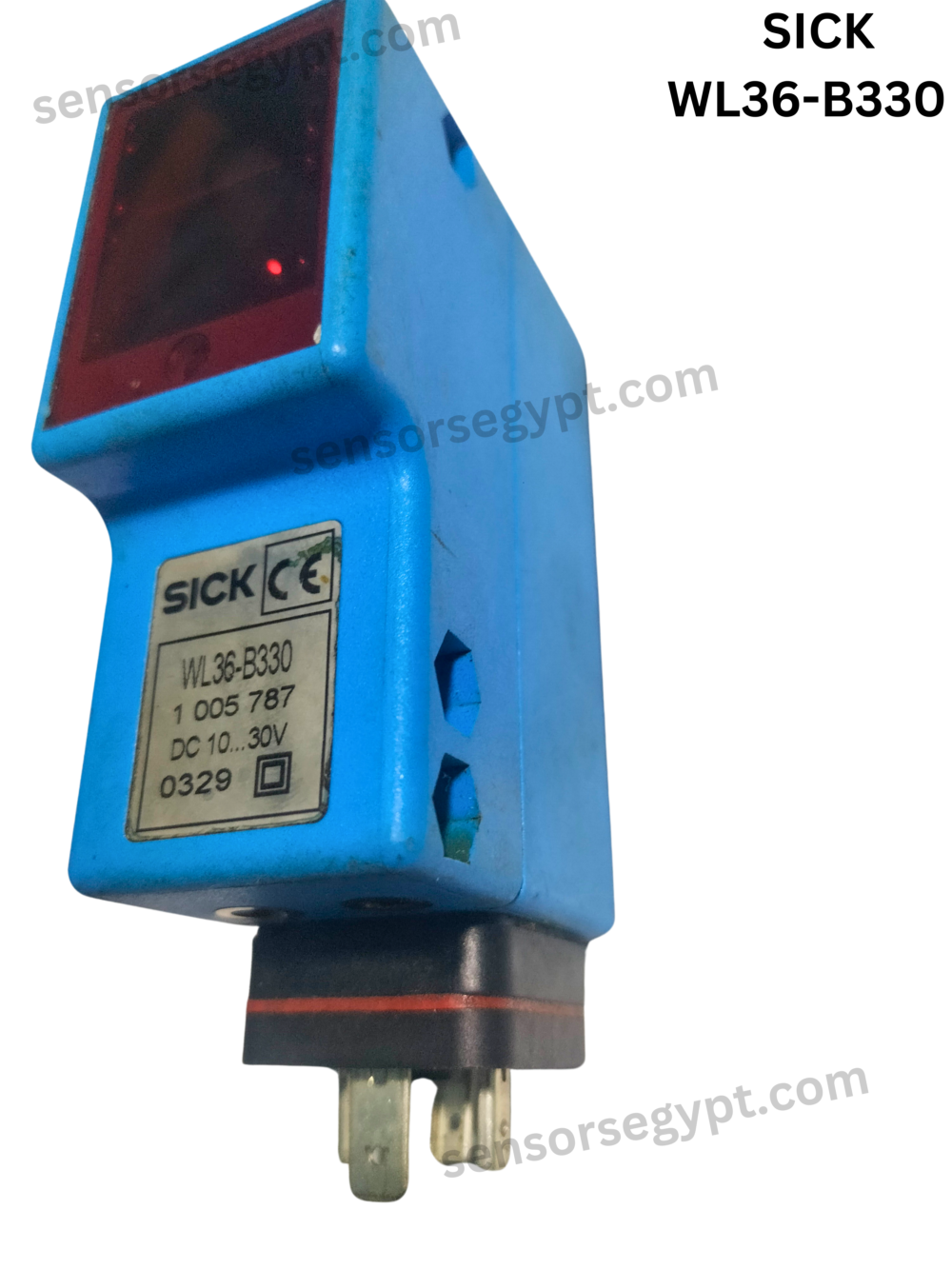

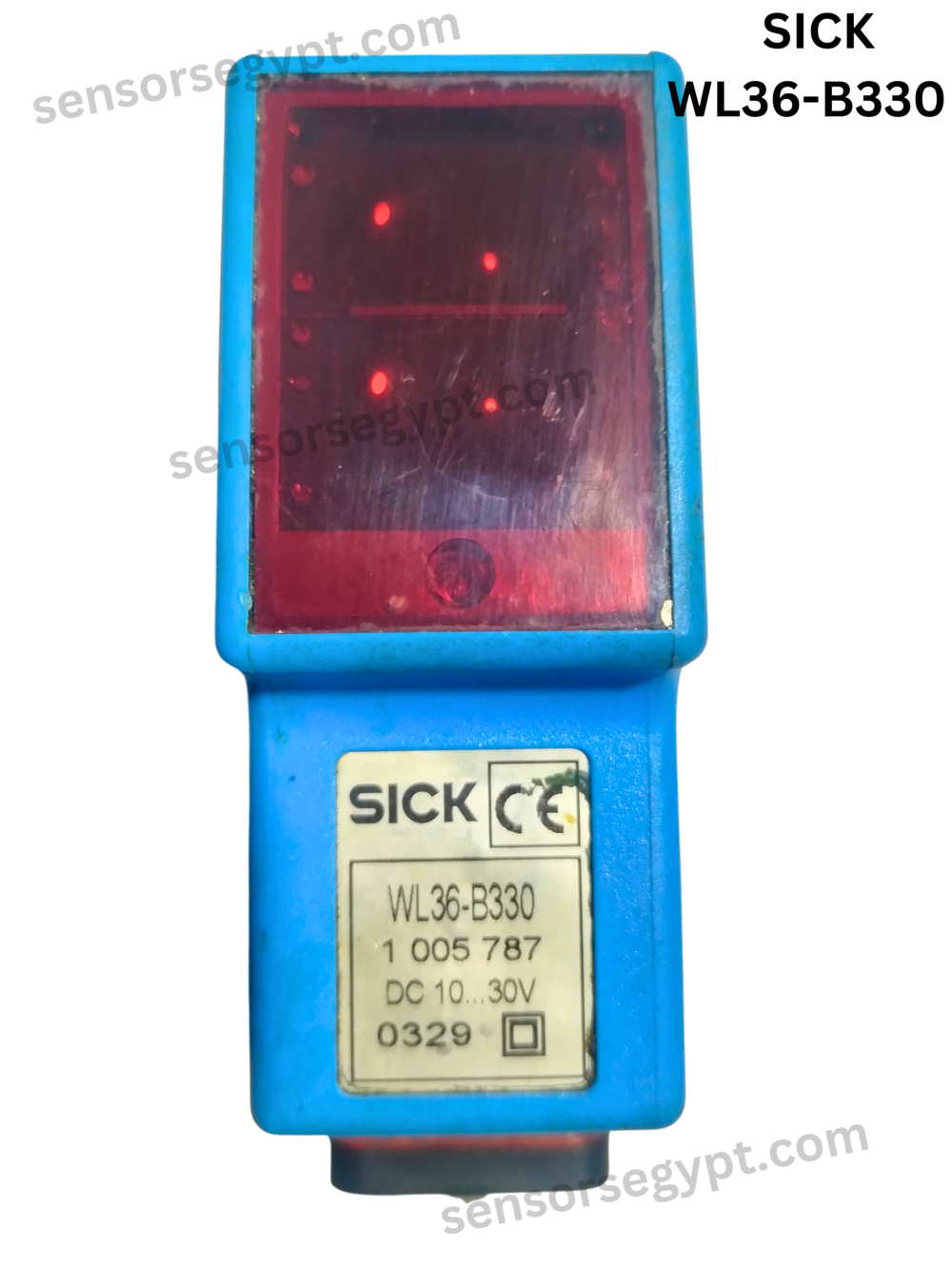

Functional principle Photoelectric retro-reflective sensor
Dimensions (W x H x D) 36 mm x 85 mm x 72 mm
Housing design (light emission) Rectangular
Sensing range max. 0.1 m … 22 m 1)
Sensing range 0.1 m … 15 m 1)
Type of light Visible red light
Light source LED
Adjustment Potentiometer
1) Reflector PL80A.
Mechanics/electronics
Supply voltage 10 V DC … 30 V DC
Ripple < 5 Vpp
Current consumption 40 mA 1)
Switching mode Light/dark switching
Response time ≤ 1.25 ms 2)
Connection type Q3, 3-pin, DC
Housing material Plastic, Glassfibre reinforced plastic
Optics material Plastic, PMMA
Enclosure rating IP65
Ambient operating temperature –40 °C … +55 °C
Ambient temperature, storage –40 °C … +70 °C
