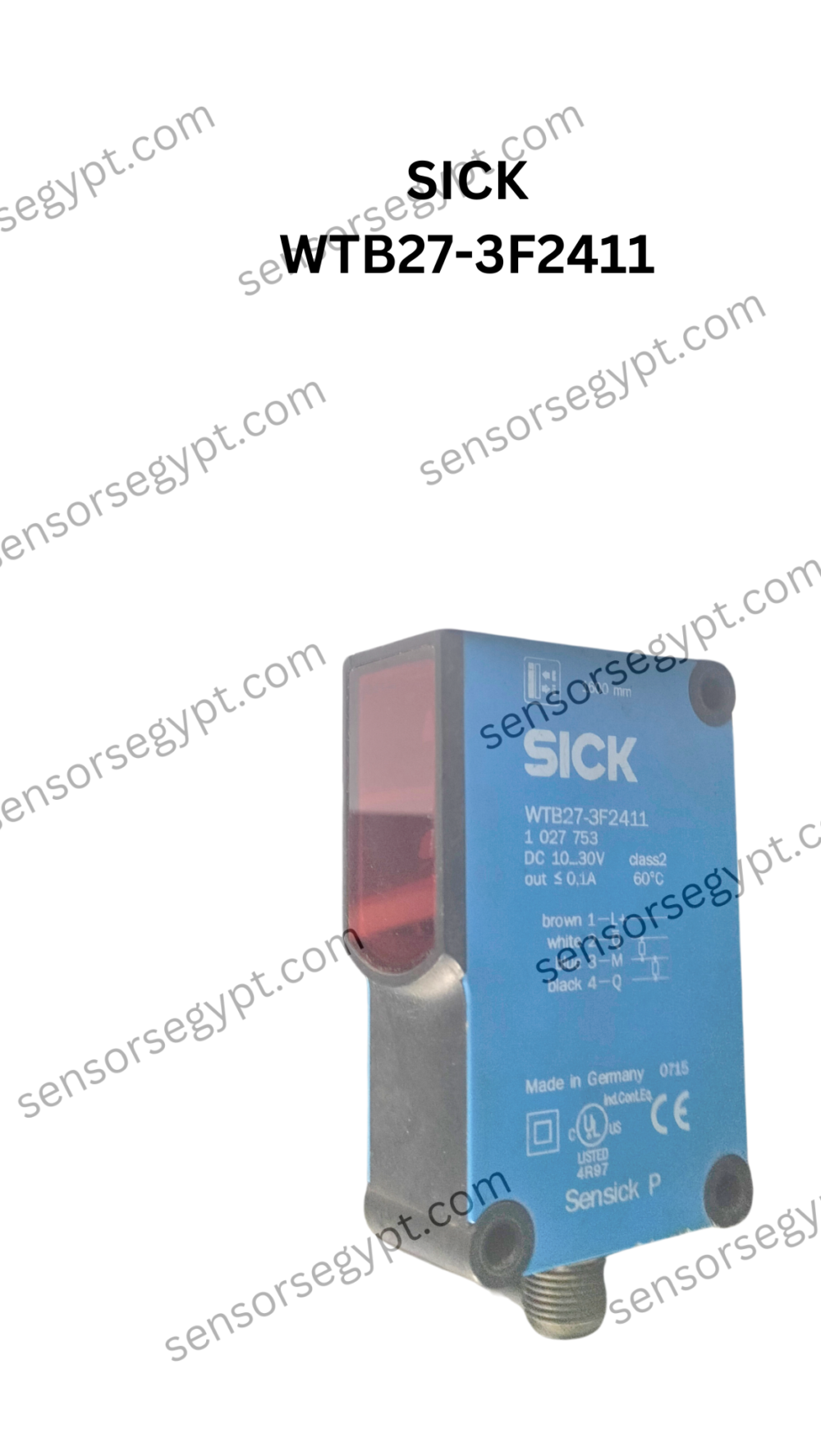

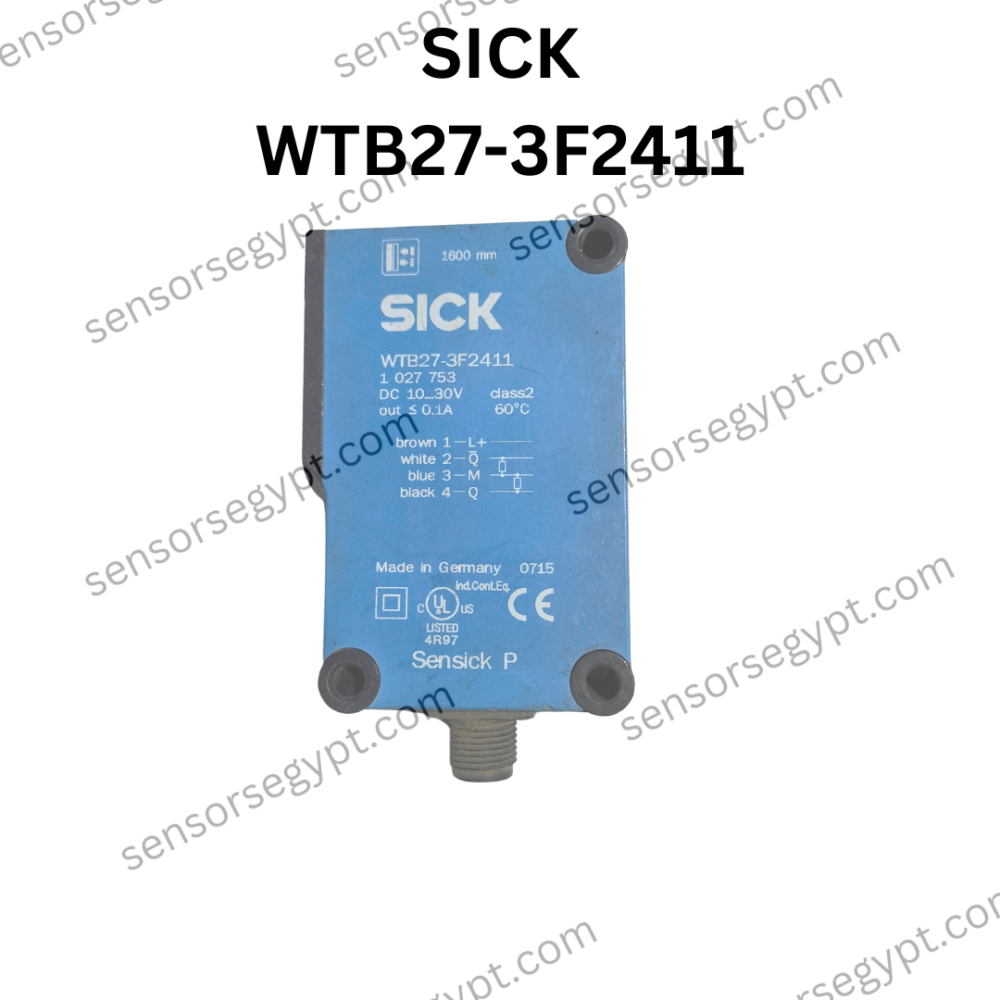

Features
Functional principle Photoelectric proximity sensor
Functional principle detail Background suppression
Dimensions (W x H x D) 24.6 mm x 80.6 mm x 54 mm
Housing design (light emission) Rectangular
Sensing range max. 30 mm … 1,600 mm 1)
Sensing range 100 mm … 1,600 mm
Type of light Infrared light
Light source LED 2)
Light spot size (distance) Ø 25 mm (800 mm)
Wave length 880 nm
Adjustment Potentiometer
1) Object with 90% remission (based on standard white, DIN 5033).
2) Average service life: 100,000 h at TU = +25 °C.
Mechanics/electronics
Supply voltage UB 10 V DC … 30 V DC 1)
1) Limit values when operated in short-circuit protected network: max. 8 A.
2) May not fall below or exceed UV tolerances.
3) Without load.
4) Signal transit time with resistive load.
5) With light/dark ratio 1:1.
6) A = VS connections reverse-polarity protected.
7) B = inputs and output reverse-polarity protected.
8) C = interference suppression.
9) Reference voltage: 50 V DC.

Ripple < 5 Vpp
2)
Current consumption 40 mA 3)
Switching output PNP
Output function Complementary
Switching mode Light/dark switching
Signal voltage PNP HIGH/LOW Approx. VS – 2.5 V / 0 V
Output current Imax. ≤ 100 mA
Response time ≤ 1.5 ms 4)
Switching frequency 350 Hz 5)
Time functions Switch-on delayoff delayswitch on delay and time delay off
Delay time Adjustable via time delay selector switch, 0.02 s, 0.5 s … 0.5 s, 10 s
Connection type Male connector M12, 4-pin
Circuit protection A 6)
B 7)
C 8)
Protection class II 9)
Weight 100 g
Housing material Plastic, ABS
Optics material Plastic, PMMA
Enclosure rating IP69K
Ambient operating temperature –40 °C … +60 °C
Ambient temperature, storage –40 °C … +75 °C
UL File No. NRKH.E181493 & NRKH7.E181493
1) Limit values when operated in short-circuit protected network: max. 8 A.
2) May not fall below or exceed UV tolerances.
3) Without load.
4) Signal transit time with resistive load.
5) With light/dark ratio 1:1.
6) A = VS connections reverse-polarity protected.
7) B = inputs and output reverse-polarity prote
