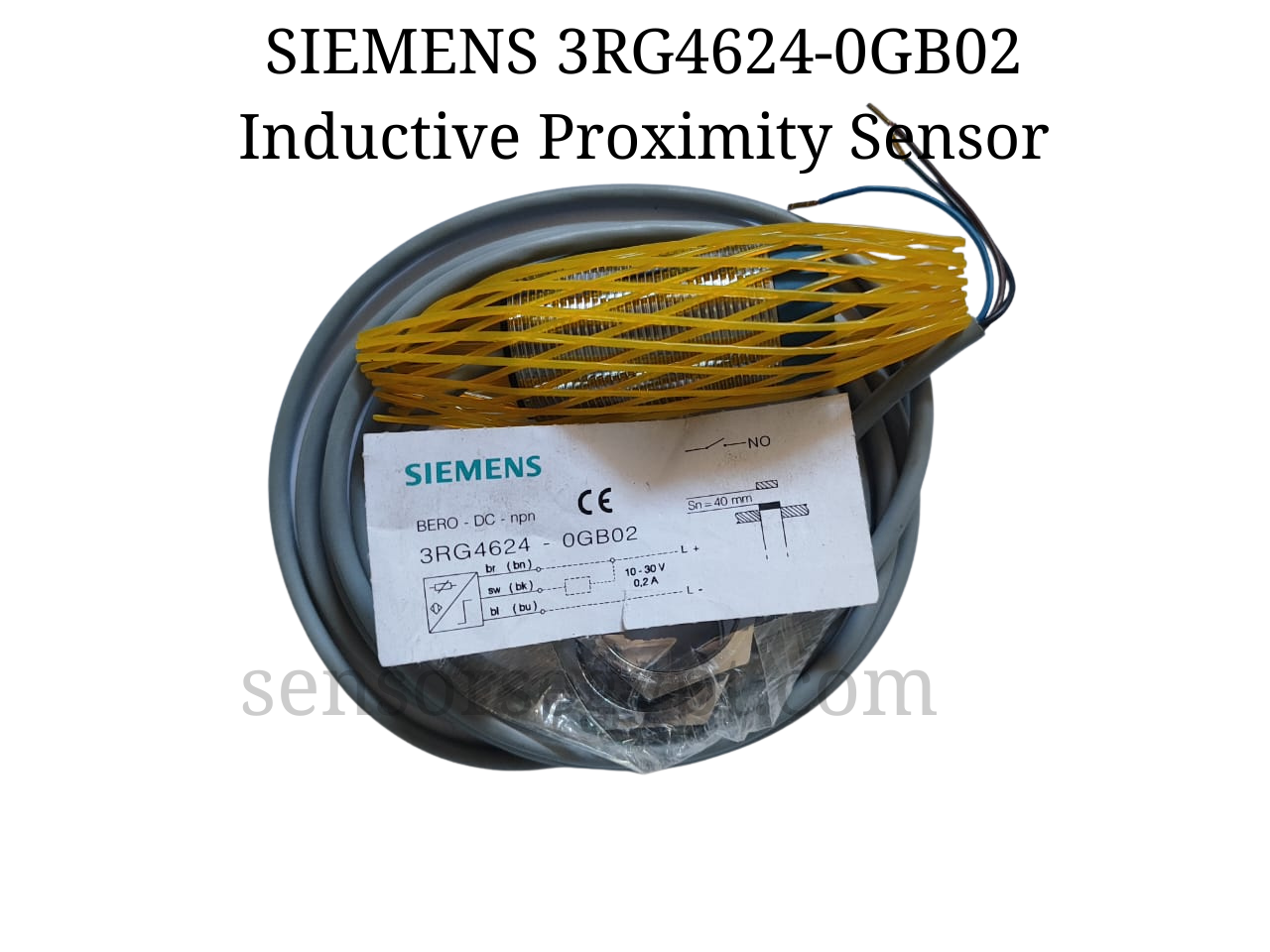

SIEMENS BERO Inductive Proximity Sensor



BERO Type: DC – npn

Model: 3RG4624-0GB02

---

1. General Description



The Siemens 3RG4624-0GB02 is a rectangular-style inductive proximity sensor from the BERO family. It is designed for the non-contact detection of metallic objects in industrial automation applications.

This model is a non-flush mountable (unshielded) sensor, which provides an exceptionally long sensing distance of 40 mm. It operates on a standard DC supply and provides an NPN Normally Open (NO) output.

Key Features 🎯



• Long Sensing Range: Sn = 40 mm

• Non-Flush Mounting: Unshielded design for maximum sensing distance.

• Standard NPN Output: Provides a 3-wire, NPN Normally Open (sinking) output.

• Wide Voltage Range: Operates on any DC voltage from 10 to 30 V.

• Robust Housing: Durable rectangular housing for secure mounting.

---

2. Technical Specifications



Electrical Data



Parameter	Value
Operating Voltage (L+)	10 … 30 VDC
Output Type	NPN (Sinking)
Output Function	NO (Normally Open)
Max. Load Current	0.2 A (200 mA)
Protection	Reverse polarity and short-circuit protection (Typical)

Performance & Mechanical Data



Parameter	Value
Sensing Distance (Sn)	40 mm
Mounting	Non-flush (Unshielded)
Housing Style	Rectangular
Connection	Pre-cabled

---

3. Wiring



The label clearly indicates the wiring for a standard 3-wire NPN NO sensor:

• br (bn) – Brown: L+ (Connect to 10 – 30 VDC)

• bl (bu) – Blue: L- (Connect to 0V / GND)

• sw (bk) – Black: A (NPN Output Signal)
